MikroTik Routers and Wireless - Products: wAP LR8G kit

A compact, weatherproof outdoor gateway for LoRa® technology. The updated 868MHz LoRa® module delivers enhanced Rx sensitivity, extending your range and improving reliability—even in rough conditions. This versatile device also includes:

The Things Network

Our products for LoRa® are ready to work with “The Things Network” - the famous open source infrastructure that provides free LoRa® network coverage and has tons of apps for your needs. With the help of “The Things Network” you can get started with the Internet-of-things within a day. And it is easily upgradable to enterprise-grade network “The Things Industries”.

The setup is so easy - anyone can learn it. No need to reinvent the wheel, join “The Things Network” to save time and energy with smart solutions!

Specifications

Details
Product code	RBwAPR-2nD&R11e-LR8G
Architecture	MIPSBE
CPU	QCA9531
CPU core count	1
CPU nominal frequency	600 MHz
RouterOS license	4
Operating System	RouterOS v7
Size of RAM	64 MB
Storage size	16 MB
Storage type	NAND
MTBF	Approximately 200'000 hours at 25C
Tested ambient temperature	-40°C to 60°C
Suggested price	$149.00

Powering

Details
Number of DC inputs	3 (DC jack, PoE-IN, Automotive)
DC jack input Voltage	9-28 V
Automotive input Voltage	12-30 V
Max power consumption	7 W
Cooling type	Passive
PoE in	Passive PoE
PoE in input Voltage	9-28 V

Wireless specifications

Details
Wireless 2.4 GHz Max data rate	300 Mbit/s
Wireless 2.4 GHz number of chains	2
Wireless 2.4 GHz standards	802.11b/g/n
Antenna gain dBi for 2.4 GHz	2
Wireless 2.4 GHz chip model	QCA9531
Wireless 2.4 GHz generation	Wi-Fi 4

Ethernet

Details
10/100 Ethernet ports	1

Peripherals

Details
Number of SIM slots	1 Modem (Mini SIM)
MiniPCI-e slots	1

Other

Details
PCB temperature monitor	Yes
Voltage Monitor	Yes
GPS RF connector type	uUFL

Certification & Approvals

Details
Certification	CE, EAC, ROHS
IP	54

Wireless specifications

2.4 GHz	Transmit (dBm)	Receive Sensitivity
1MBit/s	22	-96
11MBit/s	22	-89
6MBit/s	20	-93
54MBit/s	18	-74
MCS0	20	-93
MCS7	16	-71

Included parts

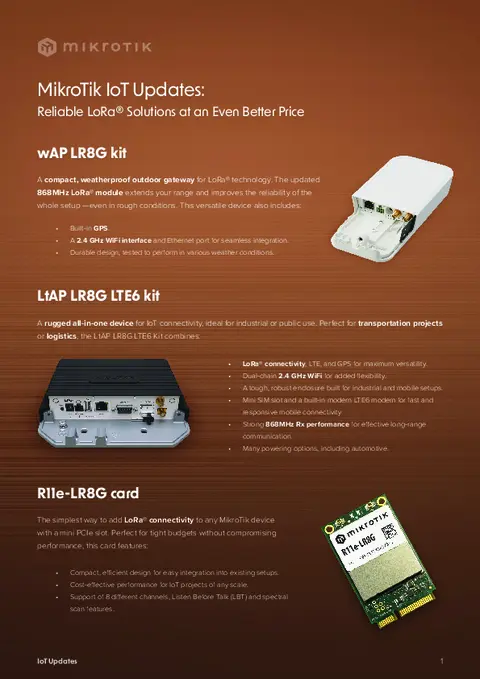

BrochureOpen

User manualOpen

RouterOS current release

Download

Safety and regulatory informationOpen

RouterOS software manualOpen

Declaration of conformityOpen (CE)

High resolution images

Ethernet test results

RBwAPR-2nD&R11e-LR8G		QCA9531 100M one port test
Mode	Configuration	1518 byte		512 byte		64 byte
Mode	Configuration	kpps	Mbps	kpps	Mbps	kpps	Mbps
Bridging	none (fast path)	8.1	98.4	23.5	96.3	173.6	88.9
Bridging	25 bridge filter rules	8.1	98.4	23.5	96.3	70.9	36.3
Routing	none (fast path)	8.1	98.4	23.5	96.3	160.8	82.3
Routing	25 simple queues	8.1	98.4	23.5	96.3	90.8	46.5
Routing	25 ip filter rules	8.1	98.4	23.5	96.3	43.2	22.1

All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..
