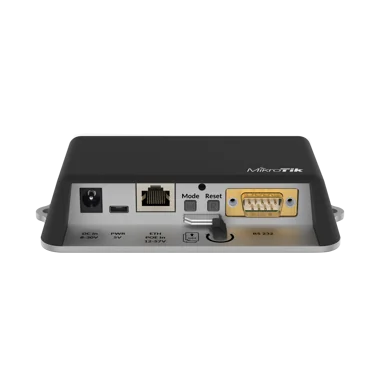

    LtAP mini 4G kit Small weatherproof wireless access point with LTE modem for bands 3, 7, 20, 31, 41n, 42 and 43, two SIM slots and GPS

    The LtAP mini 4G kit is a small weatherproof wireless access point with a built in cellular modem that supports 4G (LTE) connectivity on LTE FDD bands 3 (1800MHz), 7 (2600MHz), 20 (800MHz) and 31 (450MHz), as well as LTE TDD bands 41n (2500MHz), 42 (3500MHz) and 43 (3700MHz).

    Connect to the LtAP mini’s built-in 802.11b/g/n wireless and access the LTE network from your phone or any other wireless device. The LtAP mini 4G kit also has one 10/100 Ethernet LAN port for your wired devices. The RS232 serial port gives you console access for debugging.

    LtAP mini 4G kit has a special enclosure with a wall mounting kit, two SIM slots to alternate between cellular providers, and integrated GPS support, making this a perfect device for use in moving vehicles like cars, buses or trains. To use GPS an external GPS antenna is required, order separately (product code GPSANT).

    The LTE card is connected to two internal antennas with u.FL connectors, so if you want, you can unplug the connectors and add your own external LTE antenna for better coverage. The unit has several powering options: 9-30 V PoE-in by Ethernet port, DC jack and microUSB.

    Use the built in GPS module to track the location of your vehicle in real time, we have even provided a simple tracking application example in the RouterOS documentation, to help you start development of your platform.

     Send purchase questions

    Specifications

    Details
    Product code RB912R-2nD-LTm&R11e-4G
    Architecture MIPSBE
    CPU QCA9531
    CPU core count 1
    CPU nominal frequency 650 MHz
    Dimensions 139 x 77 x 28,5 mm
    License level 4
    Operating System RouterOS
    Size of RAM 64 MB
    Storage size 16 MB
    Storage type FLASH
    Tested ambient temperature -40°C to 70°C
    Suggested price $139.00

    Powering

    Details
    MicroUSB input Voltage 5-5 V
    PoE in 802.3af/at
    PoE in input Voltage 12-57 V
    Number of DC inputs 3 (DC jack, PoE-IN, MicroUSB)
    DC jack input Voltage 8-30 V
    Max power consumption 9 W

    Mobile

    Details
    LTE Category 4 (150Mbps Downlink, 50Mbps Uplink)
    LTE FDD bands 3 (1800MHz) / 7 (2600MHz) / 20 (800MHz) / 31 (450MHz)
    LTE TDD bands 41n (2500MHz) / 42 (3500MHz) / 43 (3700MHz)

    Wireless

    Details
    Wireless 2.4 GHz Max data rate 300 Mbit/s
    Wireless 2.4 GHz number of chains 2
    Wireless 2.4 GHz standards 802.11b/g/n
    Antenna gain dBi for 2.4 GHz 1.5
    Wireless 2.4 GHz chip model QCA9531
    Wireless 2.4 GHz generation Wi-Fi 4

    Ethernet

    Details
    10/100 Ethernet ports 1

    Peripherals

    Details
    Number of SIM slots 2 Modem (Mini SIM)
    MiniPCI-e slots 1
    Serial port RS232
    Number of USB ports 1
    USB Power Reset Yes
    USB slot type microUSB type AB
    Max USB current (A) 1

    Other

    Details
    Mode button Yes

    Wireless specifications

    2.4 GHzTransmit (dBm)Receive Sensitivity
    1MBit/s22-96
    11MBit/s22-89
    6MBit/s20-93
    54MBit/s18-74
    MCS020-93
    MCS716-71

    Included parts

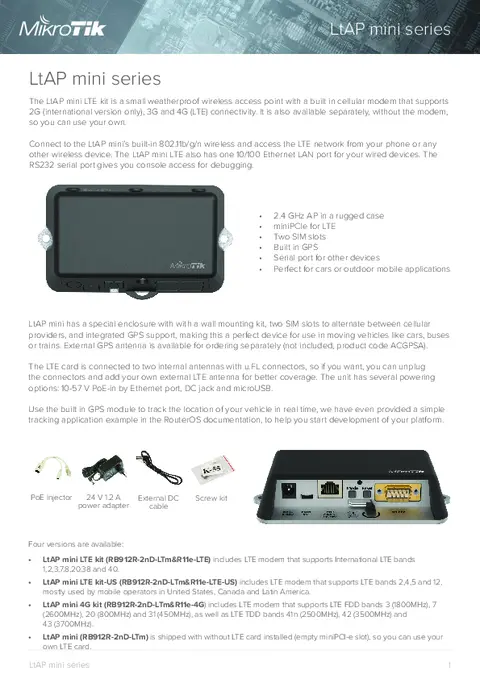

    BrochureOpen
    Quick GuideOpen
    RouterOS current releaseDownload
    Accessory guideOpen
    RouterOS software manualOpen
    Declaration of conformityOpen (CE)
    Declaration of conformityOpen (FCC - 1)
    Declaration of conformityOpen (FCC - 2)

    High resolution images

    Ethernet test results

    RB912R-2nD-LTm&R11e-4GQCA9531 100M one port test
    ModeConfiguration1518 byte512 byte64 byte
    kppsMbpskppsMbpskppsMbps
    Bridgingnone (fast path)8.198.423.596.3173.688.9
    Bridging25 bridge filter rules8.198.423.596.370.936.3
    Routingnone (fast path)8.198.423.596.3160.882.3
    Routing25 simple queues8.198.423.596.390.846.5
    Routing25 ip filter rules8.198.423.596.343.222.1
    1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
    2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
    3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
