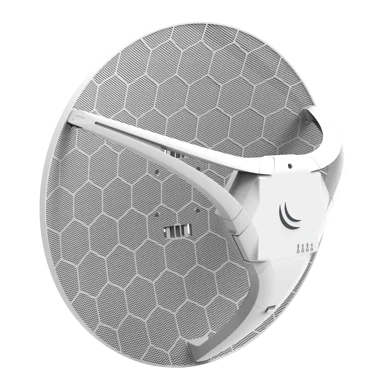

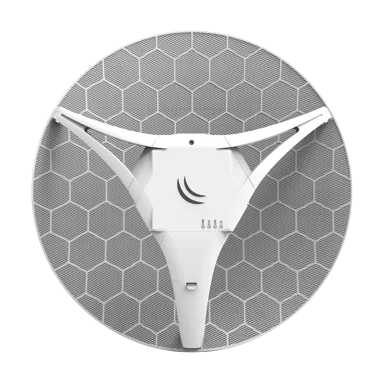

LHG 4G kit
LHG 4G/LTE High gain 21dBi CPE for very remote areas, LTE modem for bands 3, 7, 20, 31, 41n, 42 and 43
The LHG 4G kit is a device for remote locations that are within cellular network coverage. Mount it outdoors, on a pole, mast or any high enough structure, and connect even where cell phones can’t. Due to it’s large sized high gain 21dBi antenna, the device is capable to connect to cell towers in extreme rural locations, giving you the ability to provide last mile internet access where nothing else is available.
The unit is equipped with one Ethernet port, has a built in high quality Category 4 modem for speeds of up to 150 Mbit/s downlink and 50 Mbit/s uplink.
RBLHGR&R11e-4G includes LTE modem that supports LTE FDD bands 3 (1800MHz), 7 (2600MHz), 20 (800MHz) and 31 (450MHz), as well as LTE TDD bands 41n (2500MHz), 42 (3500MHz) and 43 (3700MHz).
Specification
- Product code RBLHGR&R11e-4G
- Suggested price $169.00
- Architecture MIPSBE
- CPU QCA9531
- CPU core count 1
- CPU nominal frequency 650 MHz
- Dimensions 391 x 391 x 227 mm
- RouterOS license 3
- Operating System RouterOS
- Size of RAM 64 MB
- Storage size 16 MB
- Storage type FLASH
- MTBF Approximately 200'000 hours at 25C
- Tested ambient temperature -40°C to 60°C
- Number of DC inputs 1 (PoE-IN)
- Max power consumption 5 W
- PoE in 802.3af/at
- Cooling type Passive
- PoE in input Voltage 12-57 V
- LTE Category 4 (150Mbps Downlink, 50Mbps Uplink)
-
LTE FDD bands
3 (1800MHz)
7 (2600MHz)
20 (800MHz)
31 (450MHz)
-
LTE TDD bands
41n (2500MHz)
42 (3500MHz)
43 (3700MHz)
- TAC 35914709
- 10/100 Ethernet ports 1
- Number of SIM slots 1 Modem (Micro SIM)
- MiniPCI-e slots 1
- Mode button Yes
- Certification CE, EAC, ROHS
- IP IP54
| RBLHGR&R11e-4G | QCA9531 100M one port test | ||||||
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 8.1 | 98.4 | 23.5 | 96.3 | 173.6 | 88.9 |
| Bridging | 25 bridge filter rules | 8.1 | 98.4 | 23.5 | 96.3 | 70.9 | 36.3 |
| Routing | none (fast path) | 8.1 | 98.4 | 23.5 | 96.3 | 160.8 | 82.3 |
| Routing | 25 simple queues | 8.1 | 98.4 | 23.5 | 96.3 | 90.8 | 46.5 |
| Routing | 25 ip filter rules | 8.1 | 98.4 | 23.5 | 96.3 | 43.2 | 22.1 |
- All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
- Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
- Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
