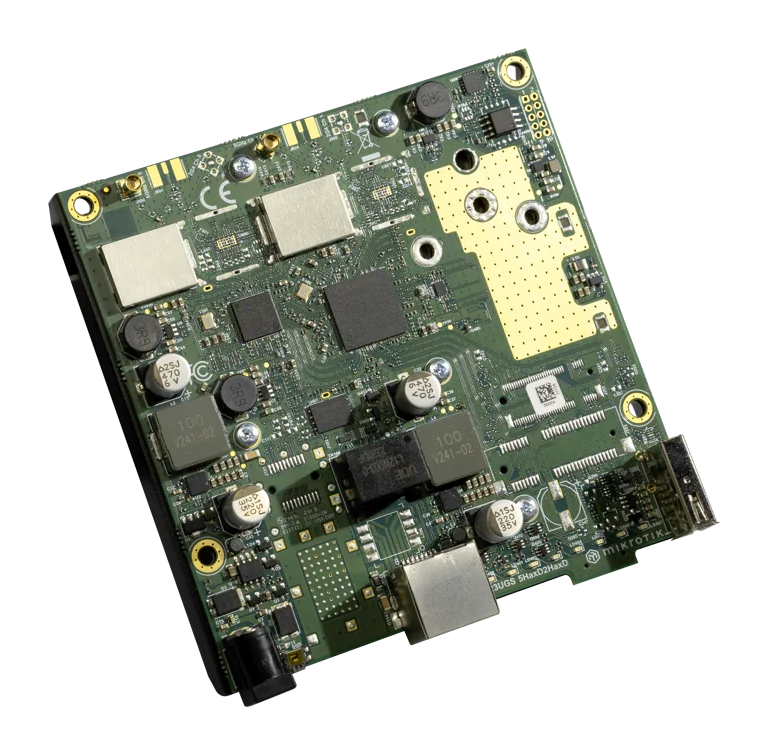

    L11UG-5HaxD Build your own custom outdoor 5 GHz CPE or AP with Wi-Fi 6, dual-core ARM CPU, PoE-in, Gigabit Ethernet and RouterOS v7! MMCX connectors allow creating versatile omnidirectional access points and powerful point-to-point links.

    Remember the thrill of crafting your custom solutions with our RouterBoard series? Get ready for even more DIY achievements: we’re refreshing the RB product line with Wi-Fi 6! Like the trusty RB911, our brand new L11UG-5HaxD is going to be your best friend when it comes to building low-cost outdoor CPEs or APs! This tiny board features a modern Qualcomm Maple CPU based on the ARM architecture, 256 MB of RAM, a USB port for extra storage or other needs, and a Gigabit Ethernet port with PoE-in.

    The powerful Wi-Fi 6 radio with MMCX connectors enables further customization: add a HGO-antenna-OUT and you’ve got yourself an excellent omnidirectional AP… or try the mANT30 PA antenna to create a powerful long-range point-to-point link!

    You can integrate L11UG-5HaxD in a variety of setups, such as vending machines, ATM’s, ticket stations, and more, but for a standalone build you might want to order one of our aluminum cases. The same ones you would use for RB411, 911, 912 and 922, so they are reusable. You can save the planet and your wallet at the same time!

    If you’ve read this far, here’s a little bonus feature: we’ve kept the good old beeper for various alarms or creative outputs.

     Send purchase questions

    Specifications

    Details
    Product code L11UG-5HaxD
    Architecture ARM
    CPU IPQ-5010
    CPU core count 2
    CPU nominal frequency 800 MHz
    RouterOS license 4
    Operating System RouterOS v7
    Size of RAM 256 MB
    Storage size 128 MB
    Storage type NAND
    MTBF Approximately 100'000 hours at 25C
    Tested ambient temperature -40°C to 70°C
    Suggested price $79.00

    Powering

    Details
    Number of DC inputs 2 (DC jack, PoE-IN)
    DC jack input Voltage 12-28 V
    Max power consumption 15 W
    Max power consumption without attachments 6 W
    Cooling type Passive
    PoE in Passive PoE
    PoE in input Voltage 18-28 V

    Wireless specifications

    Details
    Wireless 5 GHz Max data rate 2400 Mbit/s
    Wireless 5 GHz number of chains 2
    Wireless 5 GHz standards 802.11a/n/ac/ax
    Wireless 5 GHz chip model QCN-6102
    Wireless 5 GHz generation Wi-Fi 6

    Ethernet

    Details
    10/100/1000 Ethernet ports 1

    Peripherals

    Details
    Number of USB ports 1
    USB Power Reset Yes
    USB slot type USB type A
    Max USB current (A) 1.5

    Other

    Details
    PCB temperature monitor Yes
    Voltage Monitor Yes
    Beeper Yes

    Certification & Approvals

    Details
    Certification CE, FCC, IC, EAC, ROHS

    Wireless specifications

    5 GHzTransmit (dBm)Receive Sensitivity
    6MBit/s28-96
    54MBit/s26-80
    MCS028-96
    MCS725-75
    MCS923-70
    MCS1120-67
    BrochureOpen
    User manualOpen
    RouterOS current release
    FCC Grant of Certification (5GHz)Open
    Block DiagramOpen
    Safety and regulatory informationOpen
    DimensionsOpen
    RouterOS software manualOpen
    Declaration of conformityOpen (CE)

    High resolution images

    #
    #
    #

    Ethernet test results

    L11UG-5HaxDIPQ-5010 one port test
    ModeConfiguration1518 byte512 byte64 byte
    kppsMbpskppsMbpskppsMbps
    Bridgingnone (fast path)81.1984.6233.3955.6689.2374.9
    Bridging25 bridge filter rules81.1984.6201.6825.6204.8111.4
    Routingnone (fast path)81.3987.4219.1897.3398216.5
    Routing25 simple queues81.3987.4178.6731.418198.5
    Routing25 ip filter rules81.3987.4123.4505.5122.666.7
    1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
    2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
    3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

    The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..
