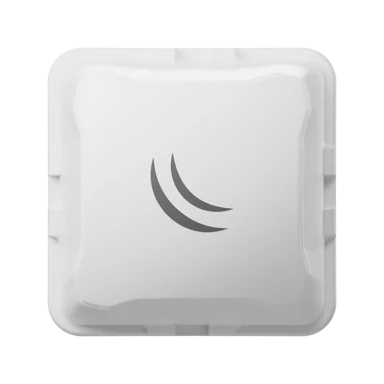

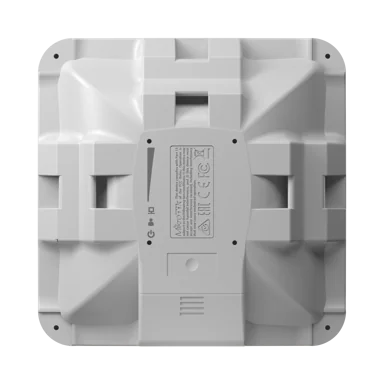

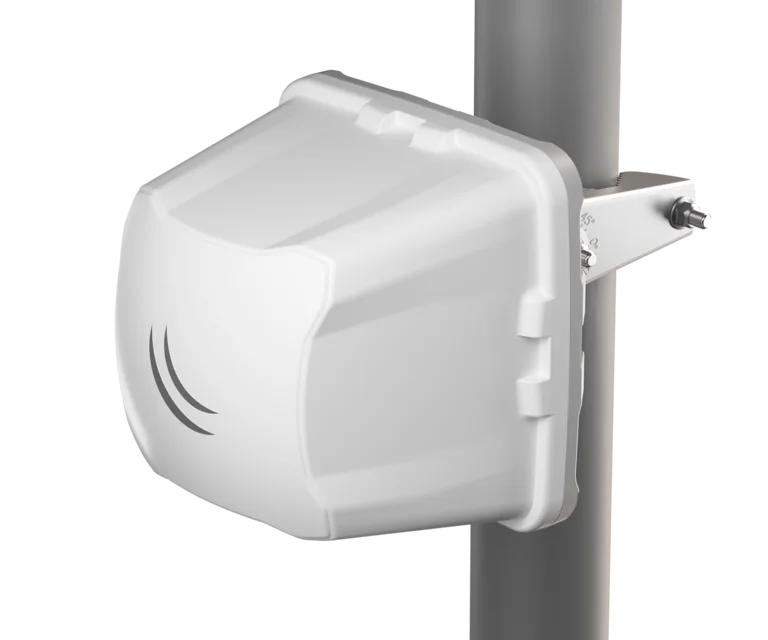

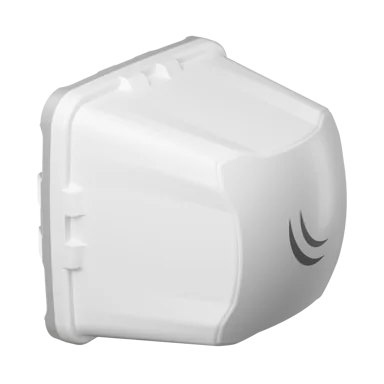

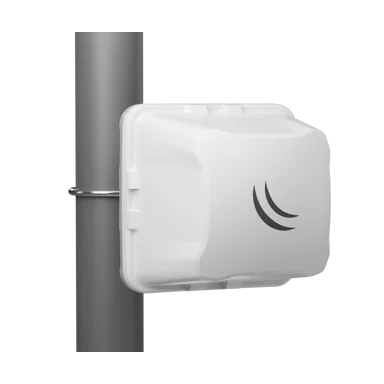

    Cube 60G ac A high-speed 60 GHz CPE with Gigabit Ethernet and a 5 GHz failover. The easy and affordable way of eliminating interference and downtime!

    Discontinued


    If you are managing networks in a large, busy area (like a park or a stadium), then you have probably experienced all kinds of problems – massive interference, signal loss during bad weather, etc. What if we told you that a single device can solve all these problems? The brand new Cube 60G ac is the simple solution you have been looking for!

    It can easily cover a distance of 800 meters and reach fiber-like speed. The 60 GHz frequency is unaffected by the crowded wireless spectrum, it offers high speed and capacity. Traditional 60 GHz devices, however, can have limited connectivity during bad weather. But not the Cube 60G ac! It features an automatic 5 GHz backup connection, so you don’t have to worry about any downtime. The Сube form-factor has been designed with function and durability in mind. And it attracts less unwanted attention due to its size and shape.


     Send purchase questions

    Specifications

    Details
    Product code CubeG-5ac60ad
    Architecture ARM 32bit
    CPU IPQ-4019
    CPU core count 4
    CPU nominal frequency 716 MHz
    Dimensions 130 x 130 x 132 mm
    RouterOS license 3
    Operating System RouterOS
    Size of RAM 256 MB
    Storage size 16 MB
    Storage type FLASH
    MTBF Approximately 200'000 hours at 25C
    Tested ambient temperature -40°C to 70°C
    IPsec hardware acceleration Yes
    Suggested price $135.00

    Powering

    Details
    Number of DC inputs 1 (PoE-IN)
    Max power consumption 9 W
    Max power consumption without attachments 9 W
    Cooling type Passive
    PoE in 802.3af/at
    PoE in input Voltage 12-57 V

    Wireless specifications

    Details
    Wireless 5 GHz Max data rate 433 Mbit/s
    Wireless 5 GHz number of chains 1
    Wireless 5 GHz standards 802.11a/n/ac
    Antenna gain dBi for 5 GHz 11.5
    Wireless 5 GHz chip model IPQ-4019
    Wireless 5 GHz generation Wi-Fi 5

    Ethernet

    Details
    10/100/1000 Ethernet ports 1

    Certification & Approvals

    Details
    Certification CE, FCC, IC, EAC, ROHS
    IP IP54

    Wireless specifications

    5 GHzTransmit (dBm)Receive Sensitivity
    6MBit/s22-93
    54MBit/s18-74
    MCS022-93
    MCS717-71
    MCS915-68

    Included parts

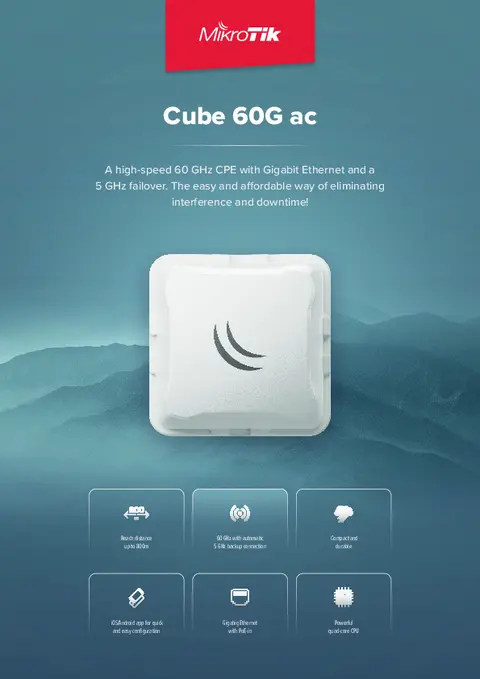

    BrochureOpen
    Quick GuideOpen
    User ManualOpen
    RouterOS current release
    Selection guide for PtMP linksOpen
    FCC Grant of Certification (60GHz)Open
    Selection guide for PtP linksOpen
    Block DiagramOpen
    RouterOS software manualOpen
    Declaration of conformityOpen (CE)
    FCC Grant of Certification (5GHz)Open

    High resolution images

    #
    #
    #
    #
    #

    Ethernet test results

    CubeG-5ac60adIPQ-4019 1G one port test
    ModeConfiguration1518 byte512 byte64 byte
    kppsMbpskppsMbpskppsMbps
    Bridgingnone (fast path)81,2986.1234,9962.21482,6759.1
    Bridging25 bridge filter rules81,2986.1227,7932.7231,9118.7
    Routingnone (fast path)81,2986.1235,1963.01421,8728.0
    Routing25 simple queues81,2986.1235,1963.0458,3234.6
    Routing25 ip filter rules81,2986.1234,9962.2236,8121.2
    1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
    2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
    3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

    IPsec test results

    CubeG-5ac60adIPQ-4018 IPsec throughput
    ModeConfiguration1400 byte512 byte64 byte
    kppsMbpskppsMbpskppsMbps
    Single tunnelAES-128-CBC + SHA137.9424.559241.761.631.5
    256 tunnelsAES-128-CBC + SHA136403.238.5157.739.820.4
    256 tunnelsAES-128-CBC + SHA25636403.238.5157.739.820.4
    256 tunnelsAES-256-CBC + SHA134.4385.337.9155.239.820.4
    256 tunnelsAES-256-CBC + SHA25634.4385.337.9155.239.820.4
    1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
    2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1400 byte packet sizes
    3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

    The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..
