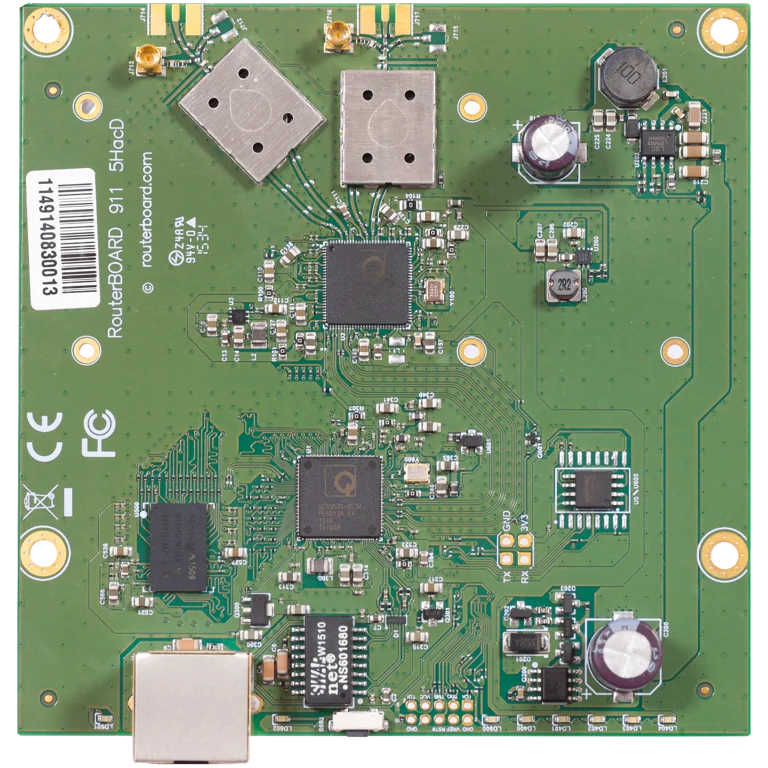

911 Lite5 ac

650Mhz CPU, 64MB RAM, 1xEthernet, onboard 5Ghz dual chain wireless with AC, RouterOS L3

Outdoors

PoE

Specification Find retailer

911 Lite5 ac

The 911 Lite5 ac is upgrade for our low-cost 911 Lite5 dual model.

It’s a small CPE type RouterBOARD wireless router with an integrated 5Ghz dual-chain wireless card, now with added 802.11ac support. It’s equipped with powerful 650MHz CPU and 64MB, great for building custom 5Ghz CPE or Backhaul units. Unit is equipped with 10/100Mbps Ethernet port.

We have two versions available.

RB911-5HacD-US (USA) is factory locked for 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed

RB911-5HacD (International) supports 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).

Specification

Specifications

Product code RB911-5HacD
Suggested price $53.00
Architecture MIPSBE
CPU QCA9531
CPU core count 1
CPU nominal frequency 650 MHz
Dimensions 113 x 89 mm
RouterOS license 3
Operating System RouterOS
Size of RAM 64 MB
Storage size 16 MB
Storage type FLASH
MTBF Approximately 100'000 hours at 25C
Tested ambient temperature -40°C to 70°C

Powering

Number of DC inputs 1 (PoE-IN)
Max power consumption 7 W
PoE in Passive PoE
Cooling type Passive
PoE in input Voltage 10-30 V

Wireless specifications

Wireless 5 GHz Max data rate 867 Mbit/s
Wireless 5 GHz Number of chains 2
Wireless 5 GHz standards 802.11a/n/ac
Wireless 5 GHz chip model QCA9892
Wireless 5 GHz generation Wi-Fi 5

Ethernet

10/100 Ethernet ports 1

Certification & Approvals

Certification CE, FCC, IC, EAC, ROHS
IP IP00

Note

The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase.

5 GHz

Transmit (dBm)

Receive Sensitivity

6MBit/s

-95

54MBit/s

-81

MCS0

-95

MCS7

-77

MCS9

-72

RB911-5HacD		QCA9531 100M one port test
Mode	Configuration	1518 byte		512 byte		64 byte
Mode	Configuration	kpps	Mbps	kpps	Mbps	kpps	Mbps
Bridging	none (fast path)	8.1	98.4	23.5	96.3	173.6	88.9
Bridging	25 bridge filter rules	8.1	98.4	23.5	96.3	70.9	36.3
Routing	none (fast path)	8.1	98.4	23.5	96.3	160.8	82.3
Routing	25 simple queues	8.1	98.4	23.5	96.3	90.8	46.5
Routing	25 ip filter rules	8.1	98.4	23.5	96.3	43.2	22.1

All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
