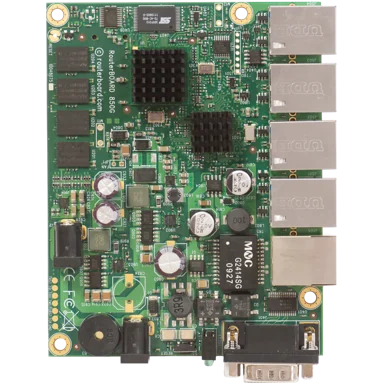

    RB850Gx2

    The RB850Gx2 is a five port Gigabit ethernet router. Comparing to the RB450G, the RB850Gx2 is much faster, with a dual core CPU, yet it still retains the same form factor, and will fit into the same enclosures.

    The device is powered by a 533MHz P1023 PPC CPU, and also includes a temperature sensor and voltage monitor.

    General

    Details
    Product code RB850Gx2
    CPU P1023NSN5CFB
    CPU core count 2
    CPU nominal frequency 533 MHz
    Dimensions 90mm x 115mm
    License level 5
    Operating System RouterOS
    Size of RAM 512 MB
    Storage size 512 MB
    Storage type NAND
    Tested ambient temperature -60°C .. +70°C tested
    Architecture PowerPC
    Suggested price $129.00

    Powering

    Details
    Max Power consumption 8W
    Number of DC inputs 2 (DC jack, PoE-IN)
    PoE in Passive PoE
    DC jack input Voltage 8-28 V
    PoE in input Voltage 8-28 V

    Ethernet

    Details
    10/100/1000 Ethernet ports 5

    Peripherals

    Details
    Memory card type microSD
    Memory Cards 1
    Serial port RS232

    Other

    Details
    CPU temperature monitor Yes
    PCB temperature monitor Yes
    Voltage Monitor Yes

    More info

    Ethernet test results

    RB850Gx2P1023 1G all port test
    ModeConfiguration1518 byte512 byte64 byte
    kppsMbpskppsMbpskppsMbps
    Bridgingnone (fast path)161.91966.1441.81809.6479.1245.3
    Bridging25 bridge filter rules161.91966.1203.7834.4196.5100.6
    Routingnone (fast path)161.91966.1343.41406.6361.1184.9
    Routing25 simple queues161.91966.1299.41226.3312.7160.1
    Routing25 ip filter rules124.51511.9130.7535.3130.766.9
    1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
    2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
    3. Values in Italic indicate that max throughput was reached without maxing out CPU, but because board interface configuration was maxed out
    4. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

    IPsec test results

    RB850Gx2RB850Gx2 IPsec throughput
    ModeConfiguration1400 byte512 byte64 byte
    kppsMbpskppsMbpskppsMbps
    Single tunnelAES-128-CBC + SHA169.4777.374.2303.976.539.2
    256 tunnelsAES-128-CBC + SHA159.6667.564.8265.466.934.3
    256 tunnelsAES-128-CBC + SHA25659.6667.564.8265.466.934.3
    256 tunnelsAES-256-CBC + SHA159.6667.564.8265.466.934.3
    256 tunnelsAES-256-CBC + SHA25654.2607.056.7232.255.828.6
    1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
    2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1400 byte packet sizes
    3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

    Download: Full CE declaration (PDF)
