PowerBox

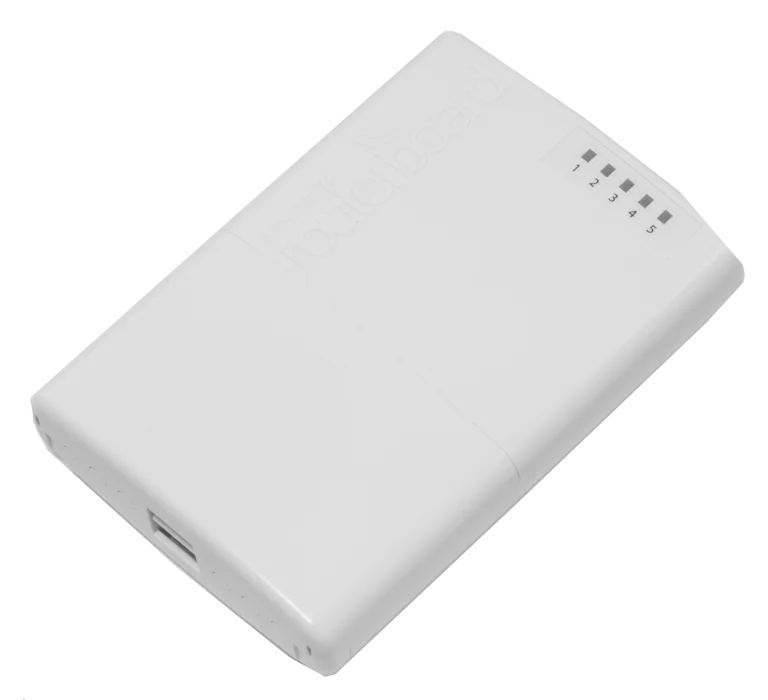

The PowerBox is an outdoor five Ethernet port router with PoE output on four ports. You can use this device to supply power to four PoE capable devices such as our SXT or others.

Since the device has a waterproof outdoor case, you can mount it on a tower, or in other outdoor locations.

The unit has five shielded Ethernet ports, four of which can power other PoE capable devices with the same voltage as applied to the unit (max current out is 1A per port, max total out is 2A). Less power adapters and cables to worry about!

Specification

Specifications

Product code RB750P-PBr2
Suggested price $69.00
Architecture MIPSBE
CPU QCA9533
CPU core count 1
CPU nominal frequency 650 MHz
Switch chip model QCA9533
Dimensions 125x178x48mm
RouterOS license 4
Operating System RouterOS
Size of RAM 64 MB
Storage size 16 MB
Storage type FLASH
MTBF Approximately 100'000 hours at 25C
Tested ambient temperature -40°C to 70°C

Powering

Number of DC inputs 2 (DC jack, PoE-IN)
DC jack input Voltage 8-30 V
Max power consumption 50 W
Max power consumption without attachments 2 W
PoE in Passive PoE
Cooling type Passive
PoE in input Voltage 8-30 V

PoE-out

PoE-out ports Ether2-Ether5
PoE out Passive PoE
Low voltage PoE-Out current limit 1 A
Max total out (A) 2 A

Ethernet

10/100 Ethernet ports 5

Other

Current Monitor Yes
PCB temperature monitor Yes
Voltage Monitor Yes

Certification & Approvals

Certification CE, EAC, ROHS
IP 20

Included parts

Note

The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase.

RB750P-PBr2		QCA9531 (650Mhz) 100M all port test
Mode	Configuration	1518 byte		512 byte		64 byte
Mode	Configuration	kpps	Mbps	kpps	Mbps	kpps	Mbps
Bridging	none (fast path)	40.6	493.0	117.4	480.9	217.0	111.1
Bridging	25 bridge filter rules	40.6	493.0	70.1	287.1	70.9	36.3
Routing	none (fast path)	40.6	493.0	117.4	480.9	200.8	102.8
Routing	25 simple queues	40.6	493.0	79.6	326.0	90.8	46.5
Routing	25 ip filter rules	40.6	493.0	42.2	172.8	43.2	22.1

All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
