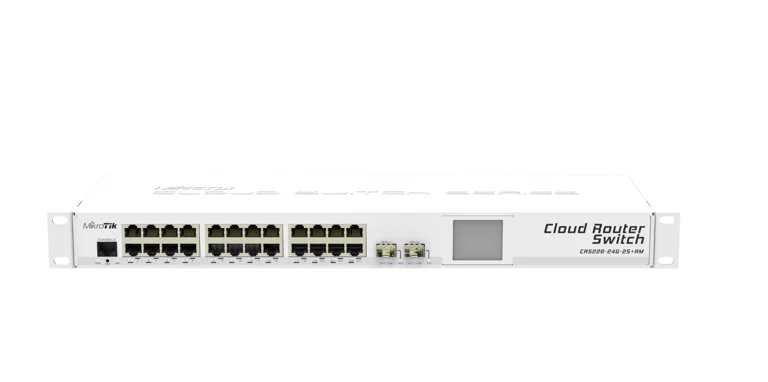

CRS226-24G-2S+RM

24x Gigabit Ethernet Smart Switch, 2x SFP+ cages, LCD, 400MHz CPU, 64MB RAM, 1U rackmount case, RouterOS L5

PoE

SFP/SFP+

Specification Find retailer

CRS226-24G-2S+RM

The Cloud Router Switch CRS226-24G-2S+ is now available also in a 1U rackmount case, product code CRS226-24G-2S+RM. It is a fully functional Layer 3 switch powered by RouterOS. All the specific switch configuration options are available in a special switch menu. But if you want, ports can be removed from the switch configuration and used for routing purposes. It has 24 Gigabit ports and two SFP+ cages for 10G connectivity (first SFP port supports 1.25G/10G modules, second port only 10G modules).

Specification

Specifications

Product code CRS226-24G-2S+RM
Suggested price $299.00
Architecture MIPSBE
CPU QCA8519
CPU core count 1
CPU nominal frequency 400 MHz
Switch chip model QCA8519-AC2C
Dimensions 443x145x45mm
RouterOS license 5
Operating System RouterOS
Size of RAM 64 MB
Storage size 128 MB
Storage type NAND
MTBF Approximately 200'000 hours at 25C
Tested ambient temperature -40°C to 70°C

Powering

Number of DC inputs 2 (DC jack, PoE-IN)
DC jack input Voltage 8-30 V
Supported Voltage 8-30V on Ether1
Max power consumption 21 W
Max power consumption without attachments 21W
PoE in Passive PoE
Cooling type Passive
PoE in input Voltage 8-30 V

Ethernet

10/100/1000 Ethernet ports 24

Fiber

SFP DDMI Yes
SFP+ ports 2

Peripherals

Serial console port RJ45

Other

PCB temperature monitor Yes
Voltage Monitor Yes
Beeper Yes

Included parts

Note

The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase.

CRS226-24G-2S+RM
Mode	Configuration	1518 byte		512 byte		64 byte
Mode	Configuration	kpps	Mbps	kpps	Mbps	kpps	Mbps
Switching	Non blocking Layer 2 throughput	3,576.1	43,427.8	10,338.3	42,345.9	65,476.2	33,523.8
Switching	Non blocking Layer 2 capacity	3,576.1	86,855.7	10,338.3	84,691.7	65,476.2	67,047.6
Switching	Non blocking Layer 1 throughput	3,576.1	44,000.0	10,338.3	44,000.0	65,476.2	44,000.0
Switching	Non blocking Layer 1 capacity	3,576.1	88,000.0	10,338.3	88,000.0	65,476.2	88,000.0

CRS226-24G-2S+RM		QCA8519 Max possible throughput test
Mode	Configuration	1518 byte		512 byte		64 byte
Mode	Configuration	kpps	Mbps	kpps	Mbps	kpps	Mbps
Bridging	none (fast path)	26.7	324.2	28.6	117.1	24.5	12.5
Bridging	25 bridge filter rules	21.4	259.9	22.4	91.8	22.2	11.4
Routing	none (fast path)	23.0	279.3	23.5	96.3	24.5	12.5
Routing	25 simple queues	19.6	238.0	22.4	91.8	21.0	10.8
Routing	25 ip filter rules	7.9	95.9	10.4	42.6	10.8	5.5

All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
