    LtAP LTE kit A heavy-duty 2.4GHz access point with extra miniPCI-e slot, three SIM slots, GNSS support (GPS, GLONASS, BeiDou, Galileo) and LTE modem for International bands 1,2,3,7,8,20,38 and 40

    Discontinued

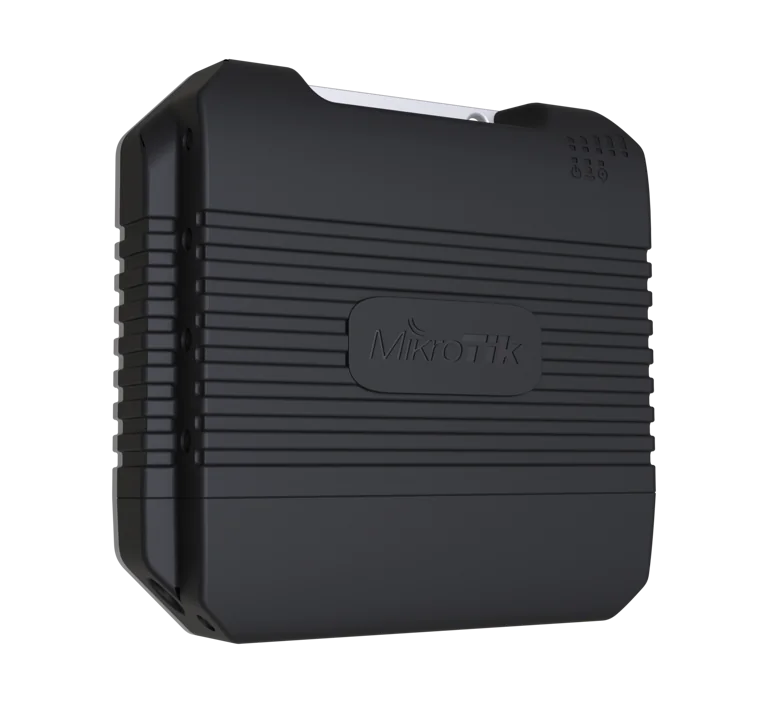

    Introducing LtAP LTE kit– a heavy-duty 4G (LTE) access point with GPS support.

    The new LtAP LTE kit is a compact 4G (LTE) capable weatherproof wireless access point – perfect for busy urban environment or off-the-grid outdoors networking. It has a built-in cellular modem that supports 4G (LTE) connectivity – no need for additional devices, it works out of the box.

    Its high power 2.4 GHz 802.11b/g/n wireless capability provides secure access to LTE network from your phone or any other wireless device with up to 150 Mbps download speed. You can also use a Gigabit Ethernet LAN port for your wired devices. There are several power options – DC jack, POE-in and automotive.

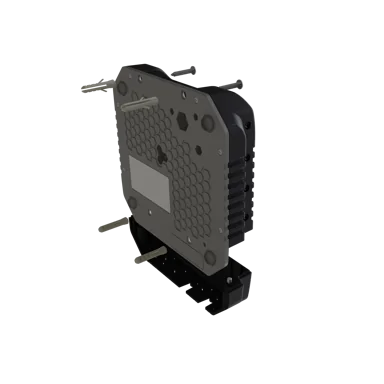

    The rugged and extremely durable case with a special wall mounting kit will be perfect for almost any challenge: from public transportation, food trucks or logistics to harsh winter and stormy desert environment. LtAP can handle any temperature from -40 C‎° to +70 C‎°. It is a perfect solution for tracking vehicles in real time. We have provided a simple tracking application example in the RouterOS documentation to help you get started. LtAP even has 3 Mini-SIM slots for easy roaming management. Saves your time and money worldwide!

    The unit comes with an extra miniPCIe slot, offering many expansion options. For example, you can install a second LTE modem for redundancy or a 5GHz interface to have dual concurrent 2.4 GHz / 5GHz AP + LTE. Another miniPCIe slot is already populated with the LTE modem.

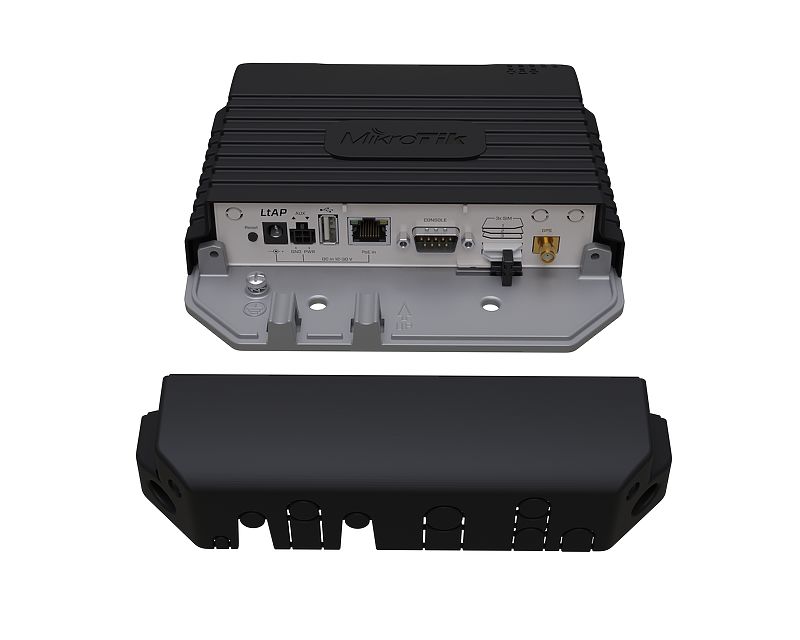

    LtAP has a RS232 serial port, which gives you console access for debugging, as well as full size USB for other devices.

    RBLtAP-2HnD&R11e-LTE includes LTE modem that supports International LTE bands 1,2,3,7,8,20,38 and 40.

    The new LtAP LTE kit is more than an access point – it is what you need it to be wherever you need it to be.

     Send purchase questions

    Specifications

    Details
    Product code RBLtAP-2HnD&R11e-LTE
    Architecture MMIPS
    CPU MT7621A
    CPU core count 2
    CPU nominal frequency 880 MHz
    CPU Threads count 4
    RouterOS license 4
    Operating System RouterOS
    Size of RAM 128 MB
    Storage size 16 MB
    Storage type FLASH
    MTBF Approximately 200'000 hours at 25C
    Tested ambient temperature -40°C to 50°C
    IPsec hardware acceleration Yes
    Suggested price $249.00

    Powering

    Details
    Number of DC inputs 3 (DC jack, PoE-IN, Automotive)
    DC jack input Voltage 12-30 V
    Automotive input Voltage 12-27 V
    Max power consumption 24 W
    Max power consumption without attachments 12 W
    Cooling type Passive
    PoE in Passive PoE
    PoE in input Voltage 12-30 V

    Mobile

    Details
    2G Category Class12
    2G bands 2 (1900MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz)
    3G Category R7 (21Mbps Downlinks, 5.76Mbps Uplink)
    3G bands 1 (2100MHz) / 2 (1900MHz) / 5 (850MHz) / 8 (900MHz)
    LTE Category 4 (150Mbps Downlink, 50Mbps Uplink)
    LTE FDD bands 1 (2100MHz) / 2 (1900MHz) / 3 (1800MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz)
    LTE TDD bands 38 (2600MHz) / 40 (2300MHz)
    TAC 35565409

    Wireless specifications

    Details
    Wireless 2.4 GHz Max data rate 300 Mbit/s
    Wireless 2.4 GHz number of chains 2
    Wireless 2.4 GHz standards 802.11b/g/n
    Antenna gain dBi for 2.4 GHz 2.5
    Wireless 2.4 GHz chip model AR9382
    Wireless 2.4 GHz generation Wi-Fi 4

    Ethernet

    Details
    10/100/1000 Ethernet ports 1

    Peripherals

    Details
    Number of SIM slots 3 Modem (Mini SIM)
    MiniPCI-e slots 2
    Serial console port RS232
    Number of USB ports 1
    USB Power Reset Yes
    USB slot type USB type A
    Max USB current (A) 1

    Other

    Details
    PCB temperature monitor Yes
    Voltage Monitor Yes
    GNSS standards GPS

    Certification & Approvals

    Details
    Certification CE, FCC, IC, E-MARK, EAC, ROHS
    IP IP54

    Wireless specifications

    2.4 GHzTransmit (dBm)Receive Sensitivity
    1MBit/s25-100
    11MBit/s25-94
    6MBit/s26-96
    54MBit/s23-78
    MCS026-96
    MCS722-73

    Included parts

    BrochureOpen
    Quick GuideOpen
    User ManualOpen
    Block DiagramOpen
    RouterOS software manualOpen
    Declaration of conformityOpen (CE)

    High resolution images

    Ethernet test results

    RBLtAP-2HnD&R11e-LTEMT7621A (880Mhz) 1G one port test
    ModeConfiguration1518 byte512 byte64 byte
    kppsMbpskppsMbpskppsMbps
    Bridgingnone (fast path)81.3987.3235962.61207.4618.2
    Bridging25 bridge filter rules81.2986.1175.371817790.6
    Routingnone (fast path)81.3987.3234.9962.21067.6546.6
    Routing25 simple queues81.2986.1216.2885.6222.5113.9
    Routing25 ip filter rules81.2986.1112.5460.811056.3
    1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
    2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
    3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

    IPsec test results

    RBLtAP-2HnD&R11e-LTEMT7621A IPsec throughput
    ModeConfiguration1400 byte512 byte64 byte
    kppsMbpskppsMbpskppsMbps
    Single tunnelAES-128-CBC + SHA141.9469.342.3173.341.521.2
    256 tunnelsAES-128-CBC + SHA141.9469.343.717942.721.9
    256 tunnelsAES-128-CBC + SHA25642.2472.644.4181.942.721.9
    256 tunnelsAES-256-CBC + SHA132358.440163.840.520.7
    256 tunnelsAES-256-CBC + SHA25632.1359.539.7162.640.520.7
    1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
    2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1400 byte packet sizes
    3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

    The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..
