| Name |
LHG 2
|
LHG XL 2
|

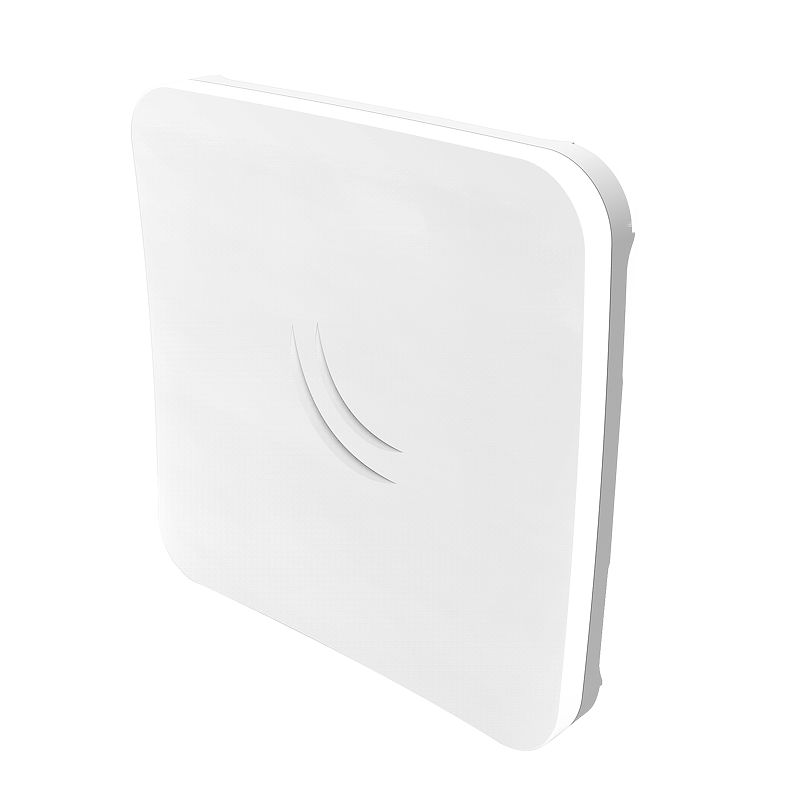

SXTsq Lite2
|
| 10/100 Ethernet ports |
1
|
1
|
1
|
| 802.11b |
Yes
|
Yes
|
Yes
|
| 802.11g |
Yes
|
Yes
|
Yes
|
| 802.11n |
Yes
|
Yes
|
Yes
|
| Antenna gain |
18
|
21
|
10
|
| Architecture |
MIPSBE
|
MIPSBE
|
MIPSBE
|
| CPU |
QCA9533
|
QCA9533
|
QCA9533
|
| CPU core count |
1
|
1
|
1
|
| CPU nominal frequency |
650 MHz
|
650 MHz
|
650 MHz
|
| Can be used outdoors |
Yes
|
Yes
|
Yes
|
| Certification |
CE, FCC, IC, EAC, ROHS
|
CE, FCC, IC, EAC, ROHS
|
CE, FCC, IC, EAC, ROHS
|
| Cooling type |
Passive
|
Passive
|
Passive
|
| Dimensions |
Ø 391 x 222 mm
|
Ø 550 x 245 mm
|
129 x 129 x 34 mm
|
| IP |
N/A
|
N/A
|
IP54
|
| MTBF |
Approximately 100'000 hours at 25C
|
Approximately 100'000 hours at 25C
|
Approximately 100'000 hours at 25C
|
| Max power consumption |
5 W
|
5 W
|
5 W
|
| Number of DC inputs |
1
|
1
|
1
|
| Operating System |
RouterOS
|
RouterOS
|
RouterOS
|
| PoE in |
Passive PoE
|
Passive PoE
|
Passive PoE
|
| PoE in input Voltage |
10-30 V
|
10-30 V
|
10-30 V
|
| RouterOS license |
3
|
3
|
3
|
| Size of RAM |
64 MB
|
64 MB
|
64 MB
|
| Storage size |
16 MB
|
16 MB
|
16 MB
|
| Storage type |
FLASH
|
FLASH
|
FLASH
|
| TX power |
| 2.4 GHz | |
|---|
| TX | RX | | 1MBit/s | 26 | -100 | | 11MBit/s | 26 | -93 | | 6MBit/s | 28 | -94 | | 54MBit/s | 24 | -78 | | MCS0 | 28 | -94 | | MCS7 | 23 | -75 |
|
| 2.4 GHz | |
|---|
| TX | RX | | 1MBit/s | 25 | -100 | | 11MBit/s | 25 | -93 | | 6MBit/s | 25 | -94 | | 54MBit/s | 22 | -80 | | MCS0 | 25 | -94 | | MCS7 | 21 | -75 |
|
| 2.4 GHz | |
|---|
| TX | RX | | 1MBit/s | 30 | -100 | | 11MBit/s | 30 | -93 | | 6MBit/s | 30 | -94 | | 54MBit/s | 26 | -80 | | MCS0 | 30 | -94 | | MCS7 | 25 | -75 |
|
| Tested ambient temperature |
-40°C to 70°C
|
-40°C to 70°C
|
-40°C to 70°C
|
| Wi-Fi generation |
Wi-Fi 4
|
Wi-Fi 4
|
Wi-Fi 4
|
| Wireless 1 Max data rate |
300 Mbit/s
|
300 Mbit/s
|
300 Mbit/s
|
| Wireless 1 Number of chains |
2
|
2
|
2
|
| Wireless 1 band |
2.4 GHz
|
2.4 GHz
|
2.4 GHz
|
| Wireless 1 generation |
Wi-Fi 4
|
Wi-Fi 4
|
Wi-Fi 4
|
| Wireless chip model |
QCA9533
|
QCA9533
|
QCA9533
|
| Wireless standards |
802.11b/g/n
|
802.11b/g/n
|
802.11b/g/n
|
