MikroTik Routers and Wireless - Products: wAP LTE kit (2024)

wAP LTE kit is a tiny weatherproof wireless access point for installation outside your house, in the garden, on your porch, or in any other challenging environment where you need a capable wireless connection on the tightest budget possible. It features an Ethernet port with passive PoE-in, but there are more ways to power this affordable access point: there’s also a standard DC jack and an automotive plug.

The new revision features a new LTE modem that offers improved connectivity, the addition of the popular B28 band, and a massive price drop!

wAP LTE kit is weatherproof and can be fixed to any external wall from the inside of the case – for extra security and less visible attachments. The bottom part can also be secured with a special anti-vandal screw, which can only be opened by the owner. There is an opening in the back of the case, allowing you to run the Ethernet cable directly behind the unit and through the wall. This way the wAP attracts less attention and blends into any environment.

Specifications

Details
Product code	wAPR-2nD&EC200A-EU
Architecture	MIPSBE
CPU	QCA9531
CPU core count	1
CPU nominal frequency	650 MHz
RouterOS license	4
Operating System	RouterOS v7
Size of RAM	64 MB
Storage size	16 MB
Storage type	FLASH
MTBF	Approximately 100'000 hours at 25C
Tested ambient temperature	-40°C to 60°C
Suggested price	$99.00

Powering

Details
Number of DC inputs	3 (Automotive, DC jack, PoE-IN)
DC jack input Voltage	9-30 V
Automotive input Voltage	9-30 V
Max power consumption	7 W
Cooling type	Passive
PoE in	Passive PoE
PoE in input Voltage	9-30 V

Mobile

Details
2G Category	Class12
2G bands	8 (900MHz) / 3 (1800MHz)
3G Category	R7 (21Mbps Downlinks, 5.76Mbps Uplink)
3G bands	5 (850MHz) / 8 (900MHz) / 1 (2100MHz)
LTE Category	4 (150Mbps Downlink, 50Mbps Uplink)
LTE FDD bands	20 (800MHz) / 3 (1800MHz) / 1 (2100MHz) / 7 (2600MHz) / 8 (900 MHz) / 5 (850MHz) / 28 (700MHz)
LTE TDD bands	40 (2300MHz) / 38 (2600MHz) / 41n (2500MHz)
TAC	86314105

Wireless specifications

Details
Wireless 2.4 GHz Max data rate	300 Mbit/s
Wireless 2.4 GHz number of chains	2
Wireless 2.4 GHz standards	802.11b/g/n
Antenna gain dBi for 2.4 GHz	2
Wireless 2.4 GHz chip model	QCA9531
Wireless 2.4 GHz generation	Wi-Fi 4

Ethernet

Details
10/100 Ethernet ports	1

Peripherals

Details
Number of SIM slots	1 Modem (Mini SIM)
MiniPCI-e slots	1

Other

Details
PCB temperature monitor	Yes
Voltage Monitor	Yes

Certification & Approvals

Details
Certification	CE, E-MARK, EAC, ROHS
IP	54

Included parts

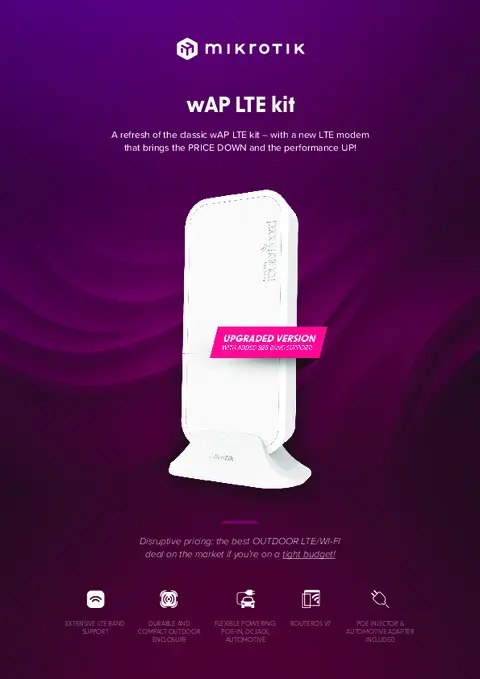

BrochureOpen

User manualOpen

RouterOS current release

Download

Block DiagramOpen

Safety and regulatory informationOpen

RouterOS software manualOpen

Declaration of conformityOpen (CE)

High resolution images

Ethernet test results

wAPR-2nD&EC200A-EUr2		QCA9531 100M one port test
Mode	Configuration	1518 byte		512 byte		64 byte
Mode	Configuration	kpps	Mbps	kpps	Mbps	kpps	Mbps
Bridging	none (fast path)	8.1	98.4	23.5	96.3	173.6	88.9
Bridging	25 bridge filter rules	8.1	98.4	23.5	96.3	70.9	36.3
Routing	none (fast path)	8.1	98.4	23.5	96.3	160.8	82.3
Routing	25 simple queues	8.1	98.4	23.5	96.3	90.8	46.5
Routing	25 ip filter rules	8.1	98.4	23.5	96.3	43.2	22.1

All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..
