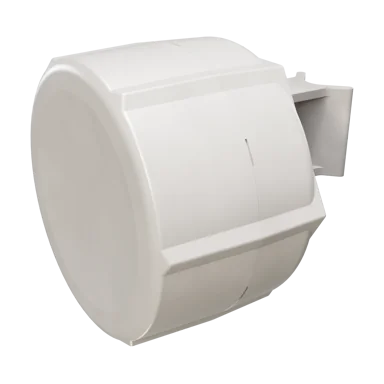

    SXT LTE6 kit Affordable mobile internet connectivity in remote areas. Lowest price ever – due to the brand new, cost-effective LTE modem.

    SXT LTE6 kit is an update of our timeless device for remote locations that are within cellular network coverage. It features the same modern Category 6 LTE chip that you might have seen in our latest devices – like the popular Chateau LTE6 ax! Not only this LTE chip can provide reliable Internet connectivity for your building even where cell phones fail, it also allowed us to drive the price for this kit way down. Mount an SXT outside your home – and always stay connected!

    You’re getting the classic, fundamental design that has stood the test of time. Weatherproof. Unobtrusive. Snow-resistant. With a modern LTE6 card for uninterrupted mobile connectivity. And a price around 30% lower than the original SXT LTE6 kit. Furthermore, we offer significant project discounts and custom branding options on volume orders. The best price on the market becomes even better!

    We’ve included two Micro-SIM slots – for backup. It never hurts to have extra options when it comes to mobile network coverage. Also, the Category 6 LTE modem enables carrier aggregation, allowing SXT to use multiple LTE bands simultaneously. That’s a huge advantage when there are a lot of mobile users in the area. It offers better responsiveness in a crowded environment. And higher efficiency for weaker signal situations in the countryside. Win-win! We have seen Internet speed doubling in rural areas after switching to CAT6, so there is no need to wait for cable network expansions.

    The unit is equipped with two Ethernet ports and PoE functionality: PoE-in on Ether1, PoE-out on Ether2. That means SXT can power other devices or be powered by other devices, making your cable management so much easier!

    Unit is shipped with a 24 V power supply, but can support a wide range of 12-57 V and is 802.3af/at compliant.

     Send purchase questions

    Specifications

    Details
    Product code SXTR&FG621-EA
    Architecture MIPSBE
    CPU QCA9531
    CPU core count 1
    CPU nominal frequency 650 MHz
    Switch chip model QCA9531
    RouterOS license 3
    Operating System RouterOS v7
    Size of RAM 64 MB
    Storage size 16 MB
    Storage type FLASH
    MTBF Approximately 200'000 hours at 25C
    Tested ambient temperature -40°C to 60°C
    Suggested price $119.00

    Powering

    Details
    Number of DC inputs 1 (PoE-IN)
    Max power consumption 22 W
    Max power consumption without attachments 5 W
    Cooling type Passive
    PoE in 802.3af/at
    PoE in input Voltage 12-57 V

    PoE-out

    Details
    PoE-out ports Ether2
    PoE out Passive PoE up to 57V
    Max out per port output (input 18-30 V) 600 mA
    Max out per port output (input 30-57 V) 400 mA
    Max total out (A) 600 mA

    Mobile

    Details
    3G Category R8 (42.2Mbps Downlink, 11.2Mbps Uplink)
    3G bands 3 (1800MHz) / 5 (850MHz) / 8 (900MHz) / 1 (2100MHz)
    LTE Category 6 (300Mbit/s Downlink, 50Mbit/s Uplink)
    MIMO DL 2x2
    MIMO UL 1x1
    LTE FDD bands 5 (850MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz) / 1 (2100MHz) / 3 (1800MHz) / 28 (700MHz)
    LTE TDD bands 38 (2600MHz) / 40 (2300MHz) / 41 (2500MHz)
    TAC 86335904

    Ethernet

    Details
    10/100 Ethernet ports 2

    Peripherals

    Details
    Number of SIM slots 2 Modem (Micro SIM)
    MiniPCI-e slots 1

    Other

    Details
    Mode button Yes

    Certification & Approvals

    Details
    Certification CE, EAC, ROHS
    IP 54

    Included parts

    BrochureOpen
    User ManualOpen
    RouterOS current releaseDownload
    Block DiagramOpen
    Safety and regulatory informationOpen
    RouterOS software manualOpen
    Declaration of conformityOpen (CE)

    High resolution images

    Ethernet test results

    SXTR&FG621-EAr3QCA9531 100M two port test
    ModeConfiguration1518 byte512 byte64 byte
    kppsMbpskppsMbpskppsMbps
    Bridgingnone (fast path)16.3197.947.0192.5297.6152.4
    Bridging25 bridge filter rules16.3197.947.0192.580.441.2
    Routingnone (fast path)16.3197.947.0192.5233.1119.3
    Routing25 simple queues16.3197.947.0192.5131.467.3
    Routing25 ip filter rules16.3197.947.0192.549.125.1
    1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
    2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
    3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

    The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..
