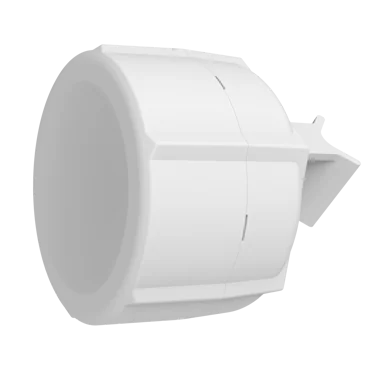

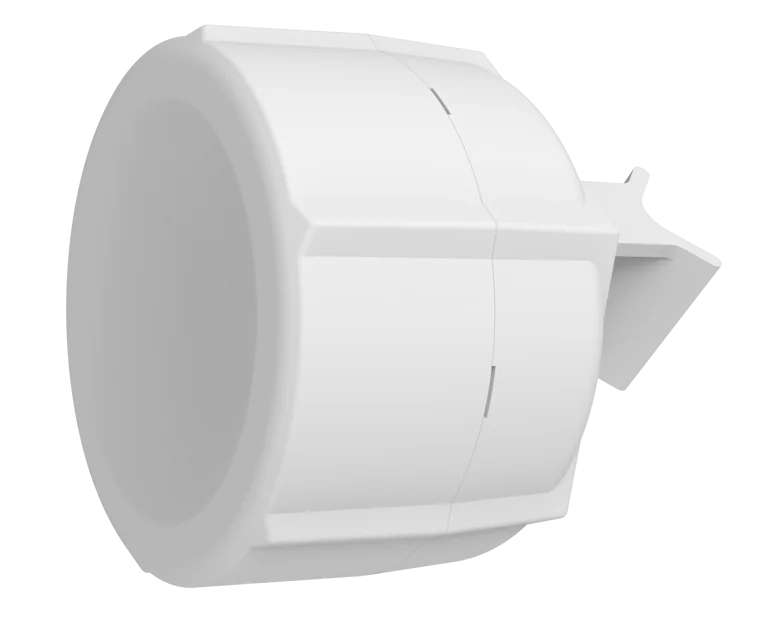

SXT 4G kit
SXT 4G/LTE CPE, 10.5dBi 60 degree antenna, 2x Ethernet ports (one with PoE out), two SIM and LTE modem for bands 3, 7, 20, 31, 41n, 42 and 43
The SXT 4G kit (product code RBSXTR&R11e-4G) is a device for remote locations that are within cellular network coverage. However, due to it’s professional LTE chip design and high gain antenna, it can provide connectivity for your building even where cell phones can’t.
The unit is equipped with two Ethernet ports (the second port has PoE-out functionality), so you can use it to power up another device. The unit includes a 24 V power supply, but can support full range of 12-57 V and 18-57 V with PoE-Out and is 802.3af/at compliant.
The device has a built in high quality 4G/LTE Category 4 modem for speeds of up to 150 Mbit/s downlink and 50 Mbit/s uplink, as well as two Micro SIM slots for backup link.
RBSXTR&R11e-4G includes LTE modem that supports LTE FDD bands 3 (1800MHz), 7 (2600MHz), 20 (800MHz) and 31 (450MHz), as well as LTE TDD bands 41n (2500MHz), 42 (3500MHz) and 43 (3700MHz).
Specification
- Product code RBSXTR&R11e-4G
- Suggested price $139.00
- Architecture MIPSBE
- CPU QCA9531
- CPU core count 1
- CPU nominal frequency 650 MHz
- Switch chip model QCA9531
- Dimensions 140 x 140 x 103 mm
- RouterOS license 3
- Operating System RouterOS
- Size of RAM 64 MB
- Storage size 16 MB
- Storage type FLASH
- MTBF Approximately 200'000 hours at 25C
- Tested ambient temperature -40°C to 60°C
- Number of DC inputs 1 (PoE-IN)
- Max power consumption 19 W
- Max power consumption without attachments 6 W
- PoE in 802.3af/at
- Cooling type Passive
- PoE in input Voltage 12-57 V
- PoE-out ports Ether2
- PoE out Passive PoE up to 57V
- Low voltage PoE-Out current limit 600 mA
- High voltage PoE-Out current limit 400 mA
- Max total out (A) 600 mA
- LTE Category 4 (150Mbps Downlink, 50Mbps Uplink)
-
LTE FDD bands
3 (1800MHz)
7 (2600MHz)
20 (800MHz)
31 (450MHz)
-
LTE TDD bands
41n (2500MHz)
42 (3500MHz)
43 (3700MHz)
- TAC 35914709
- 10/100 Ethernet ports 2
- Number of SIM slots 2 Modem (Micro SIM)
- MiniPCI-e slots 1
- Mode button Yes
- Certification CE, EAC, ROHS
- IP IP54
| RBSXTR&R11e-4Gr2 | QCA9531 100M two port test | ||||||
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 16.3 | 197.9 | 47.0 | 192.5 | 297.6 | 152.4 |
| Bridging | 25 bridge filter rules | 16.3 | 197.9 | 47.0 | 192.5 | 80.4 | 41.2 |
| Routing | none (fast path) | 16.3 | 197.9 | 47.0 | 192.5 | 233.1 | 119.3 |
| Routing | 25 simple queues | 16.3 | 197.9 | 47.0 | 192.5 | 131.4 | 67.3 |
| Routing | 25 ip filter rules | 16.3 | 197.9 | 47.0 | 192.5 | 49.1 | 25.1 |
- All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
- Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
- Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
