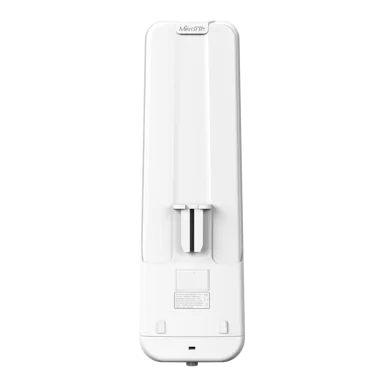

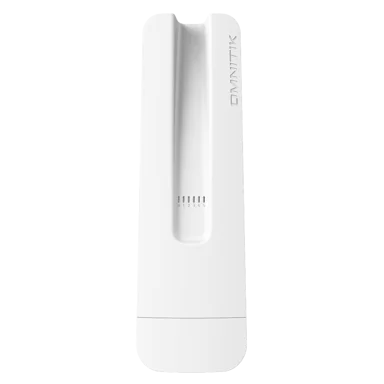

    OmniTIK 5 PoE ac 7.5dBi Integrated AP, 5GHz Dual chain with 802.11ac support, 5x Gigabit Ethernet ports with PoE-out

    We are glad to introduce a significant upgrade to our popular OmniTIK 5GHz access points!

    OmniTIK 5 PoE ac features five Gigabit Ethernet ports and support for 802.11ac. It’s equipped with a powerful 720MHz CPU, 128MB RAM, high power 802.11a/n/ac Dual Chain wireless (support for AC as well as backwards compatible with regular 802.11a/n CPE) and comes with a new design weatherproof outdoor enclosure, two integrated 7.5dBi 5GHz omni antennas, a power supply, a PoE injector and a mounting kit.

    It also supports passive or standard 802.3at/af PoE input/output. Ethernet ports 2-5 can power other PoE capable devices with the same voltage as applied to the unit. Less power adapters and cables to worry about! It can power af/at mode B (4,5+)(7,8-) compatible devices, if 48-57 input voltage is used.

    - OmniTIK 5 PoE ac US (USA) is factory locked for 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.

    - OmniTIK 5 PoE ac (International) supports 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).

     Send purchase questions

    Specifications

    Details
    Product code RBOmniTikPG-5HacD
    Architecture MIPSBE
    CPU QCA9557
    CPU core count 1
    CPU nominal frequency 720 MHz
    Switch chip model QCA8337
    Dimensions 416 x 129 x 58 mm
    RouterOS license 4
    Operating System RouterOS
    Size of RAM 128 MB
    Storage size 16 MB
    Storage type FLASH
    MTBF Approximately 200'000 hours at 25C
    Tested ambient temperature -40°C to 70°C
    Suggested price $139.00

    Powering

    Details
    Number of DC inputs 1 (PoE-IN)
    Max power consumption 66 W
    Max power consumption without attachments 18 W
    Cooling type Passive
    PoE in Passive PoE
    PoE in input Voltage 12-57 V

    PoE-out

    Details
    PoE-out ports Ether2-Ether5
    PoE out 802.3af/at
    Max out per port output (input 18-30 V) 1 A
    Max out per port output (input 30-57 V) 450 mA
    Max total out (A) 2 A

    Wireless specifications

    Details
    Wireless 5 GHz Max data rate 867 Mbit/s
    Wireless 5 GHz number of chains 2
    Wireless 5 GHz standards 802.11a/n/ac
    Antenna gain dBi for 5 GHz 7.5
    Wireless 5 GHz chip model QCA9892
    Wireless 5 GHz generation Wi-Fi 5

    Ethernet

    Details
    10/100/1000 Ethernet ports 5

    Peripherals

    Details
    Number of USB ports 1
    USB Power Reset Yes
    USB slot type USB type A
    Max USB current (A) 1

    Other

    Details
    PCB temperature monitor Yes
    Voltage Monitor Yes
    Beeper Yes

    Certification & Approvals

    Details
    Certification CE, FCC, IC, EAC, ROHS
    IP IP54

    Wireless specifications

    5 GHzTransmit (dBm)Receive Sensitivity
    6MBit/s31-96
    54MBit/s27-81
    MCS030-96
    MCS727-77
    MCS922-72

    Included parts

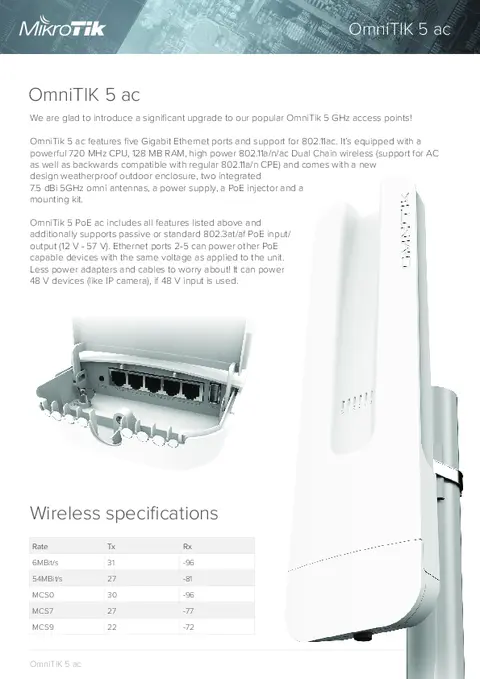

    BrochureOpen
    Quick GuideOpen
    User ManualOpen
    RouterOS current release
    Antenna patternsOpen
    RouterOS software manualOpen
    Declaration of conformityOpen (CE)
    FCC Grant of Certification (5GHz)Open

    High resolution images

    #
    #
    #
    #

    Ethernet test results

    RBOmniTikPG-5HacDQCA9557 1G all port test
    ModeConfiguration1518 byte512 byte64 byte
    kppsMbpskppsMbpskppsMbps
    Bridgingnone (fast path)81.2986.1234.9962.2477.7244.6
    Bridging25 bridge filter rules81.2986.1118.4485.0119.561.2
    Routingnone (fast path)81.2986.1234.9962.2408.2209.0
    Routing25 simple queues81.2986.1158.3648.4165.884.9
    Routing25 ip filter rules64.8786.970.4288.460.931.2
    1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
    2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
    3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

    The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..
