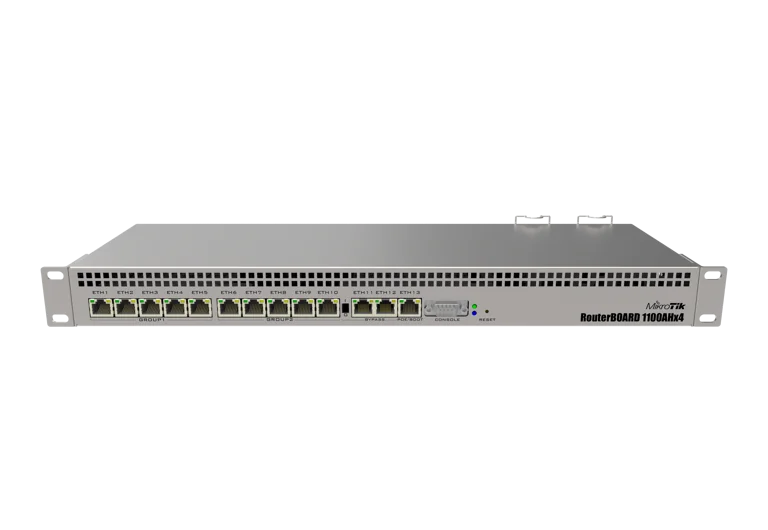

    RB1100AHx4 Powerful 1U rackmount router with 13x Gigabit Ethernet ports

    Introducing RB1100AHx4, 13x Gigabit Ethernet ports Router, powered by Annapurna Alpine AL21400 CPU with four Cortex A15 cores, clocked at 1.4GHz each, for a maximum throughput of up to 7.5Gbit. The device supports IPsec hardware acceleration (up to 2.2Gbps with AES128).

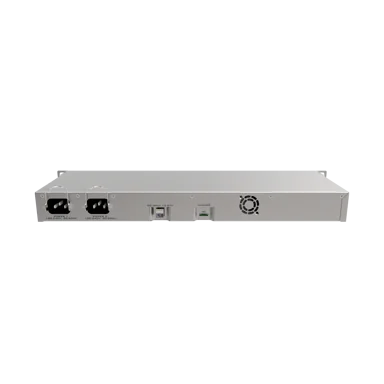

    Unit comes with 1U rackmount case, RS232 serial port and dual redundant power supplies (with -48v DC telecom power and 802.3at/af support).

     Send purchase questions

    Specifications

    Details
    Product code RB1100x4
    Architecture ARM 32bit
    CPU AL21400
    CPU core count 4
    CPU nominal frequency 1.4 GHz
    Switch chip model RTL8367
    Dimensions 443 x 148 x 44 mm
    RouterOS license 6
    Operating System RouterOS
    Size of RAM 1 GB
    Storage size 128 MB
    Storage type NAND
    MTBF Approximately 200'000 hours at 25C
    Tested ambient temperature -40°C to 70°C
    IPsec hardware acceleration Yes
    Suggested price $329.00

    Powering

    Details
    Number of AC inputs 2
    AC input range 100-240
    Number of DC inputs 2 (2-pin terminal, PoE-IN)
    2-pin terminal input Voltage -48, 12-57 V
    Max power consumption 20 W
    Cooling type Passive
    PoE in 802.3af/at
    PoE in input Voltage 20-57 V

    Ethernet

    Details
    10/100/1000 Ethernet ports 13

    Peripherals

    Details
    Memory card type microSD
    Memory Cards 1
    Serial console port RS232

    Other

    Details
    Current Monitor Yes
    PCB temperature monitor Yes
    Voltage Monitor Yes
    Mode button Yes
    Beeper Yes

    Certification & Approvals

    Details
    Certification CE, EAC, ROHS
    IP IP20

    Included parts

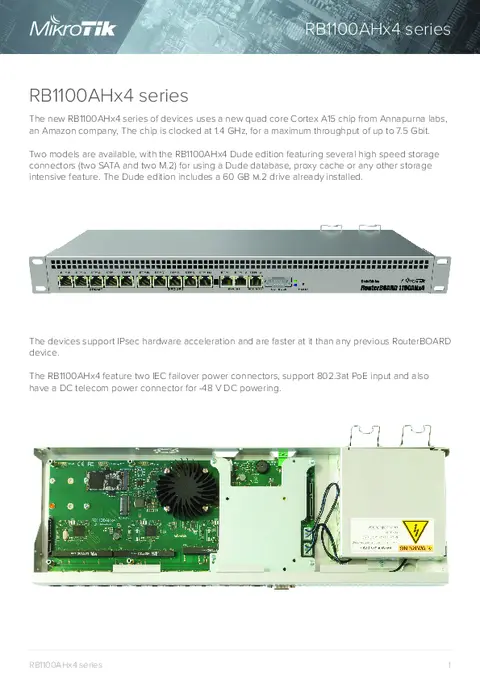

    BrochureOpen
    Quick GuideOpen
    User ManualOpen
    RouterOS current releaseDownload
    Block DiagramOpen
    RouterOS software manualOpen
    Declaration of conformityOpen (CE)

    High resolution images

    #
    #
    #

    Ethernet test results

    RB1100x4AL21400 1G all port test
    ModeConfiguration1518 byte512 byte64 byte
    kppsMbpskppsMbpskppsMbps
    Bridgingnone (fast path)606.57,365.31,736.47,112.35,509.72,821.0
    Bridging25 bridge filter rules606.57,365.31,107.84,537.51,153.2590.4
    Routingnone (fast path)606.57,365.31,736.47,112.35092.32,607.3
    Routing25 simple queues606.57,365.3933.63,824.0960.3491.7
    Routing25 ip filter rules543.76,602.7561.82,301.1564.6289.1
    1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
    2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
    3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

    IPsec test results

    RB1100x4AL21400 IPsec throughput
    ModeConfiguration1400 byte512 byte64 byte
    kppsMbpskppsMbpskppsMbps
    Single tunnelAES-128-CBC + SHA192.11031.593.1381.392.347.3
    256 tunnelsAES-128-CBC + SHA1115.51293.6117.4480.9132.367.7
    256 tunnelsAES-128-CBC + SHA256115.51293.6117.4480.9132.367.7
    256 tunnelsAES-256-CBC + SHA1114.61283.5111.4456.3126.364.7
    256 tunnelsAES-256-CBC + SHA256114.61283.5111.4456.3126.364.7
    1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
    2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1400 byte packet sizes
    3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

    The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..
