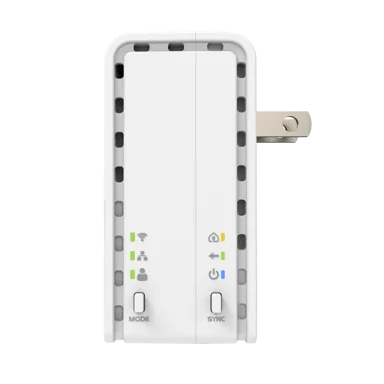

    PWR-LINE AP (US plug) 802.11b/g/n WiFi AP with a single Ethernet port and capability to connect to other PWR-LINE devices through the electrical lines in your premises (Type A plug, US plug)

    Discontinued


    The PWR-Line AP is a small Wi-Fi access point, made as an accessory to your existing network, for places, where your signal or your cable is unable to reach. Unit comes with Type A power plug (commonly used in USA, Canada, Mexico & Thailand)

    Especially useful in homes with thick walls, where you can extend Wi-Fi coverage to those rooms, where signal is poor, without having to re-wire your house.

    Simply plug this device directly into one of the LAN ports of your MikroTik router, and add another one somewhere further in your premises. They will link together through the power lines. You can install up to eight PWR-LINE devices to further build your network.

     Send purchase questions

    Specifications

    Details
    Product code PL6411-2nD
    Architecture MIPSBE
    CPU QCA9533
    CPU core count 1
    CPU nominal frequency 650 MHz
    PLC chipset QCA6410
    Dimensions 50 x 68 x 33mm
    RouterOS license 4
    Operating System RouterOS
    Size of RAM 64 MB
    Storage size 16 MB
    Storage type FLASH
    MTBF Approximately 100'000 hours at 25C
    Tested ambient temperature -20°C to 60°C
    Suggested price $49.00

    Powering

    Details
    AC input range 100-240
    Frequency (Hz) 50-60
    Max power consumption 6.3 W

    Wireless specifications

    Details
    Wireless 2.4 GHz Max data rate 300 Mbit/s
    Wireless 2.4 GHz number of chains 2
    Wireless 2.4 GHz standards 802.11b/g/n
    Antenna gain dBi for 2.4 GHz 1.5
    Wireless 2.4 GHz chip model QCA9533
    Wireless 2.4 GHz generation Wi-Fi 4

    Ethernet

    Details
    10/100 Ethernet ports 1

    Certification & Approvals

    Details
    Certification CE, FCC, IC, EAC, ROHS
    IP IP00

    Wireless specifications

    2.4 GHzTransmit (dBm)Receive Sensitivity
    1MBit/s22-96
    11MBit/s22-89
    6MBit/s20-93
    54MBit/s18-74
    MCS020-93
    MCS716-71
    BrochureOpen
    Quick GuideOpen
    User ManualOpen
    RouterOS current release
    Block DiagramOpen
    RouterOS software manualOpen
    FCC Grant of Certification (2.4GHz)Open

    High resolution images

    #
    #
    #
    #

    Ethernet test results

    PL6411-2nDQCA9533 100M one port test
    ModeConfiguration1518 byte512 byte64 byte
    kppsMbpskppsMbpskppsMbps
    Bridgingnone (fast path)8.198.423.596.3173.688.9
    Bridging25 bridge filter rules8.198.423.596.382.242.1
    Routingnone (fast path)8.198.423.596.3160.882.3
    Routing25 simple queues8.198.423.596.3118.760.8
    Routing25 ip filter rules8.198.423.596.353.927.6
    1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
    2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
    3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

    The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..
