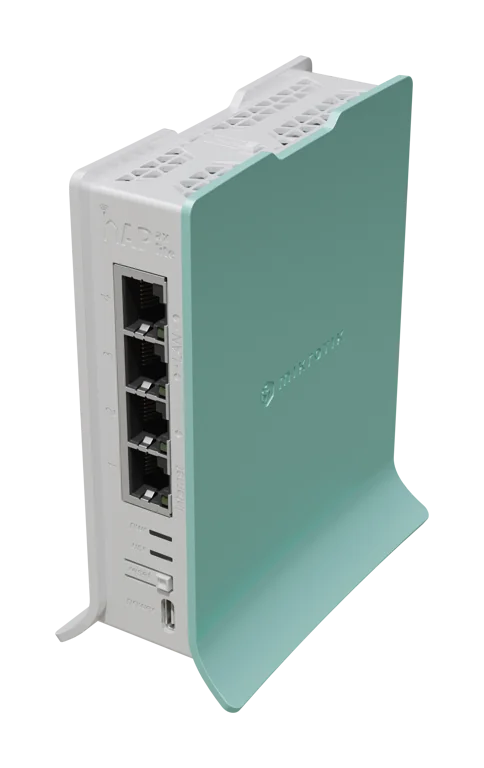

MikroTik Routers and Wireless - Products: hAP ax lite

hAP ax lite is the perfect tiny solution when you’ve got to cut costs but can’t afford to sacrifice performance. Our latest Gen6 AX wireless chip allows you to squeeze the traditional 2.4 GHz wireless spectrum like a lemon! Depending on your overall setup, you can expect an increase in speed of up to 90%!

Very useful in scalable setups like hotels or expanding offices – the appealing price point, compact size, and a strong set of features allows adding more devices without a doubt! And – speaking of hotels – why not pack a hAP ax lite for your vacation? It takes up almost no space in your suitcase and allows you to break free from the restrictive guest networks.

Our hAP lite devices have always been about value. With 256 MB of RAM , a modern ARM CPU running at 800 MHz, 4x Gigabit Ethernet ports , much higher dual-chain antenna gain (up to 4.3 dBi!), and a complete visual redesign, the new hAP ax lite is a real trailblazer of value and affordable networking.

Specifications

Details
Product code	L41G-2axD
Architecture	ARM
CPU	IPQ-5010
CPU core count	2
CPU nominal frequency	800 MHz
Switch chip model	MT7531BE
RouterOS license	4
Operating System	RouterOS v7
Size of RAM	256 MB
Storage size	128 MB
Storage type	NAND
MTBF	Approximately 100'000 hours at 25C
Tested ambient temperature	-40°C to 70°C
Suggested price	$59.00

Wireless capabilities

Details
Wireless 2.4 GHz Max data rate	574 Mbit/s
Wireless 2.4 GHz number of chains	2
Wireless 2.4 GHz standards	802.11b/g/n/ax
Antenna gain dBi for 2.4 GHz	4.3
Wireless 2.4 GHz chip model	IPQ-5010
Wireless 2.4 GHz generation	Wi-Fi 6
WiFi speed	AX600

Ethernet

Details
10/100/1000 Ethernet ports	4

Powering

Details
Number of DC inputs	1 (USB-C)
Supported Voltage	5 V
Max power consumption	8 W
Cooling type	Passive

Certification & Approvals

Details
Certification	CE, FCC, IC, EAC, ROHS
IP	20

Other

Details
Mode button	Yes

Wireless specifications

2.4 GHz	Transmit (dBm)	Receive Sensitivity
1MBit/s	22	-100
11MBit/s	22	-100
6MBit/s	22	-95
54MBit/s	18	-77
MCS0	22	-95
MCS7	17	-75
MCS9	16	-69
MCS11	15	-61

Included parts

5V 2.4A 12W USB power adapter

BrochureOpen

Quick GuideOpen

User ManualOpen

RouterOS current release

Download

Block DiagramOpen

RouterOS software manualOpen

Declaration of conformityOpen (CE)

FCC Grant of Certification (2.4GHz)Open

High resolution images

Ethernet test results

L41G-2axD		IPQ-5010 all port test
Mode	Configuration	1518 byte		512 byte		64 byte
Mode	Configuration	kpps	Mbps	kpps	Mbps	kpps	Mbps
Bridging	none (fast path)	202.8	2462.8	373.2	1528.5	396.8	215.9
Bridging	25 bridge filter rules	173.9	2112.3	175.8	719.9	181.5	98.7
Routing	none (fast path)	202.8	2462.8	321.1	1315.4	348.4	189.6
Routing	25 simple queues	137.4	1668.1	140.2	574.4	141.9	77.2
Routing	25 ip filter rules	77.9	946.5	75.8	310.5	76	41.3

All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..
