    hAP ax² A Generation 6 version of the legendary hAP ac². With PoE-in and PoE-out, much faster wireless, more RAM, and a modern CPU. The smallest fully-fledged AX router on the market!

    It’s time to supercharge your home network with the Generation 6 wireless network and our latest addition to the beloved hAP series. hAP ax² has everything you might need in a primary home access point – and more! Forget endless reviews and comparisons – this is the perfect device for 99% of homes.

    Wireless signal is now stronger than ever. Here are the two main ingredients of hAP ax’s success: a state-of-the-art dual-band, dual-chain 4-4.5 dBi radio, and the 802.11ax standard with Wave2 support. Let’s compare it to the previous generation: depending on your overall setup, that means up to 40% higher speed in the 5 GHz and up to 90% higher speed in the 2.4 GHz spectrum!

    Some might ask – why do we even need higher wireless speeds? Well, countless use cases have been previously impossible or difficult to pull off. For example, working with large media files over the wireless network – without the need to download and upload everything. Do you really have the time to wait? Grab a hAP ax² and save more time for the essential things in life!

    The modern quad-core CPU running at 864 MHz combined with a solid GB of RAM packs a hefty punch when it comes to heavy operations like complex firewall rules, IPsec hardware encryption, using more threads or experimenting with the most advanced RouterOS features. And with the addition of WPA3 advanced encryption support, you’re safer than ever before.

    Like the previous models, hAP ax² can be mounted vertically, horizontally, or even on the wall – without sacrificing the strong signal.

    With so many products and features on the market, even an experienced user can become confused. So it’s time for a simple truth for a simple choice: you can’t go wrong with a hAP ax² in most homes.

     Send purchase questions

    Specifications

    Details
    Product code C52iG-5HaxD2HaxD-TC
    Architecture ARM 64bit
    CPU IPQ-6010
    CPU core count 4
    CPU nominal frequency auto (864 -1800) MHz
    Switch chip model IPQ-6010
    RouterOS license 4
    Operating System RouterOS v7
    Size of RAM 1 GB
    Storage size 128 MB
    Storage type NAND
    MTBF Approximately 100'000 hours at 25C
    Tested ambient temperature -40°C to 50°C
    IPsec hardware acceleration Yes
    Suggested price $99.00

    Wireless capabilities

    Details
    Wireless 2.4 GHz Max data rate 574 Mbit/s
    Wireless 2.4 GHz number of chains 2
    Wireless 2.4 GHz standards 802.11b/g/n/ax
    Antenna gain dBi for 2.4 GHz 4
    Wireless 2.4 GHz chip model QCN-5022
    Wireless 2.4 GHz generation Wi-Fi 6
    Wireless 5 GHz Max data rate 1200 Mbit/s
    Wireless 5 GHz number of chains 2
    Wireless 5 GHz standards 802.11a/n/ac/ax
    Antenna gain dBi for 5 GHz 4.5
    Wireless 5 GHz chip model QCN-5052
    Wireless 5 GHz generation Wi-Fi 6
    WiFi speed AX1800

    Ethernet

    Details
    10/100/1000 Ethernet ports 5
    Number of 1G Ethernet ports with PoE-out 1

    Powering

    Details
    Number of DC inputs 2 (DC jack, PoE-IN)
    DC jack input Voltage 12-28 V
    Max power consumption 27 W
    Max power consumption without attachments 12 W
    Cooling type Passive
    PoE in Passive PoE
    PoE in input Voltage 18-28 V

    PoE-out

    Details
    PoE-out ports Ether 1
    PoE out Passive PoE
    Max out per port output (input 18-30 V) 600 mA
    Max total out (A) 0.6 A
    Total output current 0.6
    Total output power 16.8W

    Certification & Approvals

    Details
    Certification CE, FCC, IC, EAC, ROHS
    IP 20

    Other

    Details
    CPU temperature monitor Yes
    Mode button Yes

    Wireless specifications

    2.4 GHzTransmit (dBm)Receive Sensitivity
    1MBit/s27-100
    11MBit/s27-94
    6MBit/s27-96
    54MBit/s25-80
    MCS027-96
    MCS724-75
    MCS922-70
    MCS1120-67
    5 GHzTransmit (dBm)Receive Sensitivity
    6MBit/s26-96
    54MBit/s23-80
    MCS026-96
    MCS722-75
    MCS920-70
    MCS1118-67

    Included parts

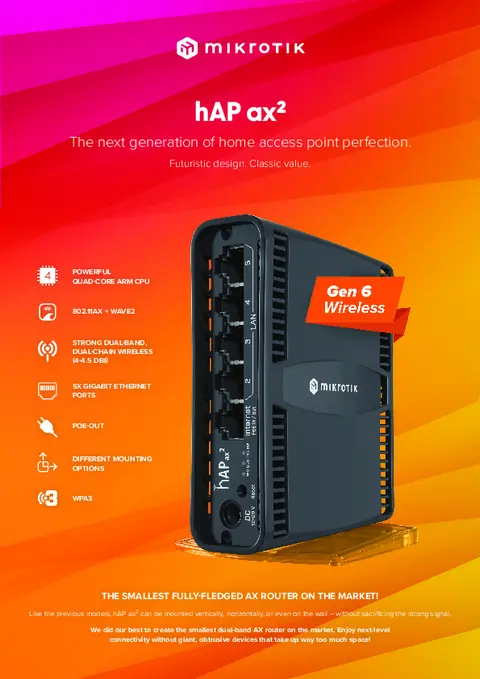

    BrochureOpen
    Quick GuideOpen
    User ManualOpen
    RouterOS current release
    Block DiagramOpen
    DimensionsOpen
    RouterOS software manualOpen
    Declaration of conformityOpen (CE)

    High resolution images

    #
    #

    Ethernet test results

    C52iG-5HaxD2HaxD-TCIPQ-6010 all port test
    ModeConfiguration1518 byte512 byte64 byte
    kppsMbpskppsMbpskppsMbps
    Bridgingnone (fast path)216.62630.4591.52422.81366.2743.2
    Bridging25 bridge filter rules2162622.7342.51402.7347188.8
    Routingnone (fast path)216.62630.4590.92420.31212.6659.7
    Routing25 simple queues215.72620327.61341.8350.3190.6
    Routing25 ip filter rules216.22625.1222.9912.9225.1122.4
    1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
    2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
    3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

    IPsec test results

    C52iG-5HaxD2HaxD-TCIPQ-6010 IPsec throughput
    ModeConfiguration1400 byte512 byte64 byte
    kppsMbpskppsMbpskppsMbps
    Single tunnelAES-128-CBC + SHA178.4878.191.9376.493.647.9
    256 tunnelsAES-128-CBC + SHA150.1561.155.5227.358.630
    256 tunnelsAES-128-CBC + SHA2565056055.4226.958.630
    256 tunnelsAES-256-CBC + SHA149.4553.354.8224.558.630
    256 tunnelsAES-256-CBC + SHA25649.4553.355225.358.630
    1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
    2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1400 byte packet sizes
    3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

    The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..
