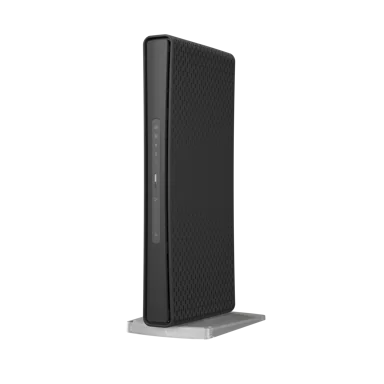

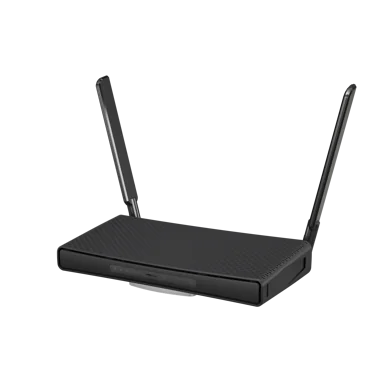

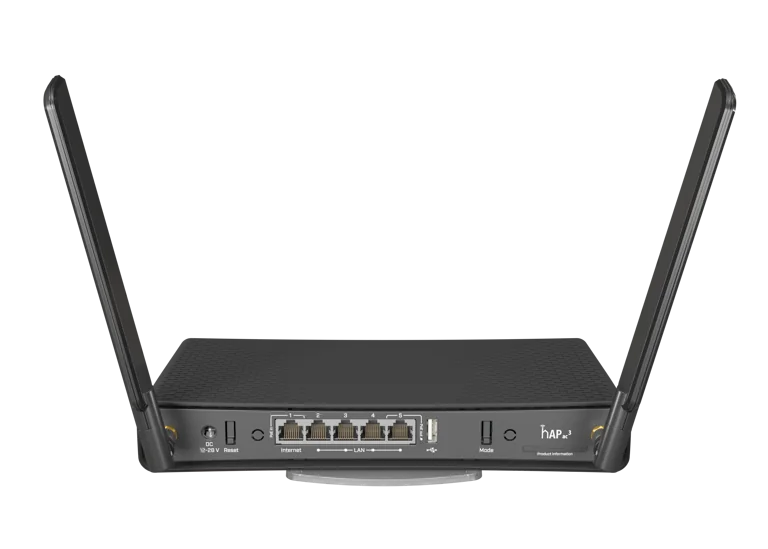

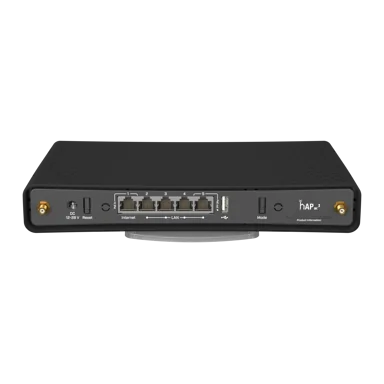

    hAP ac³ A wireless dual-band router with 5 Gigabit Ethernet ports and external high gain antennas for more coverage

    Forget about endless searching for the perfect router and scrolling through an eternity of reviews and specifications! We have created a single affordable home access point that has all the features you might need for years to come.

    Is your old router struggling to reach every corner of your home? Well, forget about that! We have included external high gain wireless antennas with outstanding coverage. Only strong and stable wireless connection in every room from now on!

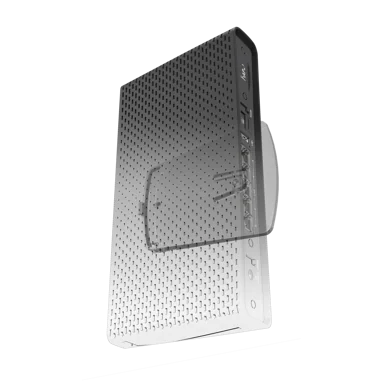

    With 5 Gigabit Ethernet ports, 256 MB of RAM and quad-core CPU, hAP ac³ can satisfy even the biggest and most demanding households. With PoE support, it can power or be powered by other devices. There is a 128 MB NAND and a full-size USB port that you can use to add extra storage. The new enclosure allows mounting the device vertically or horizontally. A wall mount set is also included.


     Send purchase questions

    Specifications

    Details
    Product code RBD53iG-5HacD2HnD
    Architecture ARM 32bit
    CPU IPQ-4019
    CPU core count 4
    CPU nominal frequency 716 MHz
    Dimensions 251 x 129 x 39 mm
    RouterOS license 4
    Operating System RouterOS
    Size of RAM 256 MB
    Storage size 128 MB
    Storage type NAND
    Tested ambient temperature -40°C to 70°C
    MTBF Approximately 100'000 hours at 25C
    Suggested price $99.00

    Wireless capabilities

    Details
    Wireless 2.4 GHz Max data rate 300 Mbit/s
    Wireless 2.4 GHz number of chains 2
    Wireless 2.4 GHz standards 802.11b/g/n
    Antenna gain dBi for 2.4 GHz 3
    Wireless 2.4 GHz chip model IPQ-4019
    Wireless 2.4 GHz generation Wi-Fi 4
    Wireless 5 GHz Max data rate 867 Mbit/s
    Wireless 5 GHz number of chains 2
    Wireless 5 GHz standards 802.11a/n/ac
    Antenna gain dBi for 5 GHz 5.5
    Wireless 5 GHz chip model IPQ-4019
    Wireless 5 GHz generation Wi-Fi 5
    AC speed AC1200

    Ethernet

    Details
    10/100/1000 Ethernet ports 5
    Number of 1G Ethernet ports with PoE-out 1

    Peripherals

    Details
    Number of USB ports 1
    USB Power Reset Yes
    USB slot type USB type A
    Max USB current (A) 1

    Powering

    Details
    PoE in Passive PoE
    PoE in input Voltage 18-28 V
    Number of DC inputs 2 (DC jack, PoE-IN)
    DC jack input Voltage 12-28 V
    Max power consumption 30 W
    Max power consumption without attachments 12 W
    FAN count Passive

    PoE-out

    Details
    PoE-out ports Ether5
    PoE out Passive PoE
    Max out per port output (input < 30 V) 0.5 A
    Max total out (A) 0.5 A

    Certification & Approvals

    Details
    Certification CE, FCC, IC, EAC, ROHS

    Other

    Details
    Mode button Yes

    Wireless specifications

    2.4 GHzTransmit (dBm)Receive Sensitivity
    1MBit/s25-100
    11MBit/s25-94
    6MBit/s26-96
    54MBit/s23-78
    MCS026-96
    MCS722-73
    5 GHzTransmit (dBm)Receive Sensitivity
    6MBit/s26-96
    54MBit/s22-80
    MCS026-96
    MCS721-75
    MCS919-70

    Included parts

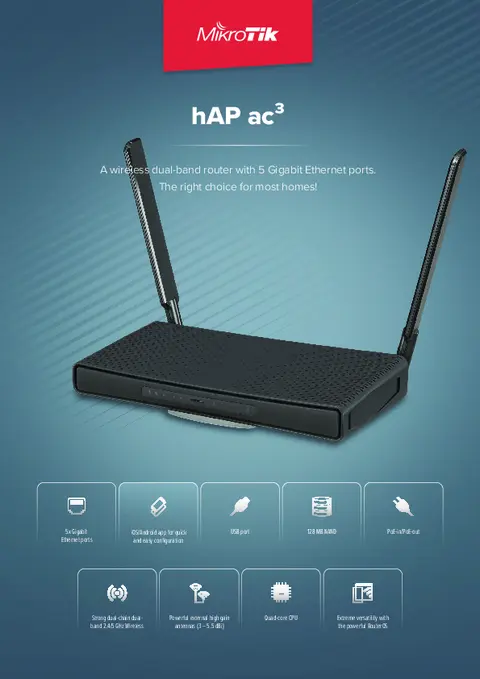

    BrochureOpen
    Quick GuideOpen
    User ManualOpen
    RouterOS current releaseDownload
    Block DiagramOpen
    RouterOS software manualOpen
    Declaration of conformityOpen (CE)
    FCC Grant of Certification (2.4GHz)Open
    FCC Grant of Certification (5GHz)Open

    High resolution images

    Ethernet test results

    RBD53iG-5HacD2HnDIPQ-4019 1G all port test
    ModeConfiguration1518 byte512 byte64 byte
    kppsMbpskppsMbpskppsMbps
    Bridgingnone (fast path)162,51973.4469,91924.71488,4762.1
    Bridging25 bridge filter rules162,51973.4351,21438.5352,1180.3
    Routingnone (fast path)162,51973.4469,91924.71488,4762.1
    Routing25 simple queues162,51973.4468,61919.4493,4252.6
    Routing25 ip filter rules162,51973.4222,8912.6227,4116.4
    1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
    2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
    3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

    IPsec test results

    RBD53iG-5HacD2HnDIPQ-4018 IPsec throughput
    ModeConfiguration1400 byte512 byte64 byte
    kppsMbpskppsMbpskppsMbps
    Single tunnelAES-128-CBC + SHA137.9424.559241.761.631.5
    256 tunnelsAES-128-CBC + SHA136403.238.5157.739.820.4
    256 tunnelsAES-128-CBC + SHA25636403.238.5157.739.820.4
    256 tunnelsAES-256-CBC + SHA134.4385.337.9155.239.820.4
    256 tunnelsAES-256-CBC + SHA25634.4385.337.9155.239.820.4
    1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
    2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1400 byte packet sizes
    3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

    The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..
