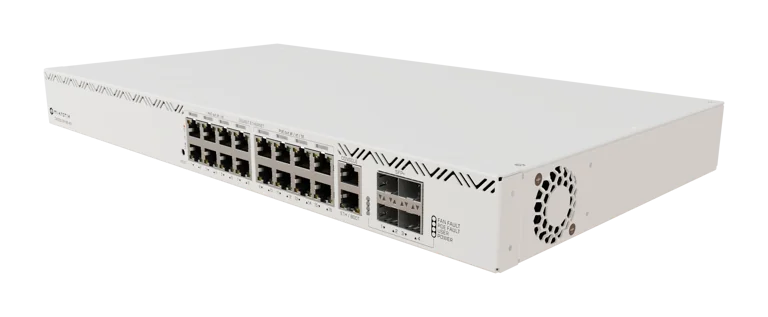

CRS320-8P-8B-4S+RM
The first MikroTik high-power PoE++ switch – for easy and cost-effective powering of industry standard 802.3af/at/bt devices. Forget about countless power cables – create a cleaner space with PoE++!
CRS320-8P-8B-4S+RM Cable management can get really exhausting. But it doesn’t have to. Our first PoE++ or 802.3bt switch can make your cable management so much easier, as it can output enough power for all your hotel, conference hall, office and high-rise building needs!
4K security cameras with built-in winter heating elements, LED ad screens, PoE-powered light fixtures – CRS320 can output up to 90W per port, enough even for the most demanding devices! It comes with a reliable 600 W power supply, but we’ve reserved an expansion slot for an additional PSU, in case you need to raise the power output to 1150 W.
There are 17 Gigabit Ethernet ports: #1 - #8 Gigabit Ethernet ports with 802.3af/at PoE-out, #9 - #16 802.3bt PoE++ ports, and an extra Gigabit Ethernet port for management purposes. There’s also a console port, and four 10G SFP+ fiber ports for uplink.
At its core, this convenient switch has a phenomenal Marvel switch-chip – the same one you’ve seen in ISP bestsellers like the netPower 16P and netFiber 9! It can handle the heaviest loads, including VLAN-filtering and hardware-offloaded Layer-3 routing.
If you’ve been looking for a way to simplify your cable management – this is it! With a single CRS320, you can ditch that endless mess of DC power adapters and start living the clean minimalist PoE dream.
Unlike our previous 802.3af/at Power Sourcing Equipment, this is our first PoE switch with full implementation of the 802.3af/at/bt standard. It supports only fully compliant 802.3 at/af/bt Powered Devices - mAP-lite / RB1100AHx4 / CRS510-8XS-2XQ / CRS504-4XQ / FTC11XG / CRS305-1G-4S+OUT. While it can also power “802.3af/at/bt-compatible” Powered Devices, you must avoid specific grounding scenarios. Please refer to the official Help page. .
A hot-swappable PSU is included.
Specification
- Product code CRS320-8P-8B-4S+RM
- Suggested price $489.00
- Architecture ARM 32bit
- CPU 98DX226S
- CPU core count 2
- CPU nominal frequency 800 MHz
- Switch chip model 98DX226S
- RouterOS license 5
- Operating System RouterOS v7 / SwitchOS
- Size of RAM 256 MB
- Storage size 32 MB
- Storage type FLASH
- MTBF Approximately 200'000 hours at 25C
- Tested ambient temperature -10°C to 50°C
- Number of AC inputs 1
- AC input range 100-240
- Number of PSU slots 2
- Frequency (Hz) 50-60
- Max power consumption 600W (1150W with additional PSU)
- Max power consumption without attachments 36 W
- Cooling type 3 fans
- PoE-out ports Ether1-Ether8 (af/at), Ether9-Ether16 (bt)
- PoE out 802.3af/at/bt
- High voltage PoE-Out current limit 560 (af/at) / 1667 (bt) mA
- Max total out (A) 17.82 A
- Total output current 17.82
- Total output power 963
- 10/100/1000 Ethernet ports 17
- Number of 1G Ethernet ports with PoE-out 16
- SFP+ ports 4
- Serial console port RJ45
- CPU temperature monitor Yes
- PCB temperature monitor Yes
- Voltage Monitor Yes
- Certification CE, EAC, ROHS
- IP 20
| CRS320-8P-8B-4S+RM | |||||||
|---|---|---|---|---|---|---|---|
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Switching | Non blocking Layer 2 throughput | 4,632.6 | 56,258.8 | 13,392.9 | 54,857.1 | 84,821.4 | 43,428.6 |
| Switching | Non blocking Layer 2 capacity | 4,632.6 | 112,517.6 | 13,392.9 | 109,714.3 | 84,821.4 | 86,857.1 |
| Switching | Non blocking Layer 1 throughput | 4,632.6 | 57,000.0 | 13,392.9 | 57,000.0 | 84,821.4 | 57,000.0 |
| Switching | Non blocking Layer 1 capacity | 4,632.6 | 114,000.0 | 13,392.9 | 114,000.0 | 84,821.4 | 114,000.0 |
| CRS320-8P-8B-4S+RM | 98DX226S - all port test | ||||||
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 104.3 | 1266.4 | 273.7 | 1121.2 | 321.2 | 174.7 |
| Bridging | 25 bridge filter rules | 96.5 | 1171.7 | 107.2 | 439.1 | 106.6 | 58 |
| Routing | none (fast path) | 104.2 | 1265.2 | 274.3 | 1123.5 | 387.6 | 210.9 |
| Routing | 25 simple queues | 95.8 | 1163.2 | 101.4 | 415.4 | 102 | 55.5 |
| Routing | 25 ip filter rules | 63.4 | 769.7 | 64.4 | 263.8 | 63.5 | 34.6 |
- All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
- Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
- Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
