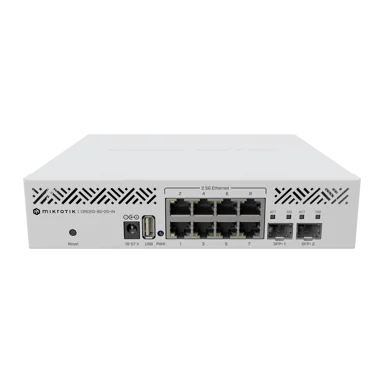

The world of networking is on the move. Even small offices are shifting from Gigabit connections to the lightning-fast realm of 2.5 Gigabit connectivity. With CRS310-8G+2S+IN, we aim to give you the tools to outpace your competition with a strong combination of eight 2.5 Gigabit Ethernet ports and two 10 Gigabit SFP+ ports in a compact, powerful package! Furthermore, these SFP+ cages support multiple data rates: 1G, 2.5G, and 10G. So you can use this switch as a 10x 2.5G switch, if needed. Classic MikroTik flexibility!

The amazing Marvell 98DX226S switch-chip and integrated dual-core ARM CPU can handle the full potential of RouterOS v7. Run VLANs, Jumbo frames, link aggregation, ACL rules, and so much more! You can even do some hardware offloaded Layer-3 routing.

There are multiple mounting options. You can easily install the CRS310-8G+2S+IN in a standard 19” rack using the provided rackmount ears. Another option is to get the RMK-2/10 accessory set, which allows you to mount two CRS310 units within the same 1U 19” rack space or mount it in a 10” rack. The choice is yours!

Specifications

Details
Product code	CRS310-8G+2S+IN
Architecture	ARM 32bit
CPU	98DX226S
CPU core count	2
CPU nominal frequency	800 MHz
Switch chip model	98DX226S
RouterOS license	5
Operating System	RouterOS v7
Size of RAM	256 MB
Storage size	32 MB
Storage type	FLASH
MTBF	Approximately 200'000 hours at 25C
Tested ambient temperature	-40°C to 60°C
Suggested price	$219.00

Powering

Details
Number of DC inputs	1 (DC jack)
DC jack input Voltage	18-57 V
Max power consumption	34 W
Max power consumption without attachments	21 W
Cooling type	1 fan

Ethernet

Details
Number of 2.5G Ethernet ports	8

Fiber

Details
SFP+ ports	2

Peripherals

Details
Number of USB ports	1
USB Power Reset	Yes
USB slot type	USB type A
Max USB current (A)	1

Other

Details
CPU temperature monitor	Yes
PCB temperature monitor	Yes

Certification & Approvals

Details
Certification	CE, EAC, ROHS
IP	20

Included parts

BrochureOpen

Quick GuideOpen

User ManualOpen

RouterOS current releaseDownload

Block DiagramOpen

SFP compatibility listOpen

RouterOS software manualOpen

High resolution images

Switching results

CRS310-8G+2S+IN
Mode	Configuration	1518 byte		512 byte		64 byte
Mode	Configuration	kpps	Mbps	kpps	Mbps	kpps	Mbps
Switching	Non blocking Layer 2 throughput	3,251.0	39,479.8	9,398.5	38,496.2	59,523.8	30,476.2
Switching	Non blocking Layer 2 capacity	3,251.0	78,959.7	9,398.5	76,992.5	59,523.8	60,952.4
Switching	Non blocking Layer 1 throughput	3,251.0	40,000.0	9,398.5	40,000.0	59,523.8	40,000.0
Switching	Non blocking Layer 1 capacity	3,251.0	80,000.0	9,398.5	80,000.0	59,523.8	80,000.0

Ethernet test results

CRS310-8G+2S+IN		98DX226 all port test
Mode	Configuration	1518 byte		512 byte		64 byte
Mode	Configuration	kpps	Mbps	kpps	Mbps	kpps	Mbps
Bridging	none (fast path)	104,1	1264.2	119,1	487.8	141,1	72.2
Bridging	25 bridge filter rules	59,7	725.0	59,7	244.5	70,4	36.0
Routing	none (fast path)	104,1	1264.2	129,7	531.3	143,5	73.5
Routing	25 simple queues	56,7	688.6	57,9	237.2	65,2	33.4
Routing	25 ip filter rules	44,1	535.6	45,6	186.8	48,4	24.8

All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..
