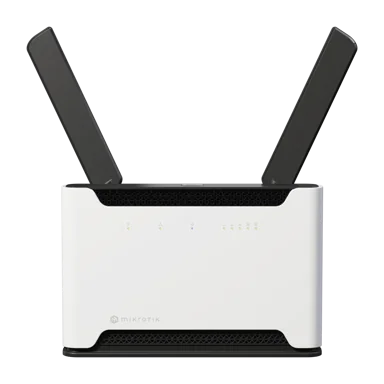

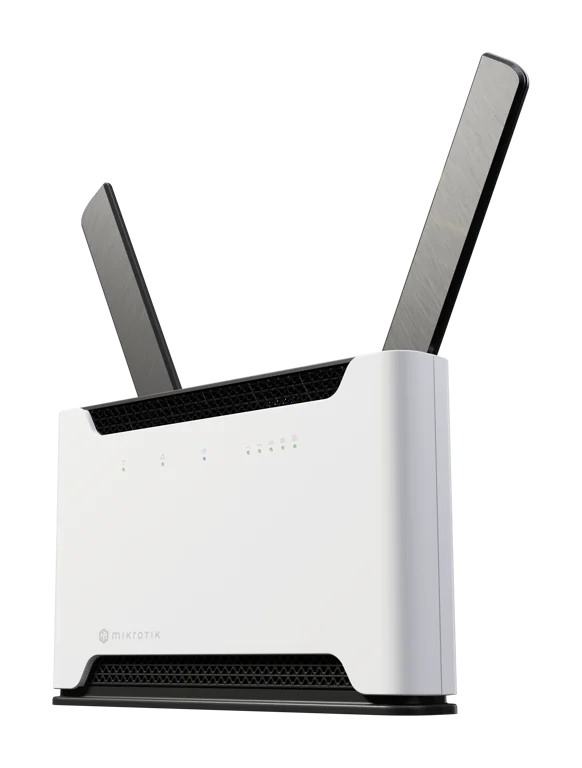

    Chateau LTE18 ax The best home AP just got even better. Generation 6 version of the Chateau LTE18. Much faster wireless, improved CPU, and now – with 2.5 Gigabit Ethernet!

    On the surface, the new Chateau is very similair to the previous models. We had a fantastic LTE18 launch with our partners at LMT – the leading mobile operator in Latvia. Our Chateau replaced the usual brands – and the client satisfaction skyrocketed. Most users appreciated better speed and stability, as well as the abundance of useful RouterOS features and general flexibility. And don’t forget the elegant look that fits right in anywhere – from traditional homes and luxury residences to modern office and corporate environments.

    The next obvious step in the Chateau series was perfecting the wireless capabilities. With the Generation6 802.11ax wireless standard and Wave 2 support, Chateau LTE18 ax can deliver unprecedented speed. If we compare it to the previous generation, we’re looking at up to 40% higher speed in the 5 GHz and up to 90% higher speed in the 2.4 GHz spectrum! We’ve made massive improvements to the wireless radio and antennas. Chateau LTE18 ax supports MIMO 4x4 on LTE. There are 4 built-in LTE antennas and 2 optional external network antennas for exceptional coverage in your whole home!

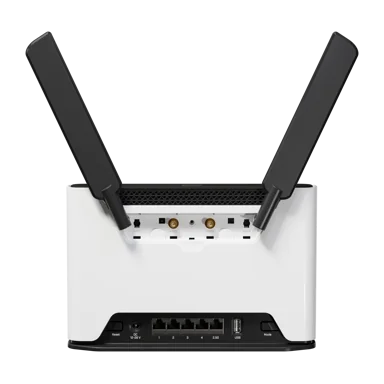

    With speeds like that, the ports also had to rise to the occasion. We kept four Gigabit Ethernet ports and added a 2.5 Gigabit Ethernet port on top. And let’s not forget the USB which can be handy for storage purposes.

    The modern quad-core CPU running at 1.8 GHz combined with a solid GB of RAM packs a hefty punch when it comes to heavy operations like complex firewall rules, IPsec hardware encryption, using more threads or experimenting with advanced RouterOS features. And with the addition of WPA3 advanced encryption support, you’re safer than ever before.

    The most advanced software on the market - RouterOS

    We have been making our own software since 1996. And over the years, we’ve managed to create the most powerful and flexible networking software on the market. With each new version, our priority remained the same: to provide users with the freedom to explore different setups and always have the right tools for the job. Run a secure VPN from the office directly to your home, enable parental control, QoS (traffic prioritization for certain needs, such as streaming), complex firewall rules, IPsec hardware acceleration, VLAN, e-mail or SMS notifications.. You can even automate complex trigger notifications (“Your bandwidth has reached X for Y minutes!”) and modify queues based on bandwidth usage. If you can imagine it – RouterOS can achieve it.

    There are no paywalls and no confusing subscriptions. You’re getting all the features - from consumer to enterprise-grade. For mobile operators and ISPs, this is groundbreaking. Finally - a single product to satisfy the most diverse group of people.

    Built with security in mind

    Not only does RouterOS come with robust security options, we also focus on the production security. There is no outsourcing, every Chateau device is assembled at our EU contract manufacturers, and all the components come from reputable, trusted partners – such as Qualcomm. We cooperate with European law-makers and work hard to ensure full compliance with all the necessary safety policies. MikroTik is all about smooth, long-term cooperation without surprises.

    Jack of all trades... master of many!

    Chateau is a remarkable choice for any mobile operator. It can be customized with a variety of labels or printed branding. And operators can use the TR-069 technology to create custom remote client management options, such as router configuration via the same web-page clients are using to pay the mobile bill. Advanced users, seasoned sysadmins, and networking enthusiasts can take advantage of the astounding depth of RouterOS. And the non-tech households can skip all that, using a simple, straightforward web-page instead. Now is the time for great networking without compromises. Secure remote work options and a blazing fast Internet connection are no longer a luxury. They are a necessity. And Chateau is the solution.

     Send purchase questions

    Specifications

    Details
    Product code S53UG+5HaxD2HaxD-TC&EG18-EA
    Architecture ARM 64bit
    CPU IPQ-6010
    CPU core count 4
    CPU nominal frequency auto (864 -1800) MHz
    RouterOS license 4
    Operating System RouterOS (v7 only)
    Size of RAM 1 GB
    Storage size 128 MB
    Storage type NAND
    MTBF Approximately 200'000 hours at 25C
    Tested ambient temperature -40°C to 65°C
    Suggested price $299.00

    Powering

    Details
    Number of DC inputs 1 (DC jack)
    DC jack input Voltage 12-28 V
    Max power consumption 19 W
    Max power consumption without attachments 16 W
    Cooling type Passive

    Mobile

    Details
    3G Category R8 (42.2Mbps Downlink, 11.2Mbps Uplink)
    3G bands 1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz)
    LTE Category 18 (1.2Gbps Downlink, 150Mbps Uplink)
    MIMO DL 4x4
    MIMO UL 1x1
    LTE FDD bands 1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz) / 28 (700MHz)
    LTE TDD bands 38 (2600MHz) / 40 (2300MHz) / 41 (2500MHz)

    Wireless specifications

    Details
    Wireless 2.4 GHz Max data rate 574 Mbit/s
    Wireless 2.4 GHz number of chains 2
    Wireless 2.4 GHz standards 802.11b/g/n/ax
    Antenna gain dBi for 2.4 GHz 3
    Wireless 2.4 GHz chip model QCN-5022
    Wireless 2.4 GHz generation Wi-Fi 6
    Wireless 5 GHz Max data rate 1200 Mbit/s
    Wireless 5 GHz number of chains 2
    Wireless 5 GHz standards 802.11a/n/ac/ax
    Antenna gain dBi for 5 GHz 6
    Wireless 5 GHz chip model QCN-5052
    Wireless 5 GHz generation Wi-Fi 6

    Ethernet

    Details
    10/100/1000 Ethernet ports 4
    Number of 2.5G Ethernet ports 1

    Peripherals

    Details
    Number of SIM slots 1 Modem (Micro SIM)
    Number of USB ports 1
    USB Power Reset Yes
    USB slot type USB type A
    Max USB current (A) 1

    Other

    Details
    PCB temperature monitor Yes
    Voltage Monitor Yes
    Mode button Yes

    Certification & Approvals

    Details
    Certification CE, EAC, ROHS
    IP 20

    Included parts

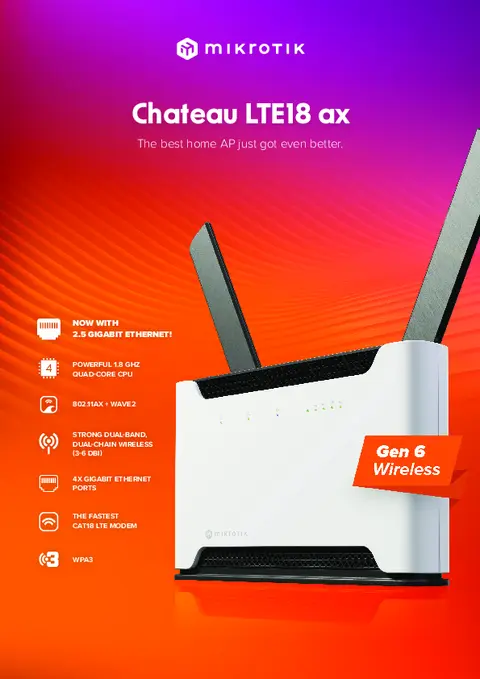

    BrochureOpen
    Quick GuideOpen
    User ManualOpen
    RouterOS current releaseDownload
    Block DiagramOpen
    RouterOS software manualOpen
    Declaration of conformityOpen (CE)

    High resolution images

    Ethernet test results

    S53UG+5HaxD2HaxD-TC&EG18-EAIPQ-6010 All port test
    ModeConfiguration1518 byte512 byte64 byte
    kppsMbpskppsMbpskppsMbps
    Bridgingnone (fast path)219.22662593.52430.91509.2821
    Bridging25 bridge filter rules218.12649.1460.31885.3468.5254.9
    Routingnone (fast path)218.92657.8596.62443.61228.3668.2
    Routing25 simple queues218.52653.5463.41898468.5254.9
    Routing25 ip filter rules215.32614.4279.61145.2281.8153.3
    1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
    2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
    3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

    The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..
