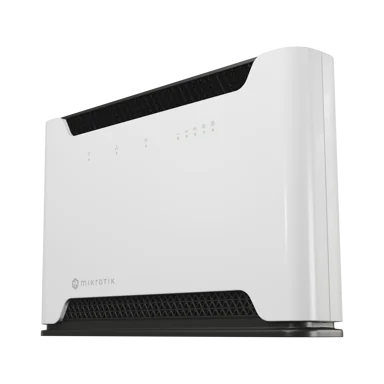

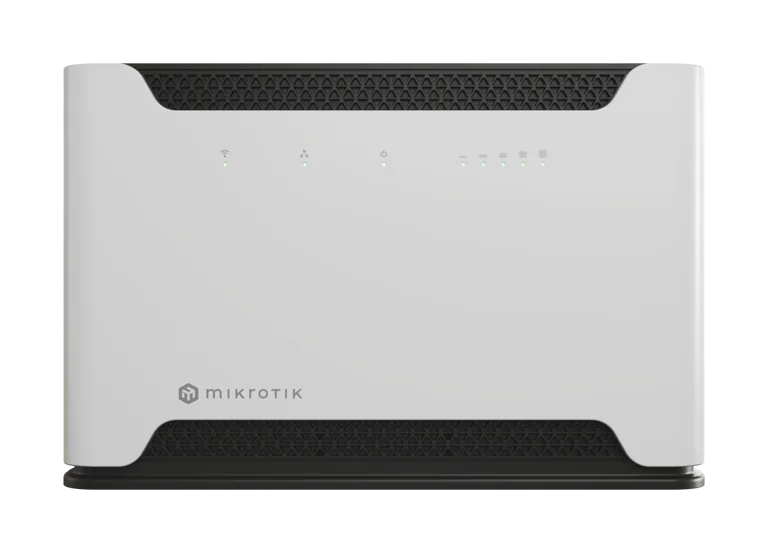

    Chateau 5G R16 Ultra-fast 5G mobile internet for every home or office – speeds go up, price goes down! Perfect for secure remote work VPNs anytime, anyplace!

    Do you dream of escaping the hustle and bustle of the busy city life and moving to the suburbs? Perhaps you’ve already made the move but are frustrated by the slow internet speeds? Fear not, because Chateau is here to solve all your connectivity problems. Going back to the city to finish some business? Once again – Chateau is the perfect companion for ultra-fast premium connectivity.

    Chateau 5G R16 is the 2023 upgrade of our bestselling 5G Chateau home and office router – designed to make 5G more affordable than ever. The new modem brings the price down while adding features like NR CA and 3GPP Release standard with extra ENDC combination support. In other words, much better connectivity across a wide range of different mobile operator towers! It can even simultaneously use the 5G and 4G bands to maximize the throughput! It also supports 4x4 MIMO for the lower frequency range, including band 8, 20, and 28 – for even better signal in the countryside. Wherever life takes you – Chateau can make it better!

    There are 5x Gigabit Ethernet ports – enough to connect most household devices: PCs, TVs, game consoles, and so on.

    More than just a router: try containers for home automation, ad blocking, simple web hosting, private DNS, network storage, IoT, and so much more.

    Latest version of our versatile RouterOS, a powerful quad-core ARM CPU and a USB port for extra storage – that’s all you need to step inside the exciting world of Linux container apps! Here are some neat container use-cases to explore with your brand new Chateau:

    Block all unwanted ads with PiHole hosted on your Chateau 5G R16!

    Host your web blog or a simple website on your router – without any additional hardware.

    Chateau 5G R16 can host the HomeAssistant app, which allows monitoring your CCTV cameras, temperature sensors, and other devices to create the smart home ecosystem of your dreams!

    You can even automate your home. For instance, wouldn’t it be nice if the air conditioning turned on automatically when it gets too hot? With Chateau’s container support that’s an easy ride!

    We can offer special project pricing and additional discounts for mobile operators to bring the costs down significantly!
     Send purchase questions

    Specifications

    Details
    Product code D53G-5HacD2HnD-TC&RG520F-EU
    Architecture ARM 32bit
    CPU IPQ-4019
    CPU core count 4
    CPU nominal frequency 448-896 (auto) MHz
    Switch chip model IPQ-4019
    Dimensions 240 x 156 x 44 mm
    RouterOS license 4
    Operating System RouterOS v7
    Size of RAM 256 MB
    Storage size 16 MB
    Storage type FLASH
    MTBF Approximately 200'000 hours at 25C
    Tested ambient temperature -40°C to 70°C
    IPsec hardware acceleration Yes
    Suggested price $485.00

    Powering

    Details
    Number of DC inputs 1 (DC jack)
    DC jack input Voltage 12-28 V
    Max power consumption 25 W
    Max power consumption without attachments 15 W
    Cooling type Passive

    Mobile

    Details
    3G Category R8 (42.2Mbps Downlink, 5.76Mbps Uplink)
    3G bands 5 (850MHz) / 8 (900MHz) / 1 (2100MHz)
    LTE Category 20 (2.0 Gbps Downlink, 200 Mbps Uplink)
    LTE FDD bands 5 (850MHz) / 20 (800MHz) / 28 (700MHz) / 3 (1800MHz) / 1 (2100MHz) / 7 (2600MHz) / 8 (900 MHz) / 32 (1500 MHz)
    LTE TDD bands 40 (2300MHz) / 41 (2500MHz) / 42 (3500MHz) / 43 (3700MHz) / 38 (2600MHz)
    5G NSA FDD bands 5 (850 MHz) / 8 (900 MHz) / 20 (800 MHz) / 28 (700 MHz) / 3 (1800 MHz) / 1 (2100 MHz) / 7 (2600 MHz)
    5G NSA TDD bands 75 (1500 MHz) / 40 (2300 MHz) / 41 (2500 MHz) / 77 (3700 MHz) / 38 (2600 MHz) / 78 (3500 MHz) / 76 (1500 MHz)
    5G SA FDD bands 5 (850 MHz) / 8 (900 MHz) / 20 (800 MHz) / 28 (700 MHz) / 3 (1800 MHz) / 1 (2100 MHz) / 7 (2600 MHz)
    5G SA TDD bands 76 (1500 MHz) / 40 (2300 MHz) / 41 (2500 MHz) / 77 (3700 MHz) / 38 (2600 MHz) / 78 (3500 MHz) / 75 (1500 MHz)
    TAC 86945405

    Wireless specifications

    Details
    Wireless 2.4 GHz Max data rate 300 Mbit/s
    Wireless 2.4 GHz number of chains 2
    Wireless 2.4 GHz standards 802.11a/b/g/n
    Antenna gain dBi for 2.4 GHz 3
    Wireless 2.4 GHz chip model IPQ-4019
    Wireless 2.4 GHz generation Wi-Fi 4
    Wireless 5 GHz Max data rate 867 Mbit/s
    Wireless 5 GHz number of chains 2
    Wireless 5 GHz standards 802.11a/n/ac
    Antenna gain dBi for 5 GHz 5.5
    Wireless 5 GHz chip model IPQ-4019
    Wireless 5 GHz generation Wi-Fi 5

    Ethernet

    Details
    10/100/1000 Ethernet ports 5

    Peripherals

    Details
    Number of SIM slots 1 Modem (Micro SIM)
    Number of USB ports 1
    USB Power Reset Yes
    USB slot type USB type A
    Max USB current (A) 1
    Number of M.2 slots 1

    Other

    Details
    Mode button Yes

    Certification & Approvals

    Details
    Certification CE, EAC, ROHS
    IP 20

    Wireless specifications

    5 GHzTransmit (dBm)Receive Sensitivity
    6MBit/s26-96
    54MBit/s22-80
    MCS026-96
    MCS721-75
    MCS919-70

    Included parts

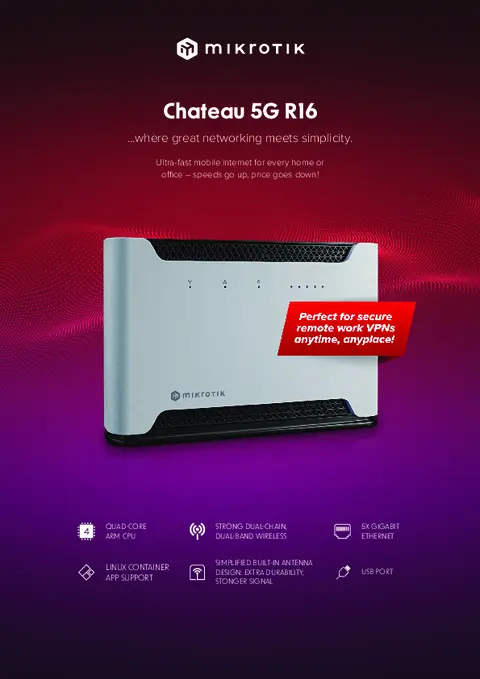

    BrochureOpen
    Quick GuideOpen
    User manualOpen
    RouterOS software manualOpen
    Declaration of conformityOpen (CE)

    High resolution images

    Ethernet test results

    D53G-5HacD2HnD-TC&RG520F-EUIPQ-4019 1G all port test
    ModeConfiguration1518 byte512 byte64 byte
    kppsMbpskppsMbpskppsMbps
    Bridgingnone (fast path)162,51973.4469,91924.71488,4762.1
    Bridging25 bridge filter rules162,51973.4351,21438.5352,1180.3
    Routingnone (fast path)162,51973.4469,91924.71488,4762.1
    Routing25 simple queues162,51973.4468,61919.4493,4252.6
    Routing25 ip filter rules162,51973.4222,8912.6227,4116.4
    1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
    2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
    3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

    IPsec test results

    D53G-5HacD2HnD-TC&RG520F-EUIPQ-4018 IPsec throughput
    ModeConfiguration1400 byte512 byte64 byte
    kppsMbpskppsMbpskppsMbps
    Single tunnelAES-128-CBC + SHA137.9424.559241.761.631.5
    256 tunnelsAES-128-CBC + SHA136403.238.5157.739.820.4
    256 tunnelsAES-128-CBC + SHA25636403.238.5157.739.820.4
    256 tunnelsAES-256-CBC + SHA134.4385.337.9155.239.820.4
    256 tunnelsAES-256-CBC + SHA25634.4385.337.9155.239.820.4
    1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
    2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1400 byte packet sizes
    3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

    The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..
