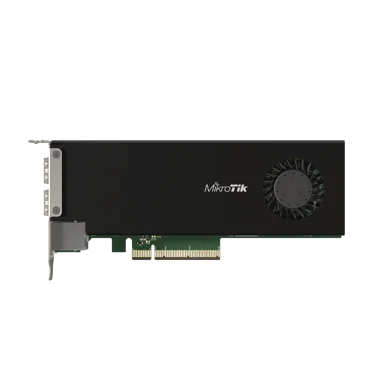

    CCR2004-1G-2XS-PCIe A smart PCIe network interface card that adds full-fledged router capabilities to your servers. The smart and easy way to create 25 Gigabit networks if you want to save space in your server room!

    Save space in your server room by adding a real CCR2004.. within the server itself! This unique product combines a simple 2x 25 Gigabit PCIe Ethernet adapter with the impressive capabilities of a fully-fledged router.

    By default, the PCIe interface will show up as four virtual Ethernet interfaces. Two interfaces in passthrough mode to the 25G SFP28 cages. Remaining two virtual Ethernet-PCIe interfaces are bridged with the Gigabit Ethernet port for management access. The user can configure all interfaces and settings freely since we are running fully functional RouterOS here.

    To get this CCR device to work as an NIC, a new Passthrough mode was implemented. Basically, a FastForward FastPath mode that can also pass hardware link statuses.

    This NIC can reach wire-speed (100Gbps) with Jumbo frames. It ensures that in most server setups this CCR network card will not be the bottleneck.

    With 4 GB of RAM, 128 MB of NAND storage, and a powerful quad-core ARMv8 64-bit CPU, this device can handle a lot: firewalls, user management and access control for home media and file servers, and even some traffic control in data centers – without the need for a stand-alone router.

    This form-factor does come with certain limitations that you should keep in mind. The CCR NIC card needs some time to boot up compared to ASIC-based setups. If the host system is up before the CCR card, it will not appear among the available devices. You should add a PCIe device initialization delay after power-up in the BIOS. Or you will need to re-initialize the PCIe devices from the HOST system.

    We are looking forward to see your unique use-cases for this unconventional device: a simple high-speed networking card combined with a powerful Cloud Core Router.

    Unleash the potential of your server with the fierce power of RouterOS!

     Send purchase questions

    Specifications

    Details
    Product code CCR2004-1G-2XS-PCIe
    Architecture ARM 64bit
    CPU AL52400
    CPU core count 4
    CPU nominal frequency 1500 MHz
    Dimensions 170 x 69 x 18 mm
    RouterOS license 6
    Operating System RouterOS
    Size of RAM 4 GB
    Storage size 128 MB
    Storage type NAND
    MTBF Approximately 200'000 hours at 25C
    Tested ambient temperature -20°C to 60°C
    Suggested price $199.00

    Powering

    Details
    Max power consumption 29 W
    Max power consumption without attachments 22 W
    Cooling type 1 fan

    Ethernet

    Details
    10/100/1000 Ethernet ports 1

    Fiber

    Details
    Number of 25G SFP28 ports 2

    Other

    Details
    CPU temperature monitor Yes
    Current Monitor Yes
    PCB temperature monitor Yes
    Voltage Monitor Yes

    Certification & Approvals

    Details
    Certification CE, EAC, ROHS
    IP 20
    BrochureOpen
    Quick GuideOpen
    User ManualOpen
    RouterOS current releaseDownload
    DimensionsOpen
    Block DiagramOpen
    SFP compatibility listOpen
    RouterOS software manualOpen
    Declaration of conformityOpen (CE)

    High resolution images

    Ethernet test results

    CCR2004-1G-2XS-PCIeAL52400 PCIe card port test
    ModeConfiguration1518 byte512 byte64 byte
    kppsMbpskppsMbpskppsMbps
    Bridgingnone (fast path)992.312050.51310.75368.62441.41250.0
    Bridging25 bridge filter rules728.48845.7822.43368.61193.9611.3
    Routingnone (fast path)1001.112157.41380.45654.12441.41250.0
    Routing25 simple queues798.49695.8913.13740.11437.5736.0
    Routing25 ip filter rules542.66589.3606.12482.6776.3397.5
    1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
    2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
    3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

    The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..
