    CCR2004-16G-2S+ This powerful and affordable router crushes all previous CCR models in single-core performance. 16x Gigabit Ethernet ports, 2x10G SFP+ cages, active cooling and the best single-core performance per watt & best overall performance per watt among all the CCR devices.

    Like the other models in CCR2004 series, this CCR also features the Annapurna Labs Alpine v2 CPU with 4x 64-bit ARMv8-A Cortex-A57 cores running at 1,7GHz. But here’s the difference. This powerful router crushes all previous CCR models in single-core performance, and that is the most important aspect when it comes to heavy operations based on per-connection processing. Like queues, for example.But that’s not all! It also has the best single-core performance per watt and best overall performance per watt among all the CCR devices. Better for the planet, better for the bills, it’s a win-win!

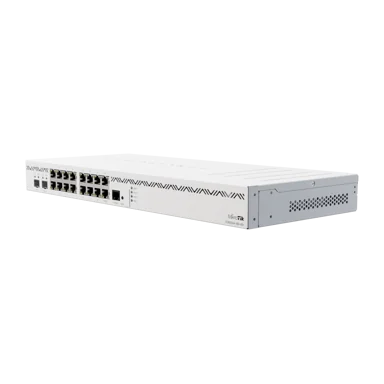

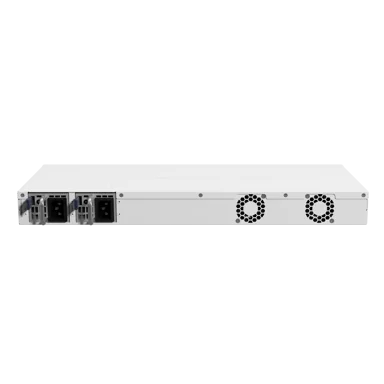

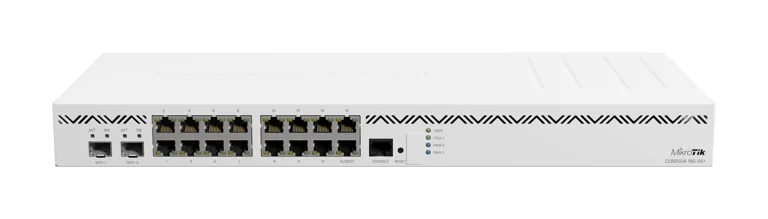

    The new router has 18 wired ports, including 16x Gigabit Ethernet ports and two 10G SFP+ cages. It also has a RJ-45 console port on the front panel. Like all CCR devices, it comes in a classic white 1U rackmount case. Built-in dual redundant power supplies are included, so you have one less thing to worry about. And, of course, there is active cooling to keep things nice and cool. Each group of 8 Gigabit Ethernet ports is connected to a separate Marvell Amethyst family switch-chip. Each switch chip has a 10 Gbps full-duplex line connected to the CPU. The same goes for each SFP+ cage - a separate 10 Gbps full-duplex line. Boards come with 4GB of DDR4 RAM and 128MB of NAND storage.

    So as you can see - no bottlenecks. As long as the CPU can handle the processing, all ports can reach wire speed. And this CPU is a beast that can handle a lot. If we look at the performance, you can see that it is trading blows with our CCR1009. Even surpassing it in CPU-heavy configurations! And if that wasn’t enough – it can even reach the performance of CCR1016.

    The best part? This brand new CCR is among the most affordable options out there - not only within the CCR series, but on the market in general.One of the most common ways to use this device would be: Gigabit Ethernet ports for the internal network; SFP+ ports for downlink and uplink. The perfect all-in-one solution for small and medium-sized businesses. Easy and efficient.

    With the new CCR2004, you can take your office network to the next level. Without breaking the bank.

     Send purchase questions

    Specifications

    Details
    Product code CCR2004-16G-2S+
    Architecture ARM 64bit
    CPU AL32400
    CPU core count 4
    CPU nominal frequency 1700 MHz
    Switch chip model 88E6191X
    Dimensions 443 x 210 x 44 mm
    RouterOS license 6
    Operating System RouterOS v7
    Size of RAM 4 GB
    Storage size 128 MB
    Storage type NAND
    MTBF Approximately 200'000 hours at 25C
    Tested ambient temperature -20°C to 60°C
    IPsec hardware acceleration Yes
    Suggested price $465.00

    Powering

    Details
    Number of AC inputs 2
    AC input range 100-240
    Frequency (Hz) 50-60
    Max power consumption 48 W
    Max power consumption without attachments 35 W
    Cooling type 2 fans

    Ethernet

    Details
    10/100/1000 Ethernet ports 16

    Fiber

    Details
    SFP+ ports 2

    Peripherals

    Details
    Serial console port RJ45

    Other

    Details
    CPU temperature monitor Yes
    PCB temperature monitor Yes
    Voltage Monitor Yes

    Certification & Approvals

    Details
    Certification CE, EAC, ROHS
    IP IP20

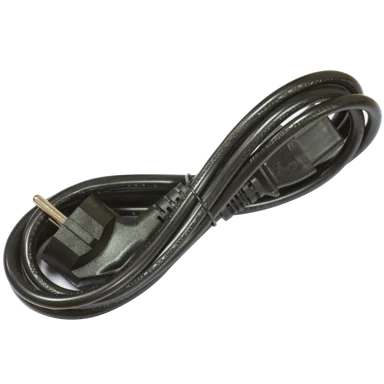

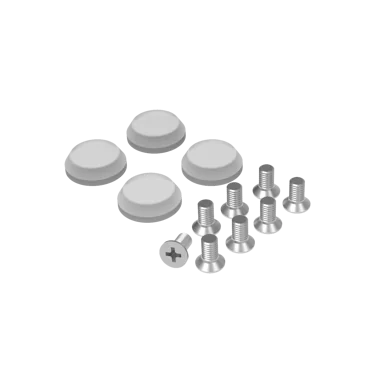

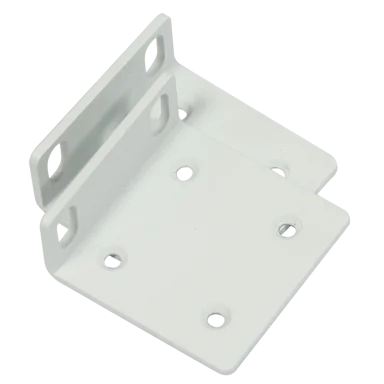

    Included parts

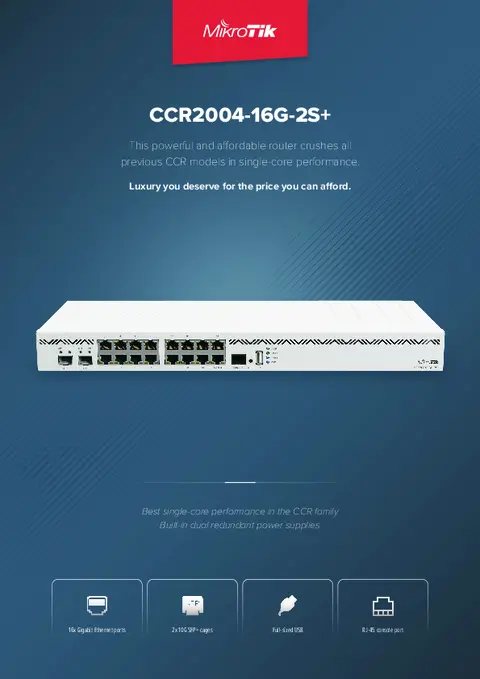

    BrochureOpen
    Quick GuideOpen
    User ManualOpen
    RouterOS current releaseDownload
    Block DiagramOpen
    SFP compatibility listOpen
    RouterOS software manualOpen
    Declaration of conformityOpen (CE)

    High resolution images

    Ethernet test results

    CCR2004-16G-2S+r2AL32400 all port test (CCR2004-16G-2S+)
    ModeConfiguration1518 byte512 byte64 byte
    kppsMbpskppsMbpskppsMbps
    Bridgingnone (fast path)2925.935532.16775.127750.89776.75318.5
    Bridging25 bridge filter rules1396.616960.31410.75778.21375.2748.1
    Routingnone (fast path)2925.935532.1674927643.98260.64493.8
    Routing25 simple queues1186.314406.419337917.61196.9651.1
    Routing25 ip filter rules722.28770.41114.74565.8724.4394.1
    1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
    2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
    3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

    IPsec test results

    CCR2004-16G-2S+r2AL32400 IPsec throughput
    ModeConfiguration1400 byte512 byte64 byte
    kppsMbpskppsMbpskppsMbps
    Single tunnelAES-128-CBC + SHA12032273.6204.1836202.2103.5
    256 tunnelsAES-128-CBC + SHA1232.42602.9230.5944.1222.2113.8
    256 tunnelsAES-128-CBC + SHA256232.42602.9230.5944.1222.2113.8
    256 tunnelsAES-256-CBC + SHA1232.32601.8227.3931238.1121.9
    256 tunnelsAES-256-CBC + SHA256232.32601.8227.3931238.1121.9
    1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
    2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1400 byte packet sizes
    3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

    The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..
