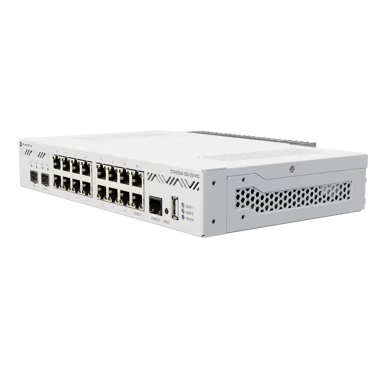

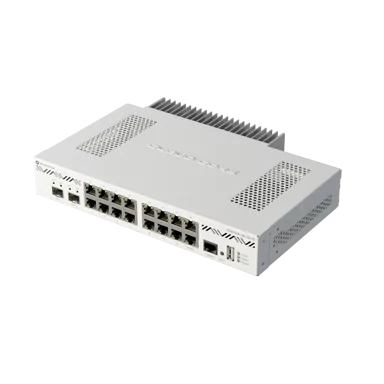

    CCR2004-16G-2S+PC Up to 300% faster than the previous CCR1009 routers - in a blissful silence! Luxury you deserve for the price you can afford. 16x Gigabit Ethernet ports, 2x10G SFP+ cages.

    Like the other models in CCR2004 series, this CCR also features the Amazon Annapurna Labs Alpine v2 CPU with 4x 64-bit ARMv8-A Cortex-A57 cores. While this CPU is running at 1.2 GHz, the router can be 3x as fast than the previous generation CCR’s. This is the silent powerhouse. Enjoy all the power of a real CCR in peace and quiet. Get rid of all the hum and buzz in your office, studio, server room or homelab without sacrificing the performance!

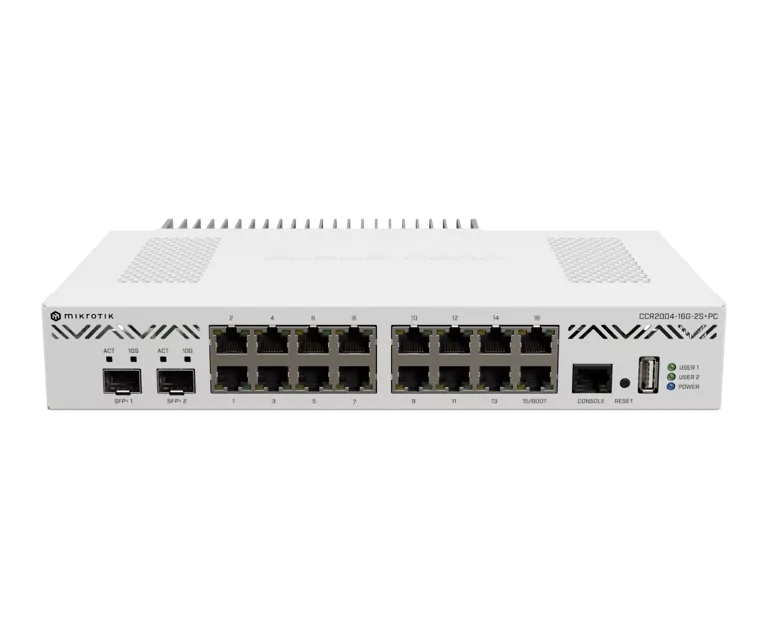

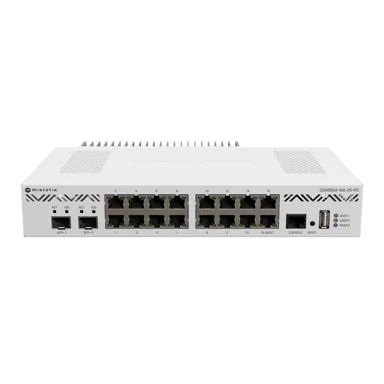

    The new router has 18 wired ports, including 16x Gigabit Ethernet ports and two 10G SFP+ cages. It also has a RJ-45 console port on the front panel.

    Each group of 8 Gigabit Ethernet ports is connected to a separate Marvell Amethyst family switch-chip. Each switch chip has a 10 Gbps full-duplex line connected to the CPU. The same goes for each SFP+ cage - a separate 10 Gbps full-duplex line. Boards come with 4GB of DDR4 RAM and 128MB of NAND storage.

    So as you can see - no bottlenecks. As long as the CPU can handle the processing, all ports can reach wire speed. And this CPU is a beast that can handle a lot. If we look at the performance, you can see that it is trading blows with our CCR1009.

    The best part? This brand new CCR is among the most affordable options out there - not only within the CCR series, but on the market in general. One of the most common ways to use this device would be: Gigabit Ethernet ports for the internal network; SFP+ ports for downlink and uplink. The perfect all-in-one solution for small and medium-sized businesses. Easy and efficient.

    With the new CCR2004, you can take your office network to the next level. Without breaking the bank.

     Send purchase questions

    Specifications

    Details
    Product code CCR2004-16G-2S+PC
    Architecture ARM 64bit
    CPU AL32400
    CPU core count 4
    CPU nominal frequency 1200 MHz
    Switch chip model 88E6191
    Dimensions 272 x 195 x 44 mm
    RouterOS license 6
    Operating System RouterOS v7
    Size of RAM 4 GB
    Storage size 128 MB
    Storage type NAND
    MTBF Approximately 200'000 hours at 25C
    Tested ambient temperature -20°C to 60°C
    IPsec hardware acceleration Yes
    Suggested price $465.00

    Powering

    Details

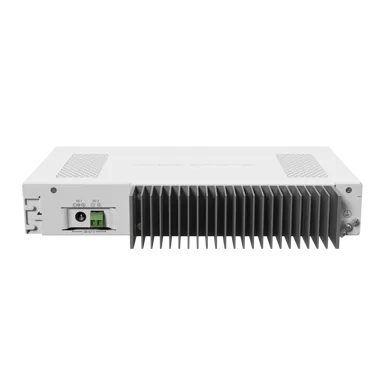

    Number of DC inputs 2 (DC jack, 2-pin terminal)
    DC jack input Voltage 36-57 V
    2-pin terminal input Voltage 36-57 V
    Max power consumption 36 W
    Max power consumption without attachments 30 W
    Cooling type Passive

    Ethernet

    Details
    10/100/1000 Ethernet ports 16

    Fiber

    Details
    SFP+ ports 2

    Peripherals

    Details
    Serial console port RJ45

    Other

    Details
    CPU temperature monitor Yes
    PCB temperature monitor Yes
    Voltage Monitor Yes

    Certification & Approvals

    Details
    Certification CE, EAC, ROHS
    IP IP 20

    Included parts

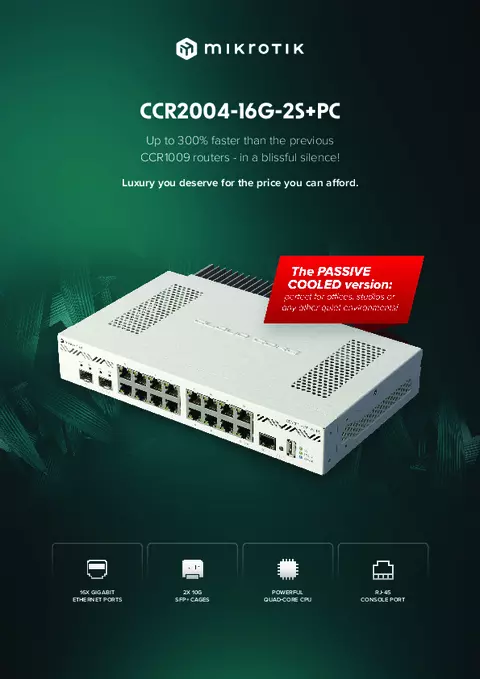

    BrochureOpen
    Quick GuideOpen
    User ManualOpen
    RouterOS current releaseDownload
    Block DiagramOpen
    SFP compatibility listOpen
    RouterOS software manualOpen
    Declaration of conformityOpen (CE)

    High resolution images

    #
    #
    #
    #
    #

    Ethernet test results

    CCR2004-16G-2S+PCAL32400 all port test (1200 MHz)
    ModeConfiguration1518 byte512 byte64 byte
    kppsMbpskppsMbpskppsMbps
    Bridgingnone (fast path)2650.732190.35715.423410.18079.94395.5
    Bridging25 bridge filter rules1110.313483.81113.54560.91119608.7
    Routingnone (fast path)2573.631253.45061.120730.472263930.9
    Routing25 simple queues1084.613171.61106.14530.41079.4587.2
    Routing25 ip filter rules6688112.5675.82767.9683.9372.1
    1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
    2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
    3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

    IPsec test results

    CCR2004-16G-2S+PCAL32400 IPsec throughput
    ModeConfiguration1400 byte512 byte64 byte
    kppsMbpskppsMbpskppsMbps
    Single tunnelAES-128-CBC + SHA12032273.6204.1836202.2103.5
    256 tunnelsAES-128-CBC + SHA1232.42602.9230.5944.1222.2113.8
    256 tunnelsAES-128-CBC + SHA256232.42602.9230.5944.1222.2113.8
    256 tunnelsAES-256-CBC + SHA1232.32601.8227.3931238.1121.9
    256 tunnelsAES-256-CBC + SHA256232.32601.8227.3931238.1121.9
    1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
    2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1400 byte packet sizes
    3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

    The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..
