The SXTsq Lite5 is a compact and lightweight outdoor wireless device with an integrated antenna. Perfect for point to point links of up to 12 kilometers or as a CPE unit. It is compact, weatherproof and easy to mount. The SXTsq Lite5 retains a 16dBi antenna like the SXT Lite5, our previous model, yet the antenna design has been improved and the physical size has been dramatically reduced - the SXTsq is two times thinner (see photos for comparison).

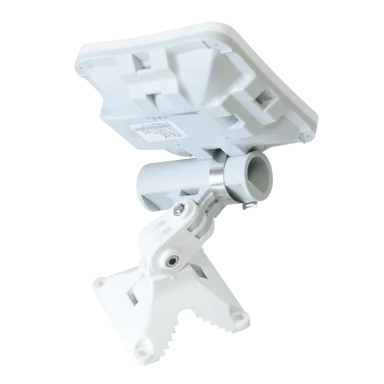

The device can be mounted on horizontal and vertical poles and masts, but for precise alignment, separately available is the QuickMount Pro, which allows to adjust in every angle (see photo and related product).

- SXTsq Lite5-US (USA) is factory locked for 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.

- SXTsq Lite5 (International) supports 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).

Specifications

Details
Product code	RBSXTsq5nD
Architecture	MIPSBE
CPU	AR9344
CPU core count	1
CPU nominal frequency	600 MHz
Dimensions	129x129x34mm
License level	3
Operating System	RouterOS
Size of RAM	64 MB
Storage size	16 MB
Storage type	FLASH
Tested ambient temperature	-40°C to 70°C
Suggested price	$46.00

Powering

Details
PoE in	Passive PoE
PoE in input Voltage	10-30 V
Number of DC inputs	1 (PoE-IN)
Max power consumption	6 W

Wireless

Details
Wireless 5 GHz Max data rate	300 Mbit/s
Wireless 5 GHz number of chains	2
Wireless 5 GHz standards	802.11a/n
Antenna gain dBi for 5 GHz	16
Wireless 5 GHz chip model	AR9344
Wireless 5 GHz generation	Wi-Fi 4

Ethernet

Details
10/100 Ethernet ports	1

Certification & Approvals

Details
Certification	CE/RED, FCC, IC, EAC, ROHS

Wireless specifications

5 GHz	Transmit (dBm)	Receive Sensitivity
6MBit/s	25	-96
54MBit/s	20	-80
MCS0	25	-96
MCS7	19	-75

Included parts

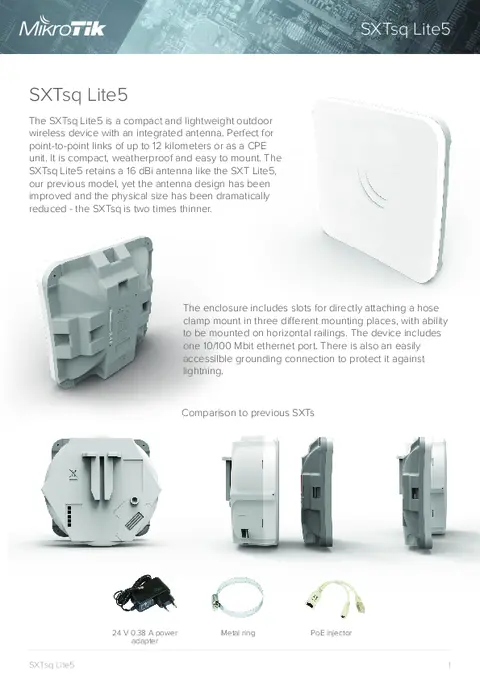

BrochureOpen

Quick GuideOpen

RouterOS current releaseDownload

Selection guide for PtP linksOpen

Selection guide for PtMP linksOpen

Block DiagramOpen

RouterOS software manualOpen

Declaration of conformityOpen (CE)

FCC Grant of Certification (5GHz)Open

ANT files

171205110813pattern.antDownload

High resolution images

Ethernet test results

RBSXTsq5nD		AR9344 100M 1 port test
Mode	Configuration	1518 byte		512 byte		64 byte
Mode	Configuration	kpps	Mbps	kpps	Mbps	kpps	Mbps
Bridging	none (fast path)	8.1	98.4	23.5	96.3	148.0	75.8
Bridging	25 bridge filter rules	8.1	98.4	23.5	96.3	87.6	44.9
Routing	none (fast path)	8.1	98.4	23.5	96.3	148.0	75.8
Routing	25 simple queues	8.1	98.4	23.5	96.3	106.6	54.6
Routing	25 ip filter rules	8.1	98.4	23.5	96.3	60.5	31.0

All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
