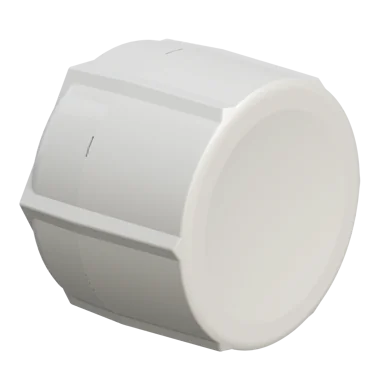

SXT LTE
SXT CPE with 3 (1800MHz) and 7 (2600MHz) LTE FDD band support, 9dBi 60 degree antenna, 400Mhz CPU, 64MB RAM, enclosure, PoE and PSU (RouterOS L3)
The SXT LTE (product code RBSXTLTE3-7) is a special variant of our popular SXT device, and doesn’t include a 802.11 wireless device. Instead, it has a built in high quality LTE Category 3 modem for speeds of up to 100Mbit/s downlink and 50 Mbit/s uplink.
A perfect device for remote locations that are within cellular network coverage. Due to it’s professional LTE chip and high gain antenna, it can provide connectivity for your building even where cell phones can’t.
The signal LEDs show LTE signal level for easy positioning. The SXT LTE supports the popular LTE FDD bands 3 (1800MHz) and 7 (2600MHz), has a miniSIM slot and is not backwards compatible with older networks.
Specification
- Product code RBSXTLTE3-7
- Suggested price $129.00
- Architecture MIPSBE
- CPU AR7241
- CPU core count 1
- CPU nominal frequency 400 MHz
- Dimensions 140x140x105mm
- RouterOS license 3
- Operating System RouterOS
- Size of RAM 64 MB
- Storage size 128 MB
- Storage type NAND
- MTBF Approximately 200'000 hours at 25C
- Tested ambient temperature -40°C to 70°C
- Number of DC inputs 1 (PoE-IN)
- Max power consumption 5 W
- Max power consumption without attachments 5W
- PoE in Passive PoE
- Cooling type Passive
- PoE in input Voltage 11-57 V
- LTE Category 3 (100Mbit/s Downlink, 50Mbit/s Uplink)
-
LTE FDD bands
3 (1800MHz)
7 (2600MHz)
- TAC 35615906
- Antenna gain 9
- 10/100 Ethernet ports 1
- Number of SIM slots 1 Modem (Mini SIM)
- PCB temperature monitor Yes
- Voltage Monitor Yes
- Beeper Yes
| RBSXTLTE3-7 | AR7241 100M 1 port test | ||||||
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 8.1 | 98.6 | 23.5 | 96.3 | 148.0 | 75.8 |
| Bridging | 25 bridge filter rules | 8.1 | 98.6 | 23.5 | 96.3 | 53.7 | 27.5 |
| Routing | none (fast path) | 8.1 | 98.6 | 23.5 | 96.3 | 148.0 | 75.8 |
| Routing | 25 simple queues | 8.1 | 98.6 | 23.5 | 96.3 | 92.8 | 47.5 |
| Routing | 25 ip filter rules | 8.1 | 98.6 | 23.5 | 96.3 | 37.5 | 19.2 |
- All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
- Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
- Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
