MikroTik Routers and Wireless - Products: SXT Sixpack

Discontinued

SXT SA5 is a low cost, high speed gigabit 5GHz outdoor wireless sector access point. It has a ninety degree antenna to provide a wider
coverage than our previous SXT units. Complete with a ready to mount enclosure and built-in 14dBi antenna, the package contains everything you need to set it up in a matter of minutes.

SXT 5 is a low cost, high speed 5GHz wireless device. It has a dual chain antenna and supports 802.11n and Nv2 TDMA technology to achieve 200Mbit throughput speed! Complete with a ready to mount enclosure and built-in antenna, this is the perfect CPE!

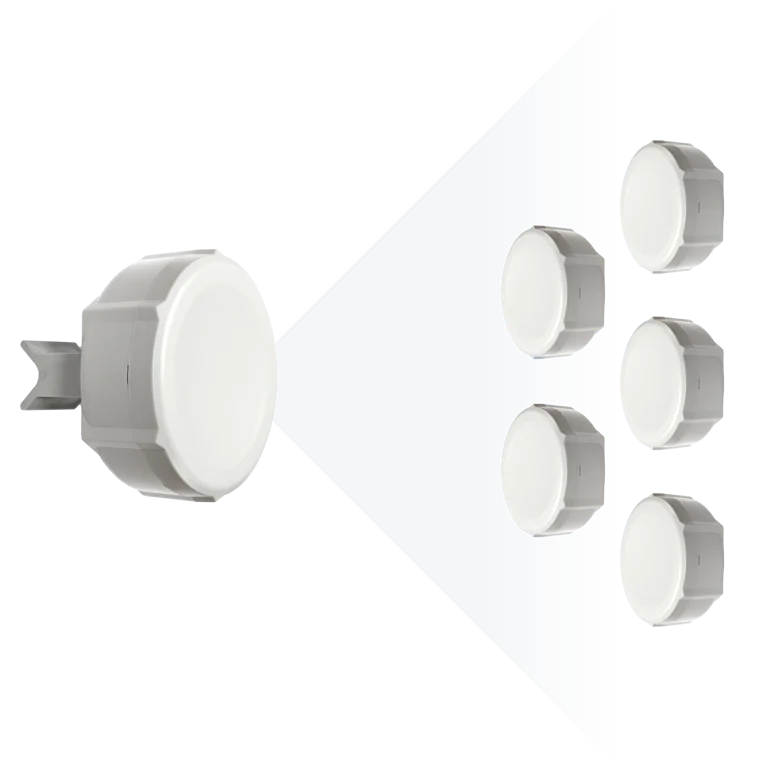

We are now offering the SXT SA5 bundled with FIVE SXT-5 client devices -for the price of five SXT 5 units, you get a complete kit.

SXT install guide:

Send purchase questions

Specifications

Details
Product code	RBSXTG-5HPnD-SAr2
Architecture	MIPSBE
CPU	AR9344
CPU core count	1
CPU nominal frequency	600 MHz
RouterOS license	4
Operating System	RouterOS
Size of RAM	64 MB
Storage size	128 MB
Storage type	NAND
MTBF	Approximately 200'000 hours at 25C
Tested ambient temperature	-30°C to 70°C
Suggested price	$445.00

Powering

Details
Number of DC inputs	1 (PoE-IN)
Max power consumption	11 W
Cooling type	Passive
PoE in	Passive PoE
PoE in input Voltage	6-30 V

Wireless specifications

Details
Wireless 5 GHz Max data rate	300 Mbit/s
Wireless 5 GHz number of chains	2
Wireless 5 GHz standards	802.11a/n
Antenna gain dBi for 5 GHz	14
Wireless 5 GHz chip model	AR9344
Wireless 5 GHz generation	Wi-Fi 4

Ethernet

Details
10/100/1000 Ethernet ports	1

Peripherals

Details
Number of USB ports	1
USB Power Reset	Yes
USB slot type	USB type A
Max USB current (A)	1

Other

Details
PCB temperature monitor	Yes
Voltage Monitor	Yes
Beeper	Yes

Certification & Approvals

Details
Certification	CE, FCC, IC, EAC, ROHS
IP	IP54

Wireless specifications

5 GHz	Transmit (dBm)	Receive Sensitivity
6MBit/s	30	-96
54MBit/s	27	-80
MCS0	30	-95
MCS7	26	-73

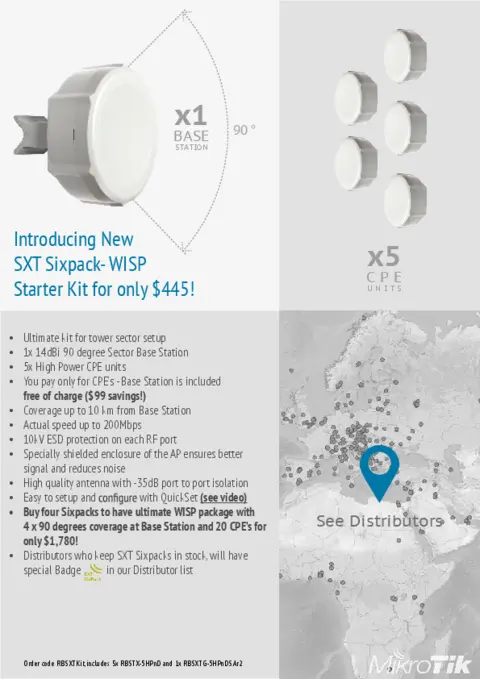

BrochureOpen

Quick GuideOpen

RouterOS current release

Download

RouterBoot firmware Download

Antenna patternsOpen

RouterOS software manualOpen

Declaration of conformityOpen (CE)

High resolution images

Ethernet test results

RBSXTKit		AR9344 1G 1 port test
Mode	Configuration	1518 byte		512 byte		64 byte
Mode	Configuration	kpps	Mbps	kpps	Mbps	kpps	Mbps
Bridging	none (fast path)	81.0	983.7	232.0	950.3	269.6	138.0
Bridging	25 bridge filter rules	81.0	983.7	86.0	352.3	87.6	44.9
Routing	none (fast path)	81.0	983.7	210.0	860.2	226.9	116.2
Routing	25 simple queues	81.0	983.7	103.9	425.6	106.6	54.6
Routing	25 ip filter rules	56.8	689.8	59.6	244.1	60.5	31.0

All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..
