Discontinued
RB250GS
Gigabit switch Five ports Web interface Powered by SwOS
PoE

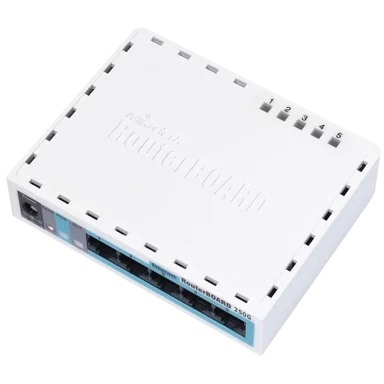

RB250GS
RB250GS is an Ethernet switch. It has five Gigabit ethernet ports powered by an Atheros Switch Chip.
It is powered by a new operating system designed specifically for MikroTik Switch products - SwOS. SwOS is configurable from your web browser. It gives you all the basic functionality for a managed switch, plus more: Allows to manage port-to-portforwarding, apply MAC filter, configure VLANs, mirror traffic, apply bandwidth limitation and even adjust some MAC and IP header fields.
Box contains: RB250GS, plastic case, power supply
Specification
Specifications
- Product code RB250GS
- Suggested price $39.95
- Dimensions 113x89x28mm
- Operating System MikroTik SwOS
- MTBF Approximately 100'000 hours at 25C
- Tested ambient temperature -25℃ to +65℃
Powering
- Number of DC inputs 1
- Max power consumption without attachments 6W
- PoE in Passive PoE
Ethernet
- 10/100/1000 Ethernet ports 5
Note
The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase.
Switching results
| RB250GS | |||||||
|---|---|---|---|---|---|---|---|
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Switching | Non blocking Layer 2 throughput | 406.4 | 4,935.0 | 1,174.8 | 4,812.0 | 7,440.5 | 3,809.5 |
| Switching | Non blocking Layer 2 capacity | 406.4 | 9,870.0 | 1,174.8 | 9,624.1 | 7,440.5 | 7,619.0 |
| Switching | Non blocking Layer 1 throughput | 406.4 | 5,000.0 | 1,174.8 | 5,000.0 | 7,440.5 | 5,000.0 |
| Switching | Non blocking Layer 1 capacity | 406.4 | 10,000.0 | 1,174.8 | 10,000.0 | 7,440.5 | 10,000.0 |
Documents
Download images:
RB250GS
Format:
png
Download
Latest SwitchOS release v1.17 download files for rb250 devices.
