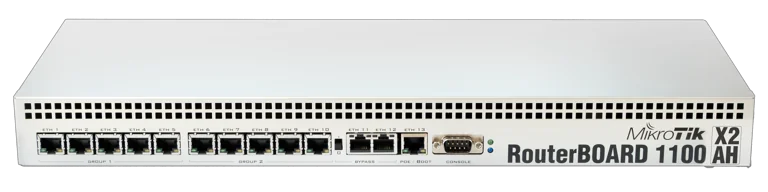

    RB1100Hx2

    This device provides best performaance 1U rackmount Gigabit Ethernet router for great price - with a dual core CPU, it can reach up to a million packets per second and costs as little as $445!

    It has thirteen individual gigabit Ethernet ports, two 5-port switch groups, and includes Ethernet bypass capability. 1GB of SODIMM RAM are included, there is one microSD card slot, a beeper and a serial port.

    The RB1100Hx2 is powered by RouterOS, a fully featured routing operating system which has been continuously improved for fifteen years. Dynamic routing, hotspot, firewall, MPLS, VPN, advanced quality of service, load balancing and bonding, real-time configuration and monitoring - just a few of the vast number of features supported by RouterOS.

    The RB1100Hx2 comes preinstalled in a 1U aluminium rackmount case, power supply and power plug, assembled and ready to deploy.

    General

    Details
    Product code RB1100Hx2
    CPU P2020
    CPU core count 2
    CPU nominal frequency 1066MHz
    Dimensions 1U case: 44 x 176 x 442 mm, 1200g. Board only: 365g
    License level Level6
    Operating System RouterOS
    Size of RAM 1GB
    Tested ambient temperature -30C to +60C
    Architecture PPC
    Suggested price $395.00

    Powering

    Details
    Number of DC inputs 110/220V
    PoE in 12-24V

    Ethernet

    Details
    10/100 Ethernet ports 13
    10/100/1000 Ethernet ports Yes

    Peripherals

    Details
    Memory card type microSD
    Memory Cards 1

    Other

    Details
    CPU temperature monitor Yes
    Current Monitor Yes
    PCB temperature monitor yes
    Voltage Monitor yes

    More info

    Ethernet test results

    RB1100Hx2P2020 1G all port test
    ModeConfiguration1518 byte512 byte64 byte
    kppsMbpskppsMbpskppsMbps
    Bridgingnone (fast path)406.04,930.5704.02,883.61,690.0865.3
    Bridging25 bridge filter rules308.03,740.4396.01,622.0412.0210.9
    Routingnone (fast path)345.04,189.7704.02,883.61,495.0765.4
    Routing25 simple queues258.03,133.2616.02,523.1654.0334.8
    Routing25 ip filter rules243.02,951.0262.01,073.2278.0142.3
    1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
    2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
    3. Values in Italic indicate that max throughput was reached without maxing out CPU, but because board interface configuration was maxed out
    4. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
