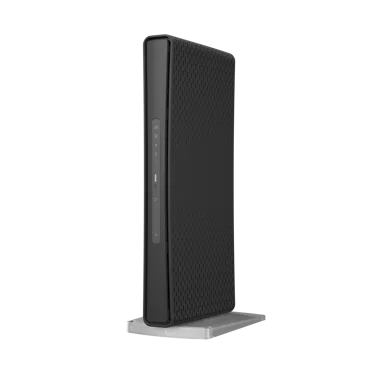

MikroTik Routers and Wireless - Products: hAP ac³ LTE6 kit

Forget about endless searching for the perfect router and scrolling through an eternity of reviews and specifications! We have created a single affordable home access point that has all the features you might need for years to come.

hAP ac³ LTE6 kit features our newest CAT6 LTE modem. It enables carrier aggregation, allowing you to use the LTE connection with speed up to 300 Mbps. It works by using multiple LTE bands at the same time. A huge advantage when there are a lot of LTE users in the area. Depending on the service provider, we have seen Internet speed doubling after switching to CAT6.

With 5 Gigabit Ethernet ports, 256 MB of RAM and quadcore CPU, hAP ac³ LTE6 kit can satisfy even the biggest and most demanding households. There is a full-size USB port that you can use to add extra storage. The new enclosure allows mounting the device vertically or horizontally. A wall mount set is also included.

Stop sharing the frequency with all your neighbors! Strong dual-chain dual-band 2.4/5 GHz wireless for concurrent coverage will solve most interference issues in a crowded environment. This is a must-have these days! You can use the 2.4 GHz channel for older devices and the 5 GHz channel for everything else, since this frequency is less cluttered.

Specifications

Details
Product code	RBD53GR-5HacD2HnD&R11e-LTE6
Architecture	ARM 32bit
CPU	IPQ-4019
CPU core count	4
CPU nominal frequency	716 MHz
Switch chip model	IPQ-4019
Dimensions	251 x 129 x 39 mm
RouterOS license	4
Operating System	RouterOS
Size of RAM	256 MB
Storage size	16 MB
Storage type	FLASH
MTBF	Approximately 200'000 hours at 25C
Tested ambient temperature	-30°C to 60°C
IPsec hardware acceleration	Yes
Suggested price	$219.00

Powering

Details
Number of DC inputs	1 (DC jack)
DC jack input Voltage	12-28 V
Max power consumption	20 W
Max power consumption without attachments	16 W
Cooling type	Passive

Mobile

Details
2G Category	Class12
2G bands	2 (1900MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz)
3G Category	R7 (21Mbps Downlinks, 5.76Mbps Uplink) / R8 (42.2Mbps Downlink, 5.76Mbps Uplink)
3G bands	1 (2100MHz) / 2 (1900MHz) / 5 (850MHz) / 8 (900MHz)
LTE Category	6 (300Mbit/s Downlink, 50Mbit/s Uplink)
LTE FDD bands	1 (2100MHz) / 2 (1900MHz) / 3 (1800MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz) / 5 (850MHz) / 12 (700MHz) / 17 (700MHz) / 25 (1900MHz) / 26 (850MHz)
LTE TDD bands	38 (2600MHz) / 40 (2300MHz) / 39 (1900MHz) / 41n (2500MHz)
TAC	35666210

Wireless specifications

Details
Wireless 2.4 GHz Max data rate	300 Mbit/s
Wireless 2.4 GHz number of chains	2
Wireless 2.4 GHz standards	802.11b/g/n
Antenna gain dBi for 2.4 GHz	3
Wireless 2.4 GHz chip model	IPQ-4019
Wireless 2.4 GHz generation	Wi-Fi 4
Wireless 5 GHz Max data rate	867 Mbit/s
Wireless 5 GHz number of chains	2
Wireless 5 GHz standards	802.11a/n/ac
Antenna gain dBi for 5 GHz	5.5
Wireless 5 GHz chip model	IPQ-4019
Wireless 5 GHz generation	Wi-Fi 5

Ethernet

Details
10/100/1000 Ethernet ports	5

Peripherals

Details
Number of SIM slots	1 Modem (Micro SIM)
MiniPCI-e slots	1
Number of USB ports	1
USB Power Reset	Yes
USB slot type	USB type A
Max USB current (A)	1

Other

Details
Mode button	Yes

Certification & Approvals

Details
Certification	CE, FCC, IC, EAC, ROHS
IP	IP20

Included parts

BrochureOpen

Quick GuideOpen

User ManualOpen

RouterOS current release

Download

Block DiagramOpen

Mounting dimensionsOpen

RouterOS software manualOpen

Declaration of conformityOpen (CE)

FCC Grant of Certification (2.4GHz)Open

FCC Grant of Certification (5GHz)Open

High resolution images

Ethernet test results

RBD53GR-5HacD2HnD&R11e-LTE6		IPQ-4019 1G all port test
Mode	Configuration	1518 byte		512 byte		64 byte
Mode	Configuration	kpps	Mbps	kpps	Mbps	kpps	Mbps
Bridging	none (fast path)	162,5	1973.4	469,9	1924.7	1488,4	762.1
Bridging	25 bridge filter rules	162,5	1973.4	351,2	1438.5	352,1	180.3
Routing	none (fast path)	162,5	1973.4	469,9	1924.7	1488,4	762.1
Routing	25 simple queues	162,5	1973.4	468,6	1919.4	493,4	252.6
Routing	25 ip filter rules	162,5	1973.4	222,8	912.6	227,4	116.4

All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

IPsec test results

RBD53GR-5HacD2HnD&R11e-LTE6		IPQ-4018 IPsec throughput
Mode	Configuration	1400 byte		512 byte		64 byte
Mode	Configuration	kpps	Mbps	kpps	Mbps	kpps	Mbps
Single tunnel	AES-128-CBC + SHA1	37.9	424.5	59	241.7	61.6	31.5
256 tunnels	AES-128-CBC + SHA1	36	403.2	38.5	157.7	39.8	20.4
256 tunnels	AES-128-CBC + SHA256	36	403.2	38.5	157.7	39.8	20.4
256 tunnels	AES-256-CBC + SHA1	34.4	385.3	37.9	155.2	39.8	20.4
256 tunnels	AES-256-CBC + SHA256	34.4	385.3	37.9	155.2	39.8	20.4

All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1400 byte packet sizes
Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..
