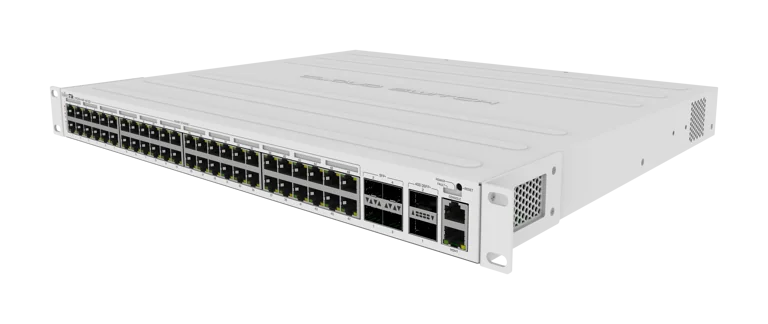

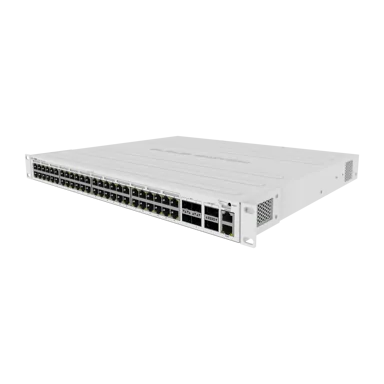

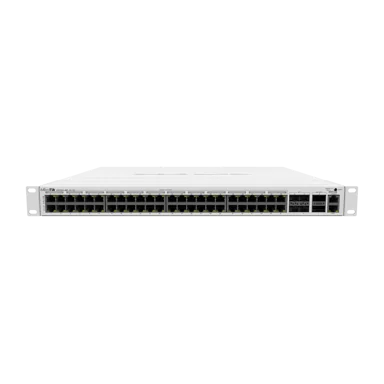

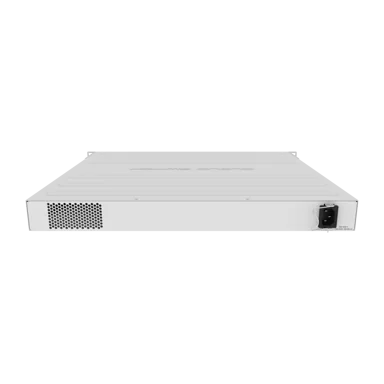

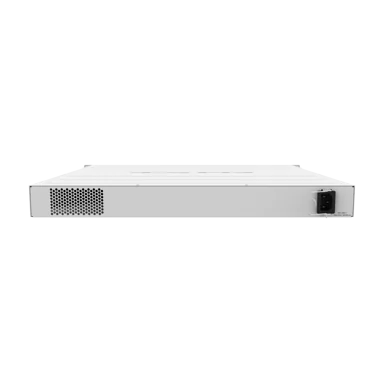

CRS354-48P-4S+2Q+RM
The 48 port champion you’ve been waiting for - now with PoE-out!
If you are looking for a single switch that will put your network setup ahead of the curve and power all the necessary devices – look no further! The new CRS354-48P-4S+2Q+RM is an effective and adaptable rackmount solution for managing networks in the most demanding environments. Unlike many other switches out there, our products are made with the system administrator in mind.
This powerful switch has 48 x 1G RJ45 ports and 4 x 10G SFP+ ports. There are also 2 x 40G QSFP+ ports for extremely fast fiber connections or linking with other 40 Gbps devices. All 48 Ethernet ports offer different power output options: Passive PoE, low voltage PoE, 802.3af/at (Type 1 “PoE” / Type 2 “PoE+”) with auto-sensing, making this switch the easiest solution to power even the largest setups. We have included a mighty power supply that can provide 750 W of power – this switch can handle a lot. And there is a special bracket for easy cable management.
CRS354-48P-4S+2Q+RM is extremely functional, and it has the best price-point on the market – it will make the perfect addition to a professional setup.
The total non-blocking throughput is 168 Gbps, switching capacity is 336 Gbps and the forwarding rate reaches 235 Mpps.
Specification
- Product code CRS354-48P-4S+2Q+RM
- Suggested price $999.00
- Architecture MIPSBE
- CPU QCA9531
- CPU core count 1
- CPU nominal frequency 650 MHz
- Switch chip model 98DX3257
- Dimensions 443 x 382 x 44 mm
- RouterOS license 5
- Operating System RouterOS v7 / SwitchOS
- Size of RAM 128 MB
- Storage size 32 MB
- Storage type FLASH
- MTBF Approximately 200'000 hours at 25C
- Tested ambient temperature -20°C to 60°C
- Number of AC inputs 1
- AC input range 100-240
- Number of PSU slots 1
- Frequency (Hz) 50-60
- Max power consumption 800 W
- Max power consumption without attachments 85 W
- Cooling type 4 fans
- PoE-out ports Ether1-Ether48
- PoE out 802.3af/at
- Low voltage PoE-Out current limit 1000 mA
- High voltage PoE-Out current limit 570 mA
- Total output current 27A at 26V OR 13.2A at 53V
- Total output power 700W
- 10/100 Ethernet ports 1
- 10/100/1000 Ethernet ports 48
- SFP+ ports 4
- Number of 40G QSFP+ ports 2
- Serial console port RJ45
- CPU temperature monitor Yes
- Current Monitor Yes
- PCB temperature monitor Yes
- Voltage Monitor Yes
- Certification CE, EAC, ROHS
- IP IP20
| CRS354-48P-4S+2Q+RM | |||||||
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Switching | Non blocking Layer 2 throughput | 13662.2 | 165914.0 | 39497.2 | 161780.5 | 250148.8 | 128076.2 |
| Switching | Non blocking Layer 2 capacity | 13662.2 | 331828.1 | 39497.2 | 323560.9 | 250148.8 | 256152.4 |
| Switching | Non blocking Layer 1 throughput | 13662.2 | 168100.0 | 39497.2 | 168100.0 | 250148.8 | 168100.0 |
| Switching | Non blocking Layer 1 capacity | 13662.2 | 336200.0 | 39497.2 | 336200.0 | 250148.8 | 336200.0 |
| Routing | none (L3HW) | 9752.9 | 118439.5 | 28195.5 | 115488.7 | 160513.7 | 82183.0 |
| Routing | 25 ip filter rules (Fasttrack L3HW) | 5581.7 | 67784.7 | 14776.3 | 60523.8 | 80145.85 | 41034.6 |
| CRS354-48P-4S+2Q+RM | QCA9531 all port test | ||||||
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 37,4 | 454.2 | 82,8 | 339.1 | 162,5 | 83.2 |
| Bridging | 25 bridge filter rules | 33,8 | 410.5 | 47,8 | 195.8 | 75,6 | 38.7 |
| Routing | none (fast path) | 37,2 | 451.8 | 73,3 | 300.2 | 144,9 | 74.2 |
| Routing | 25 simple queues | 36,4 | 442.0 | 52,4 | 214.6 | 54,4 | 27.9 |
| Routing | 25 ip filter rules | 33,8 | 410.5 | 41,4 | 169.6 | 41,7 | 21.4 |
- All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
- Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
- Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

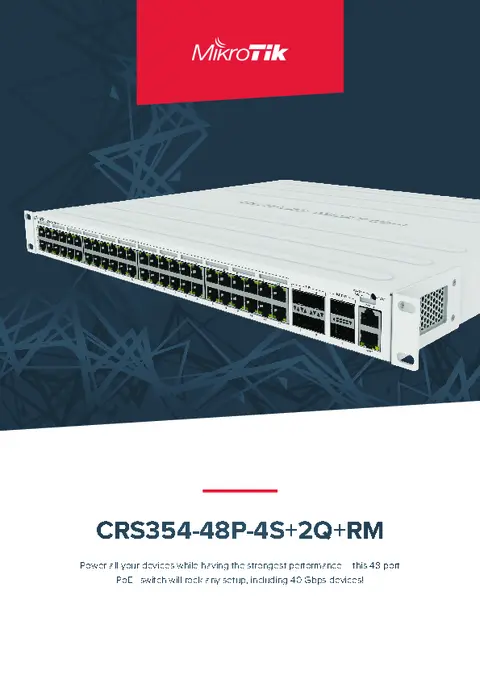

Documents
