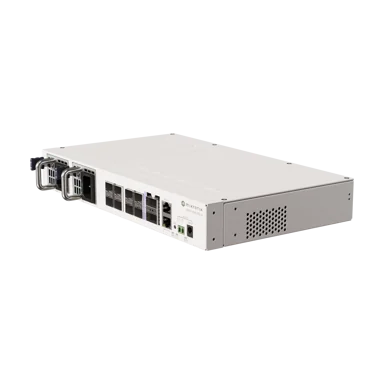

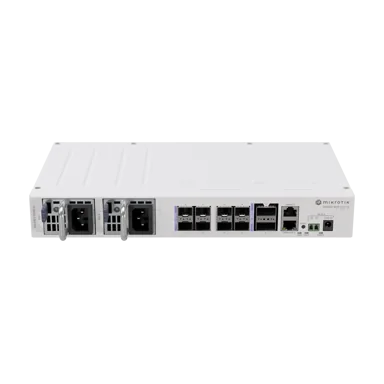

    CRS510-8XS-2XQ-IN A versatile 100 Gigabit switch that offers speed, value, and diverse connectivity options. 2x 100 Gigabit QSFP28 ports, 8x 25 Gigabit SFP28 ports, dual hot-swap power supplies.

    Remember our sensational 100 Gigabit switches – the CRS504 and CRS518? It’s time for another breathtaking addition to the MikroTik 100 Gigabit product family: the versatile CRS510-8XS-2XQ-IN!

    This handy switch has two 100 Gigabit QSFP28 ports and eight 25 Gigabit SFP28 ports. This combination of ports guarantees a perfect fit in almost any setup or server room. Various direct attach cables, active optical cables, copper RJ45’s… CRS510 will keep everything connected! You’ll save time, money, and precious nerve cells with the backward compatibility. This unit supports all sorts of devices – 40 Gigabit, 25 Gigabit, 10 Gigabit, and even older Gigabit connections. And – speaking of nerve cells – we’ve kept the sysadmin’s emergency tool: the good old console port.

    Another reason why we love the new CRS510 (and you will too!) is the performance. It can handle VLANs, ACL, MLAG, Jumbo frames, and so much more – even some L3 hardware offloading! The mighty Marvell Prestera switch chip dominates most tasks without blowing the power consumption up – only up to 27W (without attachments).

    And when it comes to powering – CRS510 is a real joy to work with. It has dual hot-swap power supplies and three other powering options: PoE-in, DC jack, and a 2-pin terminal. No more unnecessary downtimes!

     Send purchase questions

    Specifications

    Details
    Product code CRS510-8XS-2XQ-IN
    Architecture MIPSBE
    CPU QCA9531
    CPU core count 1
    CPU nominal frequency 650 MHz
    Switch chip model 98DX4310
    RouterOS license 5
    Operating System RouterOS v7
    Size of RAM 128 MB
    Storage size 32 MB
    Storage type FLASH
    MTBF Approximately 200'000 hours at 25C
    Tested ambient temperature -40°C to 70°C
    Suggested price $999.00

    Powering

    Details
    Number of AC inputs 2
    AC input range 100-240
    Number of DC inputs 3 (2-pin terminal, DC jack, PoE-IN)
    DC jack input Voltage 36-57 V
    2-pin terminal input Voltage 36-57 V
    Frequency (Hz) 47-63
    Max power consumption 45 W
    Max power consumption without attachments 27 W
    Cooling type 2 fans
    PoE in 802.3 bt
    PoE in input Voltage 42.5-57 V

    Ethernet

    Details
    10/100 Ethernet ports 1

    Fiber

    Details
    Number of 25G SFP28 ports 8
    Number of 100G QSFP28 ports 2

    Peripherals

    Details
    Serial console port RJ45

    Other

    Details
    PCB temperature monitor Yes
    Voltage Monitor Yes

    Certification & Approvals

    Details
    Certification CE, EAC, ROHS
    IP 20

    Included parts

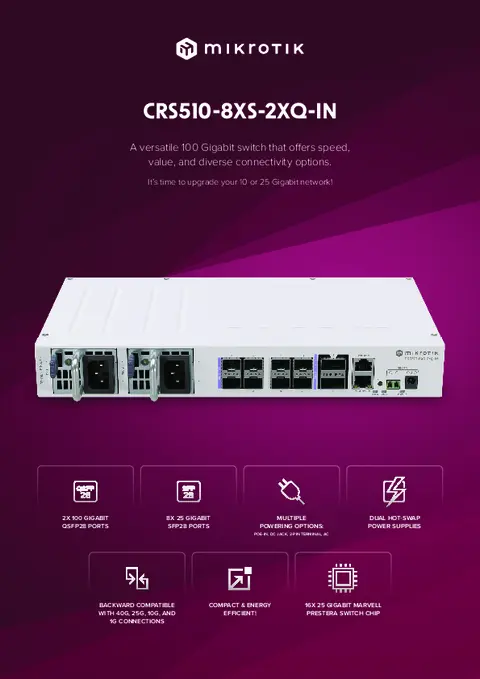

    BrochureOpen
    Quick GuideOpen
    User ManualOpen
    RouterOS current releaseDownload
    Block DiagramOpen
    SFP compatibility listOpen
    RouterOS software manualOpen
    Declaration of conformityOpen (CE)

    High resolution images

    Switching results

    CRS510-8XS-2XQ-IN
    Mode Configuration 1518 byte 512 byte 64 byte
    kpps Mbps kpps Mbps kpps Mbps
    Switching Non blocking Layer 2 throughput 32,517.9 394,897.1 94,008.5 385,058.6 595,386.9 304,838.1
    Switching Non blocking Layer 2 capacity 32,517.9 789,794.3 94,008.5 770,117.3 595,386.9 609,676.2
    Switching Non blocking Layer 1 throughput 32,517.9 400,100.0 94,008.5 400,100.0 595,386.9 400,100.0
    Switching Non blocking Layer 1 capacity 32,517.9 800,200.0 94,008.5 800,200.0 595,386.9 800,200.0

    Ethernet test results

    CRS510-8XS-2XQ-INQCA9531 all port test
    ModeConfiguration1518 byte512 byte64 byte
    kppsMbpskppsMbpskppsMbps
    Bridgingnone (fast path)37,4454.282,8339.1162,583.2
    Bridging25 bridge filter rules33,8410.547,8195.875,638.7
    Routingnone (fast path)37,2451.873,3300.2144,974.2
    Routing25 simple queues36,4442.052,4214.654,427.9
    Routing25 ip filter rules33,8410.541,4169.641,721.4
    1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
    2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
    3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

    The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..
