| Name |
wAP LTE kit
|

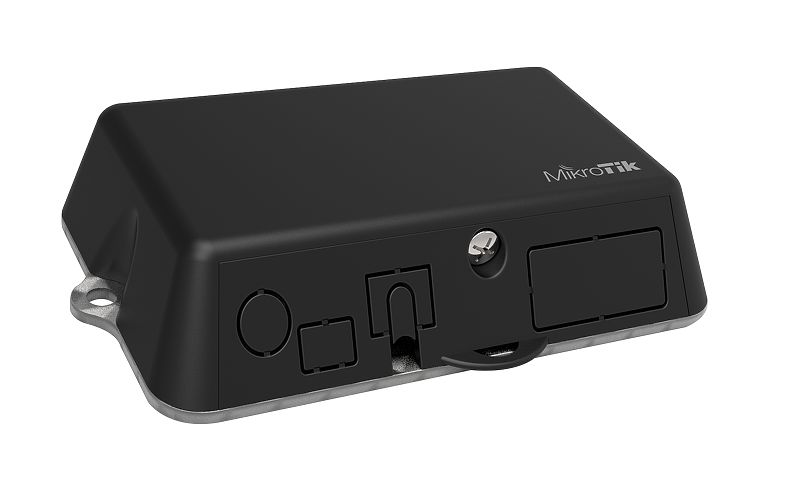

LtAP mini LTE kit
|
wAP ac LTE kit
|
| 10/100 Ethernet ports |
1
|
1
|
N/A
|
| 10/100/1000 Ethernet ports |
N/A
|
N/A
|
2
|
| 2G Category |
Class12
|
Class12
|
Class12
|
| 2G bands |
2 (1900MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz)
|
2 (1900MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz)
|
2 (1900MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz)
|
| 3G Category |
R7 (21Mbps Downlinks, 5.76Mbps Uplink)
|
R7 (21Mbps Downlinks, 5.76Mbps Uplink)
|
R7 (21Mbps Downlinks, 5.76Mbps Uplink)
|
| 3G bands |
1 (2100MHz) / 2 (1900MHz) / 5 (850MHz) / 8 (900MHz)
|
1 (2100MHz) / 2 (1900MHz) / 5 (850MHz) / 8 (900MHz)
|
1 (2100MHz) / 2 (1900MHz) / 5 (850MHz) / 8 (900MHz)
|
| 802.11a |
N/A
|
N/A
|
Yes
|
| 802.11b |
Yes
|
Yes
|
Yes
|
| 802.11g |
Yes
|
Yes
|
Yes
|
| 802.11n |
Yes
|
Yes
|
Yes
|
| Antenna gain |
2
|
1.5
|
2.5
|
| Antenna gain dBi for Wireless 2 |
N/A
|
N/A
|
2.5
|
| Antenna header count |
N/A
|
1
|
1
|
| Architecture |
MIPSBE
|
MIPSBE
|
ARM 32bit
|
| Automotive input Voltage |
9-30 V
|
N/A
|
N/A
|
| CPU |
QCA9531
|
QCA9531
|
IPQ-4018
|
| CPU Threads count |
N/A
|
N/A
|
4
|
| CPU core count |
1
|
1
|
4
|
| CPU nominal frequency |
650 MHz
|
650 MHz
|
716 MHz
|
| Can be used indoors |
Yes
|
Yes
|
Yes
|
| Can be used outdoors |
Yes
|
Yes
|
Yes
|
| Certification |
CE, FCC, IC, E-MARK, EAC, ROHS
|
CE, FCC, IC, E-MARK, EAC, ROHS
|
CE, FCC, IC, EAC, ROHS
|
| Cooling type |
Passive
|
Passive
|
Passive
|
| DC jack input Voltage |
9-30 V
|
8-30 V
|
10-57 V
|
| Dimensions |
185 x 85 x 30 mm
|
139 x 77 x 28,5 mm
|
N/A
|
| GNSS standards |
N/A
|
GPS
|
N/A
|
| GPS RF connector type |
N/A
|
uUFL
|
N/A
|
| GPS interface model |
N/A
|
MT3337V
|
N/A
|
| IP |
IP54
|
IP54
|
IP54
|
| LTE Category |
4 (150Mbps Downlink, 50Mbps Uplink)
|
4 (150Mbps Downlink, 50Mbps Uplink)
|
4 (150Mbps Downlink, 50Mbps Uplink)
|
| LTE FDD bands |
1 (2100MHz) / 2 (1900MHz) / 3 (1800MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz)
|
1 (2100MHz) / 2 (1900MHz) / 3 (1800MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz)
|
1 (2100MHz) / 2 (1900MHz) / 3 (1800MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz)
|
| LTE TDD bands |
38 (2600MHz) / 40 (2300MHz)
|
38 (2600MHz) / 40 (2300MHz)
|
38 (2600MHz) / 40 (2300MHz)
|
| MTBF |
Approximately 100'000 hours at 25C
|
Approximately 200'000 hours at 25C
|
Approximately 100'000 hours at 25C
|
| Max power consumption |
8 W
|
9 W
|
14 W
|
| Max power consumption without attachments |
N/A
|
N/A
|
10 W
|
| MicroUSB input Voltage |
N/A
|
5 V
|
N/A
|
| MiniPCI-e slots |
1
|
1
|
1
|
| Mode button |
N/A
|
Yes
|
N/A
|
| Number of DC inputs |
3
|
3
|
2
|
| Number of SIM slots |
1
|
2
|
1
|
| Operating System |
RouterOS
|
RouterOS
|
RouterOS
|
| PCB temperature monitor |
Yes
|
N/A
|
Yes
|
| PoE in |
Passive PoE
|
802.3af/at
|
802.3af/at
|
| PoE in input Voltage |
9-30 V
|
12-57 V
|
18-57 V
|
| RouterOS license |
4
|
4
|
4
|
| SIM port type |
Mini SIM
|
Mini SIM
|
Micro SIM
|
| SIM port usage |
Modem
|
Modem
|
Modem
|
| Serial console port |
N/A
|
RS232
|
N/A
|
| Size of RAM |
64 MB
|
64 MB
|
128 MB
|
| Storage size |
16 MB
|
16 MB
|
16 MB
|
| Storage type |
FLASH
|
FLASH
|
FLASH
|
| Switch chip model |
N/A
|
N/A
|
IPQ-4018
|
| TAC |
35565409
|
35565409
|
35565409
|
| TX power |
| 2.4 GHz | |
|---|
| TX | RX | | 1MBit/s | 22 | -96 | | 11MBit/s | 22 | -89 | | 6MBit/s | 20 | -93 | | 54MBit/s | 18 | -74 | | MCS0 | 20 | -93 | | MCS7 | 16 | -71 |
|
| 2.4 GHz | |
|---|
| TX | RX | | 1MBit/s | 22 | -96 | | 11MBit/s | 22 | -89 | | 6MBit/s | 20 | -93 | | 54MBit/s | 18 | -74 | | MCS0 | 20 | -93 | | MCS7 | 16 | -71 |
|
| 2.4 GHz | |
|---|
| TX | RX | | 1MBit/s | 22 | -100 | | 11MBit/s | 22 | -94 | | 6MBit/s | 23 | -95 | | 54MBit/s | 19 | -78 | | MCS0 | 23 | -95 | | MCS7 | 18 | -73 | | 5 GHz | |
|---|
| TX | RX | | 6MBit/s | 24 | -95 | | 54MBit/s | 20 | -78 | | MCS0 | 24 | -95 | | MCS7 | 19 | -73 | | MCS9 | 17 | -68 |
|
| Tested ambient temperature |
-40°C to 50°C
|
-40°C to 50°C
|
-30°C to 50°C
|
| Voltage Monitor |
Yes
|
N/A
|
Yes
|
| Wi-Fi generation |
Wi-Fi 4
|
Wi-Fi 4
|
Wi-Fi 5
|
| WiFi speed |
N/A
|
N/A
|
AC1200
|
| Wireless 1 Max data rate |
300 Mbit/s
|
300 Mbit/s
|
300 Mbit/s
|
| Wireless 1 Number of chains |
2
|
2
|
2
|
| Wireless 1 band |
2.4 GHz
|
2.4 GHz
|
2.4 GHz
|
| Wireless 1 generation |
Wi-Fi 4
|
Wi-Fi 4
|
Wi-Fi 4
|
| Wireless 2 Max data rate |
N/A
|
N/A
|
867 Mbit/s
|
| Wireless 2 Number of chains |
N/A
|
N/A
|
2
|
| Wireless 2 band |
N/A
|
N/A
|
5 GHz
|
| Wireless 2 generation |
N/A
|
N/A
|
Wi-Fi 5
|
| Wireless chip model |
QCA9531
|
QCA9531
|
IPQ-4018
|
| Wireless secondary chip model |
N/A
|
N/A
|
IPQ-4018
|
| Wireless secondary standards |
N/A
|
N/A
|
802.11a/n/ac
|
| Wireless standards |
802.11b/g/n
|
802.11b/g/n
|
802.11b/g/n
|
