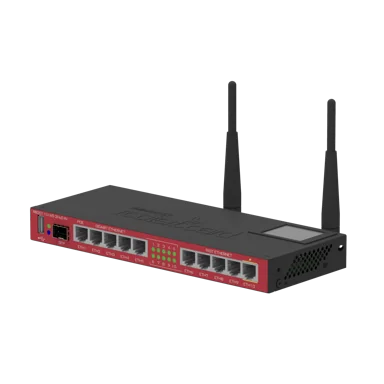

    RB2011UiAS-2HnD-IN 2.4GHz AP, 5x Ethernet, 5x Gigabit Ethernet, SFP cage, USB, LCD, PoE output on Eth10, 600MHz CPU, 128MB RAM

    Discontinued


    The RB2011Ui is a low cost multi port device series. Designed for indoor use, and available in many different cases, with a multitude of options.

    The RB2011 is powered by RouterOS, a fully featured routing operating system which has been continuously improved for fifteen years. Dynamic routing, hotspot, firewall, MPLS, VPN, advanced quality of service, load balancing and bonding, real-time configuration and monitoring - just a few of the vast number of features supported by RouterOS.

    RouterBOARD 2011UiAS-2HnD has most features and interfaces from all our Wireless routers. It’s powered by the new Atheros 600MHz 74K MIPS network processor, has 128MB RAM, five Gigabit LAN ports, five Fast Ethernet LAN ports and SFP cage (SFP module not included!). Also, it features powerful dual chain 2.4Ghz (2312-2732MHz depending on country regulations) 802.11bgn wireless AP, RJ45 serial port, USB port and RouterOS L5 license, as well as desktop case with power supply, two 4dBi Omni antennas and LCD panel- all this for only $129!

    Tested and recommended to use with MikroTik SFP modules: S-85DLC05D, S-31DLC20D and S-35/53LC20D (not included)

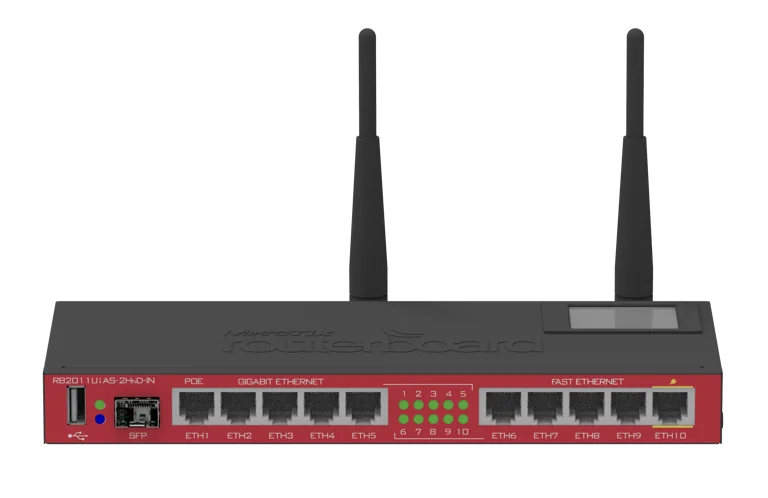

    RouterBOARD 2011UAS-2HnD-IN comes with desktop enclosure, LCD panel and power supply.

    Wall mount kit (product code RBWMK) for network closet is available for purchase as an optional accessory.

    The RB2011Ui also has passive PoE output capability on the last port (ETH10), this means you can power another device just by connecting it over regular Ethernet cable

     Send purchase questions

    Specifications

    Details
    Product code RB2011UiAS-2HnD-IN
    Architecture MIPSBE
    CPU AR9344
    CPU core count 1
    CPU nominal frequency 600 MHz
    Switch chip model AR8327
    Dimensions 214mm x 86mm for PCB
    RouterOS license 5
    Operating System RouterOS
    Size of RAM 128 MB
    Storage size 128 MB
    Storage type NAND
    MTBF Approximately 200'000 hours at 25C
    Tested ambient temperature -40°C to 60°C
    Suggested price $129.00

    Wireless capabilities

    Details
    Wireless 2.4 GHz Max data rate 300 Mbit/s
    Wireless 2.4 GHz number of chains 2
    Wireless 2.4 GHz standards 802.11b/g/n
    Antenna gain dBi for 2.4 GHz 4
    Wireless 2.4 GHz chip model AR9344
    Wireless 2.4 GHz generation Wi-Fi 4

    Ethernet

    Details
    10/100 Ethernet ports 5
    10/100/1000 Ethernet ports 5

    Fiber

    Details
    SFP DDMI Yes
    SFP ports 1

    Peripherals

    Details
    Serial console port RJ45
    Number of USB ports 1
    USB Power Reset Yes
    USB slot type USB type A
    Max USB current (A) 1

    Powering

    Details
    Number of DC inputs 2 (DC jack, PoE-IN)
    DC jack input Voltage 8-30 V
    Max power consumption 11 W
    Cooling type Passive
    PoE in Passive PoE
    PoE in input Voltage 8-30 V

    PoE-out

    Details
    PoE-out ports Ether10
    PoE out Passive PoE
    Max out per port output (input 18-30 V) 510 mA
    Max total out (A) 510 mA

    Certification & Approvals

    Details
    Certification CE, FCC, IC, EAC, ROHS
    IP IP20

    Other

    Details
    PCB temperature monitor Yes
    Voltage Monitor Yes
    Beeper Yes

    Wireless specifications

    2.4 GHzTransmit (dBm)Receive Sensitivity
    1MBit/s30-96
    11MBit/s28-80
    6MBit/s30-96
    54MBit/s27-80
    MCS030-92
    MCS725-73

    Included parts

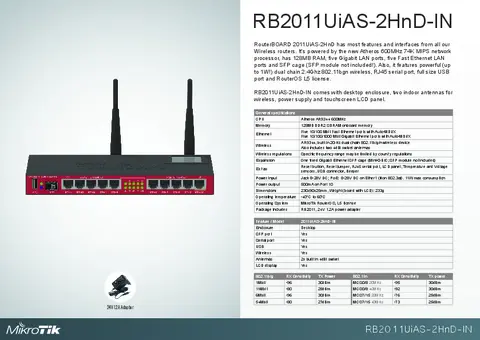

    BrochureOpen
    Quick GuideOpen
    User ManualOpen
    RouterBoot firmware Download
    Block DiagramOpen
    Design file STEPOpen
    SFP compatibility listOpen
    RouterOS software manualOpen
    Declaration of conformityOpen (CE)
    FCC Grant of Certification (2.4GHz)Open

    High resolution images

    Ethernet test results

    RB2011UiAS-2HnD-INr2AR9344 1G&100M all port test
    ModeConfiguration1518 byte512 byte64 byte
    kppsMbpskppsMbpskppsMbps
    Bridgingnone (fast path)122.01,481.6232.0950.3269.6138.0
    Bridging25 bridge filter rules83.61,015.286.0352.387.644.9
    Routingnone (fast path)122.01,481.6210.0860.2226.9116.2
    Routing25 simple queues100.51,220.5103.9425.6106.654.6
    Routing25 ip filter rules56.8689.859.6244.160.531.0
    1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
    2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
    3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

    The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..
