MikroTik Routers and Wireless - Products: FiberBox Plus

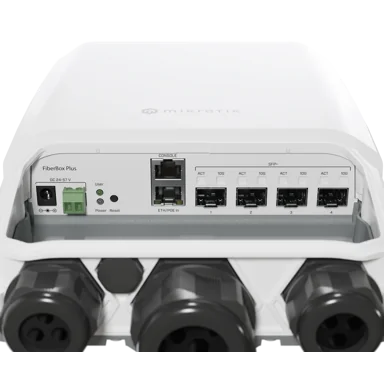

There are two ways to look at the brand new Fiber Box Plus. On the one hand, it’s a massive upgrade of our previous FiberBox devices. This version features a modern ARM CPU, more RAM, and four 10-Gigabit SFP+ ports. Fast and reliable connectivity on a budget. Without the distance limitations of Ethernet. There’s also a Gigabit Ethernet port for management purposes or PoE-in powering. We’ve also included a 2-pin terminal and a standard DC jack, so you have 3 different power options to choose from. FiberBox Plus supports a wide input voltage range of 24-57V. And it is remarkably efficient: maximum power consumption (without attachments) is only 7W.

Another way to look at the new FiberBox Plus – it’s a budget version of the amazing netFiber 9. You can save a lot of money if you don’t need the extra Gigabit SFP ports. It even features the same impressive Marvell 98DX226S switch-chip, so the performance is definitely there!

This rugged outdoor switch is perfect for connecting mast devices. Like the mANTBox 52 or the LHG XL 52. Imagine a huge campsite with several guest houses, a food court, and the owner’s cabin. You can connect all the locations with the FiberBox Plus. One of the fiber connections can be used for the mANTBox base station – to provide general connectivity for the guests. Another connection could go to the owner’s house. And the third could be used in the food court – to connect their payment and inventory servers.

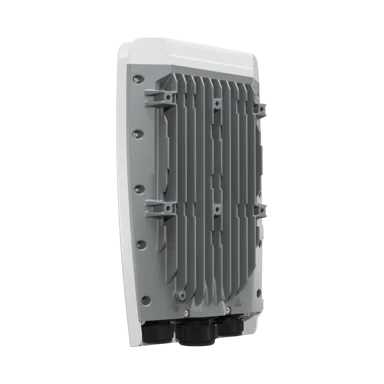

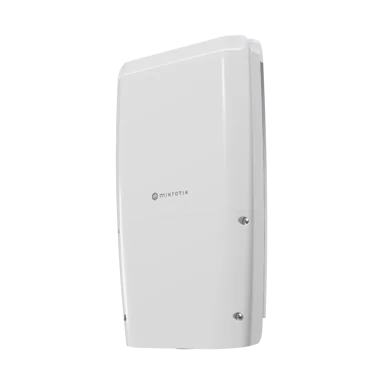

Usually, you would need some kind of a junction box to keep everything safe. But our FiberBox Plus comes with a solid water resistance rating of IP66. That means protection against powerful water jets from any direction. So in the campsite scenario, your setup is not only safe from all kinds of crazy weather, but it can also withstand young pranksters with a garden hose. Not to mention damp basements, elevator shafts, seaport infrastructure, and so on. With FiberBox Plus, you have nothing to worry about.

Specifications

Details
Product code	CRS305-1G-4S+OUT
Architecture	ARM 32bit
CPU	98DX226S
CPU core count	2
CPU nominal frequency	800 MHz
Switch chip model	98DX226S
RouterOS license	5
Operating System	RouterOS v7 / SwOS
Size of RAM	256 MB
Storage size	16 MB
Storage type	FLASH
MTBF	Approximately 200'000 hours at 25C
Tested ambient temperature	-40°C to 70°C
Suggested price	$229.00

Powering

Details
Number of DC inputs	3 (DC jack, PoE-IN, 2-pin terminal)
DC jack input Voltage	24-57 V
2-pin terminal input Voltage	24-57 V
Max power consumption	17 W
Max power consumption without attachments	7 W
Cooling type	Passive
PoE in	802.3af/at
PoE in input Voltage	42-57 V

Ethernet

Details
10/100/1000 Ethernet ports	1

Fiber

Details
SFP+ ports	4

Peripherals

Details
Serial console port	RJ45

Other

Details
CPU temperature monitor	Yes

Certification & Approvals

Details
Certification	CE, EAC, ROHS
IP	IP66

Included parts

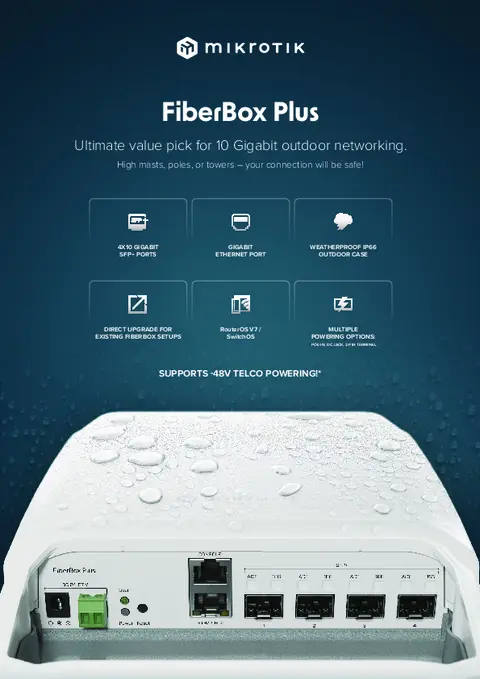

BrochureOpen

Quick GuideOpen

User ManualOpen

RouterOS current releaseDownload

Block DiagramOpen

MountingOpen

SFP compatibility listOpen

RouterOS software manualOpen

Declaration of conformityOpen (CE)

High resolution images

Switching results

CRS305-1G-4S+OUTr2
Mode	Configuration	1518 byte		512 byte		64 byte
Mode	Configuration	kpps	Mbps	kpps	Mbps	kpps	Mbps
Switching	Non blocking Layer 2 throughput	3,332.2	40,466.8	9,633.5	39,458.6	61,011.9	31,238.1
Switching	Non blocking Layer 2 capacity	3,332.2	80,933.7	9,633.5	78,917.3	61,011.9	62,476.2
Switching	Non blocking Layer 1 throughput	3,332.2	41,000.0	9,633.5	41,000.0	61,011.9	41,000.0
Switching	Non blocking Layer 1 capacity	3,332.2	82,000.0	9,633.5	82,000.0	61,011.9	82,000.0

Ethernet test results

CRS305-1G-4S+OUTr2		98DX226 all port test
Mode	Configuration	1518 byte		512 byte		64 byte
Mode	Configuration	kpps	Mbps	kpps	Mbps	kpps	Mbps
Bridging	none (fast path)	104,1	1264.2	119,1	487.8	141,1	72.2
Bridging	25 bridge filter rules	59,7	725.0	59,7	244.5	70,4	36.0
Routing	none (fast path)	104,1	1264.2	129,7	531.3	143,5	73.5
Routing	25 simple queues	56,7	688.6	57,9	237.2	65,2	33.4
Routing	25 ip filter rules	44,1	535.6	45,6	186.8	48,4	24.8

All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..
