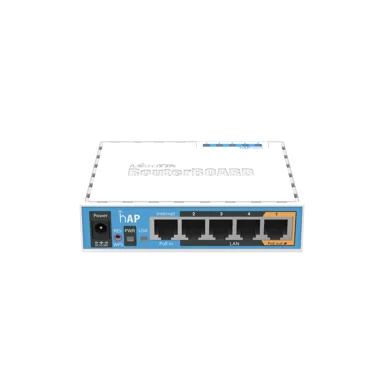

    hAP 2.4GHz AP, Five Ethernet ports, PoE-out on port 5, USB for 3G/4G support

    This small home access point is the perfect device for homes or small offices where all you need is a wireless AP and a few wired devices connected. Based on our popular RB951-2n, the new hAP is an improvement in many areas.

    The device can be powered from the power jack or with passive PoE from a PoE injector. The power adapter is included.

    hAP provides PoE output function for port #5 - it can power other PoE capable devices with the same voltage as applied to the unit. Maximum load on the port is 500mA.

    The hAP is preconfigured, so all you need to do, is plug in the internet cable, the power, and start using the internet by connecting to the MikroTik network.

     Send purchase questions

    Specifications

    Details
    Product code RB951Ui-2nD
    Architecture MIPSBE
    CPU QCA9531
    CPU core count 1
    CPU nominal frequency 650 MHz
    Switch chip model QCA9531
    Dimensions 113 x 89 x 28mm
    RouterOS license 4
    Operating System RouterOS
    Size of RAM 64 MB
    Storage size 16 MB
    Storage type FLASH
    MTBF Approximately 100'000 hours at 25C
    Tested ambient temperature -30°C to 70°C
    Suggested price $45.00

    Wireless capabilities

    Details
    Wireless 2.4 GHz Max data rate 300 Mbit/s
    Wireless 2.4 GHz number of chains 2
    Wireless 2.4 GHz standards 802.11b/g/n
    Antenna gain dBi for 2.4 GHz 1.5
    Wireless 2.4 GHz chip model QCA9531
    Wireless 2.4 GHz generation Wi-Fi 4

    Ethernet

    Details
    10/100 Ethernet ports 5

    Peripherals

    Details
    Number of USB ports 1
    USB Power Reset Yes
    USB slot type USB type A
    Max USB current (A) 1

    Powering

    Details
    Number of DC inputs 2 (PoE-IN, DC jack)
    DC jack input Voltage 10-28 V
    Max power consumption 5 W
    Cooling type Passive
    PoE in Passive PoE
    PoE in input Voltage 10-28 V

    PoE-out

    Details
    PoE-out ports Ether5
    PoE out Passive PoE
    Max out per port output (input 18-30 V) 500 mA
    Max total out (A) 500 mA

    Certification & Approvals

    Details
    Certification CE, FCC, IC, EAC, ROHS
    IP IP20

    Wireless specifications

    2.4 GHzTransmit (dBm)Receive Sensitivity
    1MBit/s22-96
    11MBit/s22-89
    6MBit/s20-93
    54MBit/s18-74
    MCS020-93
    MCS716-71

    Included parts

    BrochureOpen
    Quick GuideOpen
    User ManualOpen
    Block DiagramOpen
    RouterOS software manualOpen
    Declaration of conformityOpen (CE)
    Declaration of conformityOpen (FCC)

    High resolution images

    Ethernet test results

    RB951Ui-2nDQCA9531 (650Mhz) 100M all port test
    ModeConfiguration1518 byte512 byte64 byte
    kppsMbpskppsMbpskppsMbps
    Bridgingnone (fast path)40.6493.0117.4480.9217.0111.1
    Bridging25 bridge filter rules40.6493.070.1287.170.936.3
    Routingnone (fast path)40.6493.0117.4480.9200.8102.8
    Routing25 simple queues40.6493.079.6326.090.846.5
    Routing25 ip filter rules40.6493.042.2172.843.222.1
    1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
    2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
    3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

    The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..

    Download: Full CE declaration (PDF)

    Information about hAP

    [BG] Bulgarian С настоящето, "Mikrotikls SIA", декларира, че hAP е в съответствие със съществените изисквания и другитеприложими разпоредби на Директива 2014/53/EC.
    [CZ] Czech "Mikrotikls SIA" tímto prohlašuje, že hAP splňuje základní požadavky a všechna příslušná ustanoveni Směrnice 2014/53/ES.
    [DK] Danish Undertegnede "Mikrotikls SIA" erklærer herved, at følgende udstyr hAP overholder de væsentlige krav og øvrige relevante krav i direktiv 2014/53/EF.
    [DE] German Hiermit erklärt "Mikrotikls SIA", dass sich das Gerät hAP in Übereinstimmung mit den grundlegenden Anforderungen und den übrigen einschlägigen Bestimmungen der Richtlinie 2014/53/EG befindet.
    [EE] Estonian Käesolevaga kinnitab "Mikrotikls SIA" seadme hAP vastavust direktiivi 2014/53/EÜ põhinõuetele ja nimetatud direktiivist tulenevatele teistele asjakohastele sätetele.
    [GR] Greek ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ Ο ΚΑΤΑΣΚΕΥΑΣΤΗΣ "Mikrotikls SIA" ΔΗΛΩΝΕΙ ΟΤΙ hAP ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩΔΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΓΙΑΣ 2014/53/ΕΚ
    [EN] English Hereby, "Mikrotikls SIA", declares that this hAP is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EC.
    [ES] Spanish Por la presente, "Mikrotikls SIA", declara que este hAP cumple con los requisitos esenciales y otras exigencias relevantes de la Directiva 2014/53/EC.
    [IT] Italian Con la presente "Mikrotikls SIA" dichiara che questo hAP è conforme ai requisiti essenziali ed alle altre disposizioni pertinenti stabilite dalla direttiva 2014/53/CE.
    [LV] Latvian Ar šo "Mikrotikls SIA" deklarē, ka hAP atbilst Direktīvas 2014/53/EK būtiskajām prasībām un citiem ar to saistītajiem noteikumiem.
    [LT] Lithuanian Šiuo "Mikrotikls SIA" deklaruoja, kad šis hAP atitinka esminius reikalavimus ir kitas 2014/53/EB Direktyvos nuostatas
    [HU] Hungarian A "Mikrotikls SIA" ezzennel kijelenti, hogy a hAP típusú beren-dezés teljesíti az alapvető követelményeket és más 2014/53/EK irányelvben meghatározott vonatkozó rendelkezéseket.
    [NL] Dutch Hierbij verklaart "Mikrotikls SIA" dat het toestel l hAP in overeenstemming is met de essentiële eisen en de andere relevante bepalin-gen van richtlijn 2014/53/EG.
    [PL] Polish Niniejszym "Mikrotikls SIA" deklaruje że hAP jest zgodny z zasadniczymi wymaganiami i innymi właściwymi postanowieniami Dyrektywy 2014/53/EC.
    [PT] Portuguese Eu, "Mikrotikls SIA", declaro que o hAP cumpre os requisitos essenciais e outras provisões relevantes da Directiva 2014/53/EC.
    [RO] Romanian Prin prezenta, "Mikrotikls SIA", declară că aparatul hAP este în conformitate cu cerinţele esenţiale şi cu alte prevederi pertinente ale Directivei 2014/53/CE.
    [SK] Slovak "Mikrotikls SIA" týmto vyhlasuje, že hAP spĺňa základné požiadavky a všetky príslušné ustanovenia Smernice 2014/53/ES.
    [SI] Slovenian "Mikrotikls SIA" izjavlja, da je ta hAP v skladu z bistvenimi zahtevami in drugimi relevantnimi določili direktive 2014/53/ES.
    [FI] Finish "Mikrotikls SIA" vakuuttaa täten että hAP tyyppinen laite on direktiivin 2014/53/EY oleellisten vaatimusten ja sitä koskevien direktiivin muiden ehtojen mukainen.
    [SE] Swedish Denna utrustning är i överensstämmelse med de väsentliga kraven och andra relevanta bestämmelser i direktiv 2014/53/EC.
    [NO] Norwegian "Mikrotikls SIA", Erklærer herved at hAP er i samsvar med de grunnleggende krav og øvrige relevante krav i direktiv 2014/53/EF.
    ×
