Traffic Flow

Document revision:1.1 (February 6, 2008, 1:40 GMT)
Applies to: V3.0

General Information

Specifications

Packages required: system
License required: Level1
Submenu level: /ip traffic-flow
Hardware usage: Not significant

Related Documents

Description

MikroTik Traffic-Flow is a system that provides statistic information about packets which pass through the router. Besides network monitoring and accounting, system administrators can identify various problems that may occur in the network. With help of Traffic-Flow, it is possible to analyze and optimize the overall network performance. As Traffic-Flow is compatible with Cisco NetFlow, it can be used with various utilities which are designed for Cisco's NetFlow.

Traffic-Flow supports the following NetFlow formats:

General Configuration

Description

This section describes the basic configuration of Traffic-Flow.

Property Description

active-flow-timeout (time; default: 30m) - maximum life-time of a flow

cache-entries (1k | 2k | 4k | 8k | 16k | 32k | 64k | 128k | 256k | 512k; default: 1k) - number of flows which can reside in the router's memory simultaneously

enabled (yes | no) - whether to enable traffic-flow service or not

inactive-flow-timeout (time; default: 15s) - how long to keep the flow active, if it is idle

interfaces (name) - names of those interfaces which will be used to gather statistics for traffic-flow. To specify more than one interface, separate them with a comma (",")

Traffic-Flow Target

Submenu level: /ip traffic-flow target

Description

With Traffic-Flow targets we specify those hosts which will gather the Traffic-Flow information from router.

Property Description

address (IP address:port) - IP address and UDP port of the host which receives Traffic-Flow statistics packets from the router

v9-template-refresh (integer; default: 20) - number of packets after which the template is sent to the receiving host (only for NetFlow version 9)

v9-template-timeout - after how long to send the template, if it has not been sent

version (1 | 5 | 9) - which version format of NetFlow to use

Application Examples

Traffic-Flow Example

This example shows how to configure Traffic-Flow on a router

  1. Enable Traffic-Flow on the router:

    [admin@MikroTik] ip traffic-flow> set enabled=yes
[admin@MikroTik] ip traffic-flow> print
                enabled: yes
             interfaces: all
          cache-entries: 1k
    active-flow-timeout: 30m
  inactive-flow-timeout: 15s
[admin@MikroTik] ip traffic-flow>

  2. Specify IP address and port of the host, which will receive Traffic-Flow packets:

    [admin@MikroTik] ip traffic-flow target> add address=192.168.0.2:2055 \
\... version=9
[admin@MikroTik] ip traffic-flow target> print
Flags: X - disabled
 #   ADDRESS               VERSION
 0   192.168.0.2:2055      9
[admin@MikroTik] ip traffic-flow target>

    Now the router starts to send packets with Traffic-Flow information.

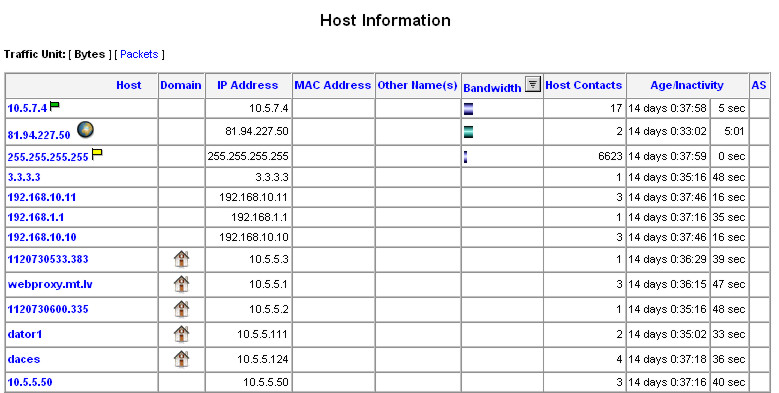

Some screenshots from NTop program, which has gathered Traffic-Flow information from our router and displays it in nice graphs and statistics. For example, where what kind of traffic has flown:

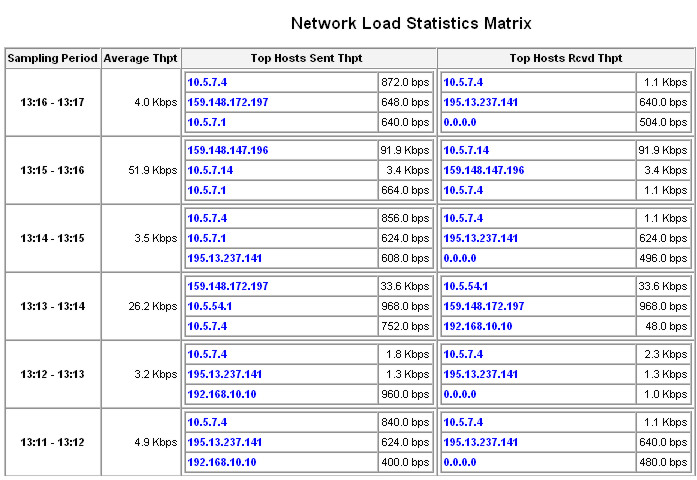

Top three hosts by upload and download each minute:

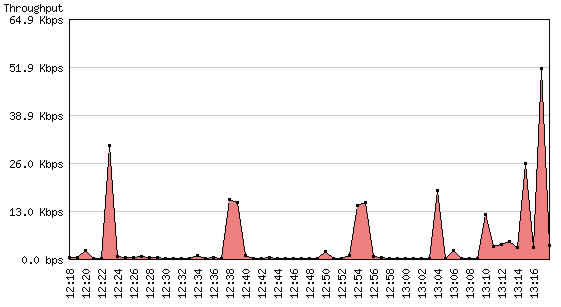

Overall network load each minute:

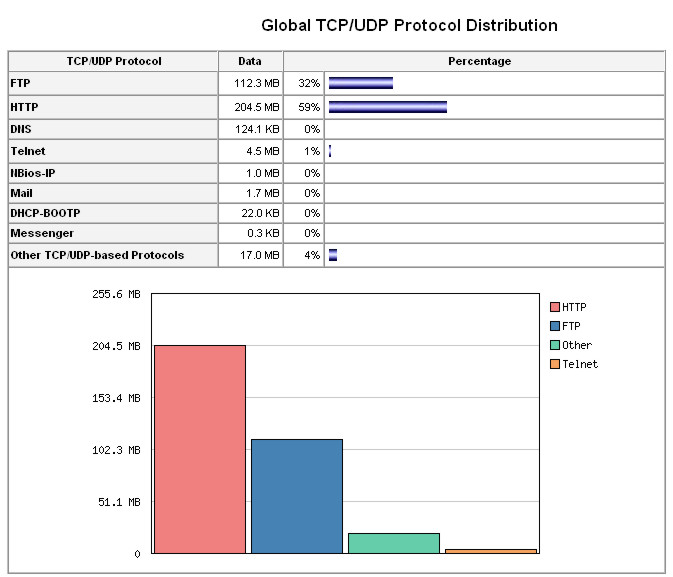

Traffic usage by each protocol:
