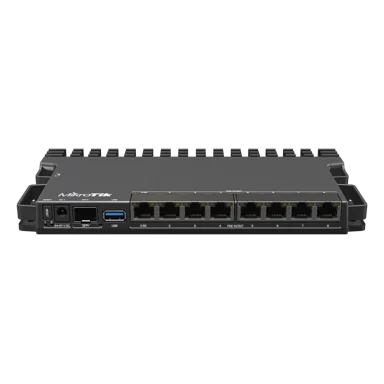

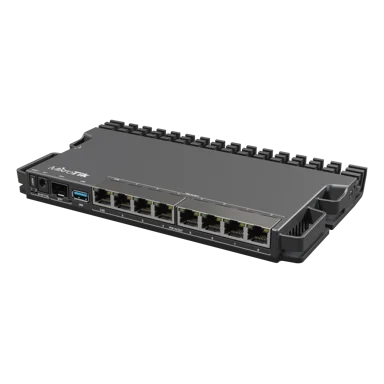

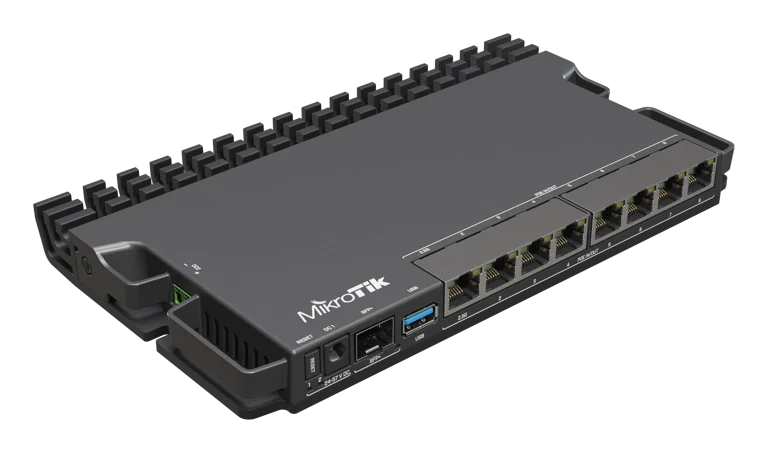

This version of the RB5009 has all the bells and whistles of the previous model: Gigabit Ethernet, 2.5 Gigabit Ethernet, and a 10 Gigabit SFP+ cage for fiber connectivity. It has the speed, the power, and the durability. But this time, we have added PoE-in & PoE-out on all eight Ethernet ports. Combined with the 2-pin connector and the DC jack, you’re getting 10 separate ways of powering. Dual redundant power supplies would usually take your uninterrupted uptime to the next level. RB5009UPr+S+IN takes it one step above that!

All power options support a wide voltage range of 24 – 57 V. However, you can not mix the voltages. If you’re using PoE-out to power other devices, the board will choose the source with the highest voltage (DC jack or the 2-pin connector) to power those.

Each PoE-out port can supply up to 25W of power. All the ports combined are limited to 130W, which should be enough for most setups. You can specify maximum available power from your power sources manually, if necessary. When it comes to PoE-out features, the new RB5009 can trade blows with our legendary PoE switches: CRS354 & CRS328. In the smallest possible form-factor and for the best price on the market!

So what exactly happens if there is a problem with one of your power sources? Here’s a quick example: you have 24V on the DC jack, 48V on the 2-pin connector, and 57V on the PoE-in. The board itself gets powered by the highest voltage input – the PoE-in. If there’s a problem, RB5009 will fall back to the second highest voltage - the 2-pin connector. And if that fails – there’s the 24V option on the DC jack.

What about the PoE-out devices? Once again – the highest voltage wins. PoE-out devices will draw power from the 48V source on the 2-pin connector. If that fails – the 24V on the DC jack come into play. The board will always reserve 20 watts to power itself. If there is not enough power for all the PoE-out ports, it will start disabling the ones with the lowest priority. You can set the port priority manually.

This tiny form-factor shines anywhere: from confined research facilities and offices to huge corporate server rooms. And don’t forget that you can mount FOUR of these routers in a single 1U rackmount space

With the new RB5009, we want to empower all the small and medium ISPs that are always on the lookout for the most cost-effective and robust solutions. It is a perfect addition to our previous GPEN devices – a line of products designed to replace the expensive GPON solutions.

With so many powering options and a durable metallic case, the new RB5009 redefines affordable reliability.

Specifications

Details
Product code	RB5009UPr+S+IN
Architecture	ARM 64bit
CPU	88F7040
CPU core count	4
CPU nominal frequency	350-1400 (auto) MHz
Switch chip model	88E6393
RouterOS license	5
Operating System	RouterOS v7
Size of RAM	1 GB
Storage size	1 GB
Storage type	NAND
MTBF	Approximately 200'000 hours at 25C
Tested ambient temperature	-40°C to 60°C
IPsec hardware acceleration	Yes
Suggested price	$299.00

Powering

Details
Number of DC inputs	3 (DC jack, 2-pin terminal, PoE-IN)
DC jack input Voltage	24-57 V
2-pin terminal input Voltage	24-57 V
Max power consumption	150 W
Max power consumption without attachments	16 W
Cooling type	Passive
PoE in	802.3af/at (ether1), Mode B (ether2-ether8)
PoE in input Voltage	24-57 V

PoE-out

Details
PoE-out ports	Ether1-Ether8
PoE out	802.3af/at
Max out per port output (input 18-30 V)	900 mA
Max out per port output (input 30-57 V)	440 mA
Max total out (A)	2.59 A
Total output current	2.28
Total output power	130

Ethernet

Details
10/100/1000 Ethernet ports	7
Number of 1G Ethernet ports with Reverse PoE (PoE-in)	7
Number of 2.5G Ethernet ports	1
Number of 2.5G Ethernet ports with Reverse PoE (PoE-in)	1

Fiber

Details
SFP+ ports	1

Peripherals

Details
Number of USB ports	1
USB Power Reset	Yes
USB slot type	USB 3.0 type A
Max USB current (A)	1.5

Other

Details
CPU temperature monitor	Yes
Current Monitor	Yes
PCB temperature monitor	Yes
Voltage Monitor	Yes

Certification & Approvals

Details
Certification	CE, EAC, ROHS
IP	20

Included parts

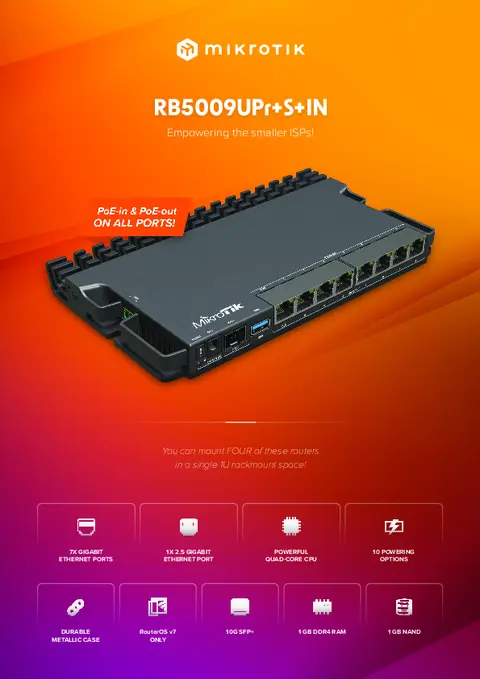

BrochureOpen

Quick GuideOpen

User ManualOpen

RouterOS current releaseDownload

Block DiagramOpen

DimensionsOpen

SFP compatibility listOpen

RouterOS software manualOpen

Declaration of conformityOpen (CE)

High resolution images

Ethernet test results

RB5009UPr+S+IN		88F7040 all port test
Mode	Configuration	1518 byte		512 byte		64 byte
Mode	Configuration	kpps	Mbps	kpps	Mbps	kpps	Mbps
Bridging	none (fast path)	811.2	9851.4	2332	9551.9	5768.4	3138
Bridging	25 bridge filter rules	811.2	9851.4	1238.3	5072.2	1235.6	672.2
Routing	none (fast path)	811.2	9851.4	2332	9551.9	4969.4	2703.3
Routing	25 simple queues	811.2	9851.4	1126	4612	1095	595.7
Routing	25 ip filter rules	771.2	9365.6	755.9	3096.2	761	414

All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

IPsec test results

RB5009UPr+S+IN		88F7040 IPsec throughput
Mode	Configuration	1400 byte		512 byte		64 byte
Mode	Configuration	kpps	Mbps	kpps	Mbps	kpps	Mbps
Single tunnel	AES-128-CBC + SHA1	120.9	1354.1	119.4	489.1	124.3	63.6
256 tunnels	AES-128-CBC + SHA1	126.5	1416.8	125.3	513.2	120.3	61.6
256 tunnels	AES-128-CBC + SHA256	126.5	1416.8	125.3	513.2	120.3	61.6
256 tunnels	AES-256-CBC + SHA1	125.8	1409	123.2	504.6	114.3	58.5
256 tunnels	AES-256-CBC + SHA256	125.8	1409	123.2	504.6	114.3	58.5

All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1400 byte packet sizes
Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..
