MikroTik Routers and Wireless - Products: netPower Lite 7R

With netPower Lite 7R switch you can forget about expensive GPON base stations and optical splitters. This switch is a part of our GPEN concept – aimed to bring the speed and versatility of fiber networking while using the advantages of Ethernet. It is an easy to deploy, low-cost way for any ISP to deliver the Internet to individual apartments.

With this switch you won’t have to worry about power issues, as there are many options. netPower Lite 7R has 7 reverse PoE ports. Depending on your setup, netPower can draw the necessary power even from a single client! Ethernet port 8 can power other PoE capable devices with the same voltage as applied to the unit. There is also a DC jack and a 2-pin terminal for alternative powering.

The outdoor enclosure allows you to install this switch in all kinds of environments – from damp attics to elevator shafts and different poles with hose clamps. netPower Lite 7R has a non-blocking throughput of 28 Gbps, switching capacity of 56 Gbps and forwarding rate of 41.7 Mpps.

Specifications

Details
Product code	CSS610-1Gi-7R-2S+OUT
Switch chip model	88E6193X

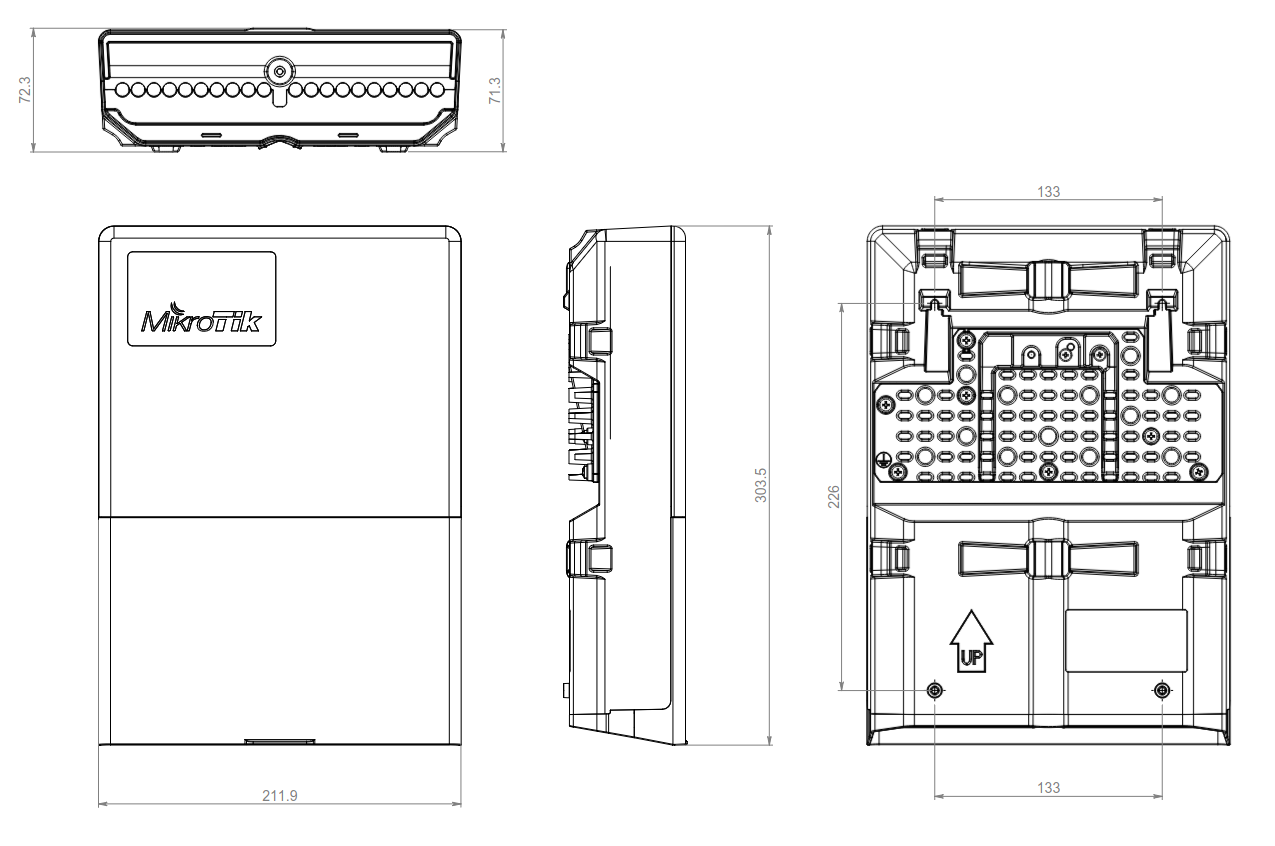

Dimensions	304 x 212 x 71 mm
Operating System	SwitchOS Lite
Storage size	64 KB
Storage type	FLASH
MTBF	Approximately 200'000 hours at 25C
Tested ambient temperature	-40°C to 70°C
Suggested price	$139.00

Powering

Details
Number of DC inputs	3 (2-pin terminal, DC jack, PoE-IN)
DC jack input Voltage	12-57 V
2-pin terminal input Voltage	12-57 V
Max power consumption	29 W
Max power consumption without attachments	7 W
Cooling type	Passive
PoE in	Passive PoE
PoE in input Voltage	12-57 V

PoE-out

Details
PoE-out ports	Ether8
PoE out	Passive PoE
Max out per port output (input 18-30 V)	600 mA
Max out per port output (input 30-57 V)	450 mA
Max total out (A)	600 mA

Ethernet

Details
10/100/1000 Ethernet ports	8
Number of 1G Ethernet ports with Reverse PoE (PoE-in)	7
Number of 1G Ethernet ports with PoE-out	1

Fiber

Details
SFP+ ports	2

Certification & Approvals

Details
Certification	CE, EAC, ROHS
IP	IP54

Included parts

BrochureOpen

Quick GuideOpen

User ManualOpen

SFP compatibility listOpen

Declaration of conformityOpen (CE)

High resolution images

Switching results

CSS610-1Gi-7R-2S+OUT
Mode	Configuration	1518 byte		512 byte		64 byte
Mode	Configuration	kpps	Mbps	kpps	Mbps	kpps	Mbps
Switching	Non blocking Layer 2 throughput	2,275.7	27,635.9	6,578.9	26,947.4	41,666.7	21,333.3
Switching	Non blocking Layer 2 capacity	2,275.7	55,271.8	6,578.9	53,894.7	41,666.7	42,666.7
Switching	Non blocking Layer 1 throughput	2,275.7	28,000.0	6,578.9	28,000.0	41,666.7	28,000.0
Switching	Non blocking Layer 1 capacity	2,275.7	56,000.0	6,578.9	56,000.0	41,666.7	56,000.0
